Front Floor Console Flood Lamp Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

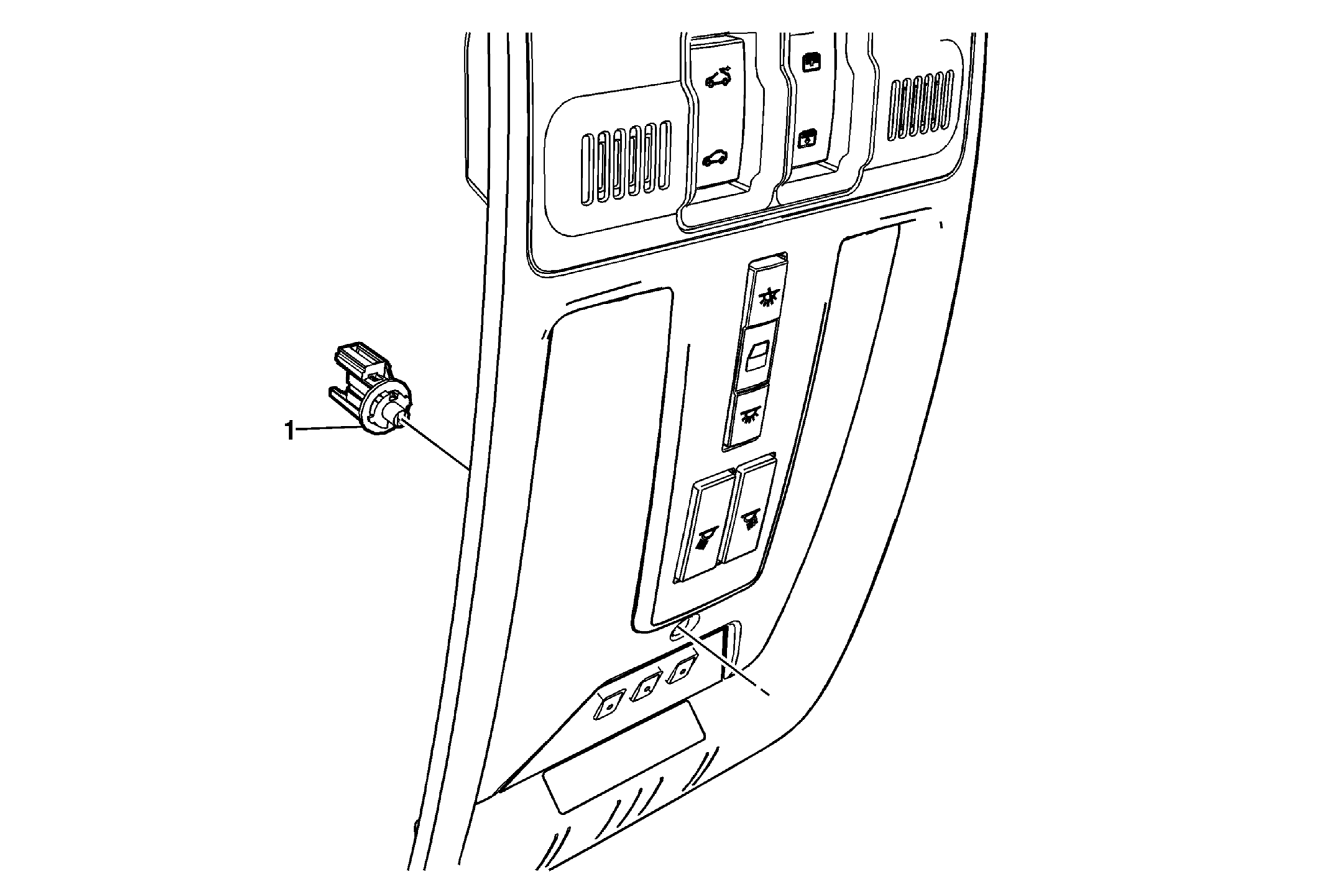

Fig 1: Identifying Front Floor Console Flood Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the roof console. Refer to Roof Console Replacement .
1	Front Floor Console Flood Lamp Procedure: Disconnect electrical connector.
