WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

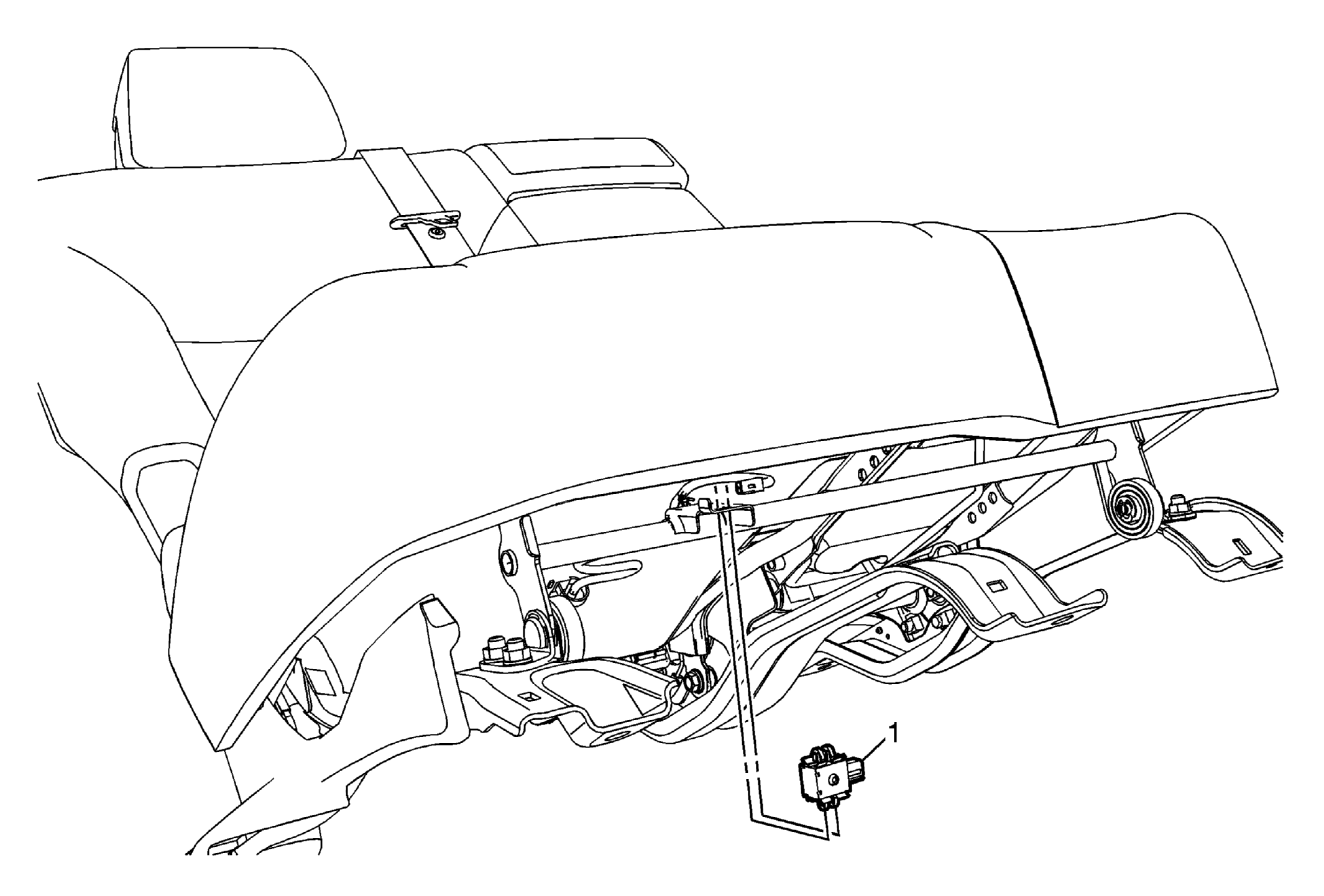

Fig 1: Identifying Front Seat Back Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Front Seat Back Courtesy Lamp
Procedure
Disconnect the electrical connector.
Squeeze the bottom tabs together and push up to remove.
