Front Side Door Warning Lamp Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

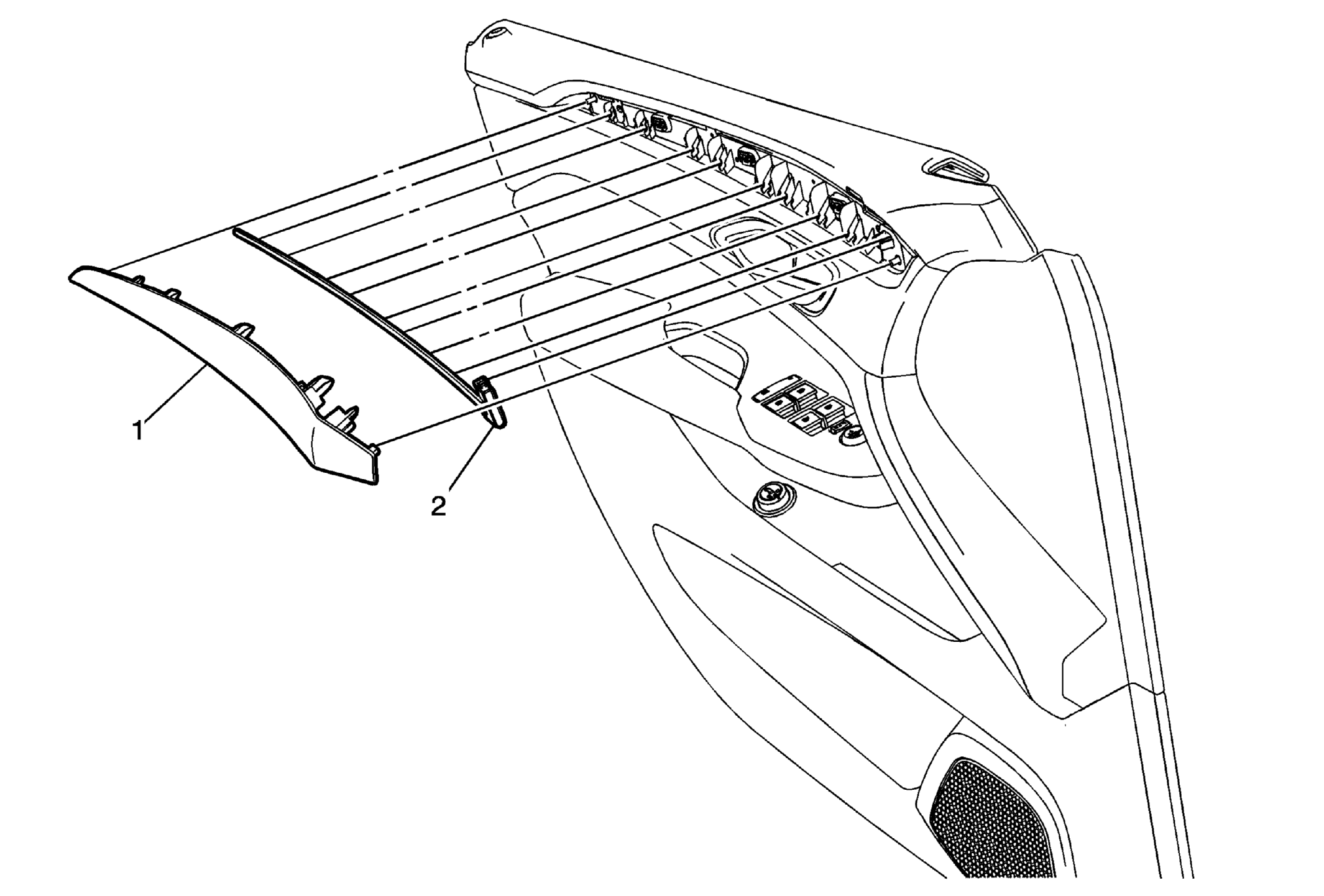

Fig 1: View Of Front Side Door Warning Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front side door trim panel. Refer to Front Side Door Trim Replacement
1	Front Side Door Applique Refer to Front Side Door Trim Panel Finish Panel Applique Replacement .
2	Front Side Door Warning Lamp Procedure: Disconnect the electrical connector.
