Interior Lights Schematics

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

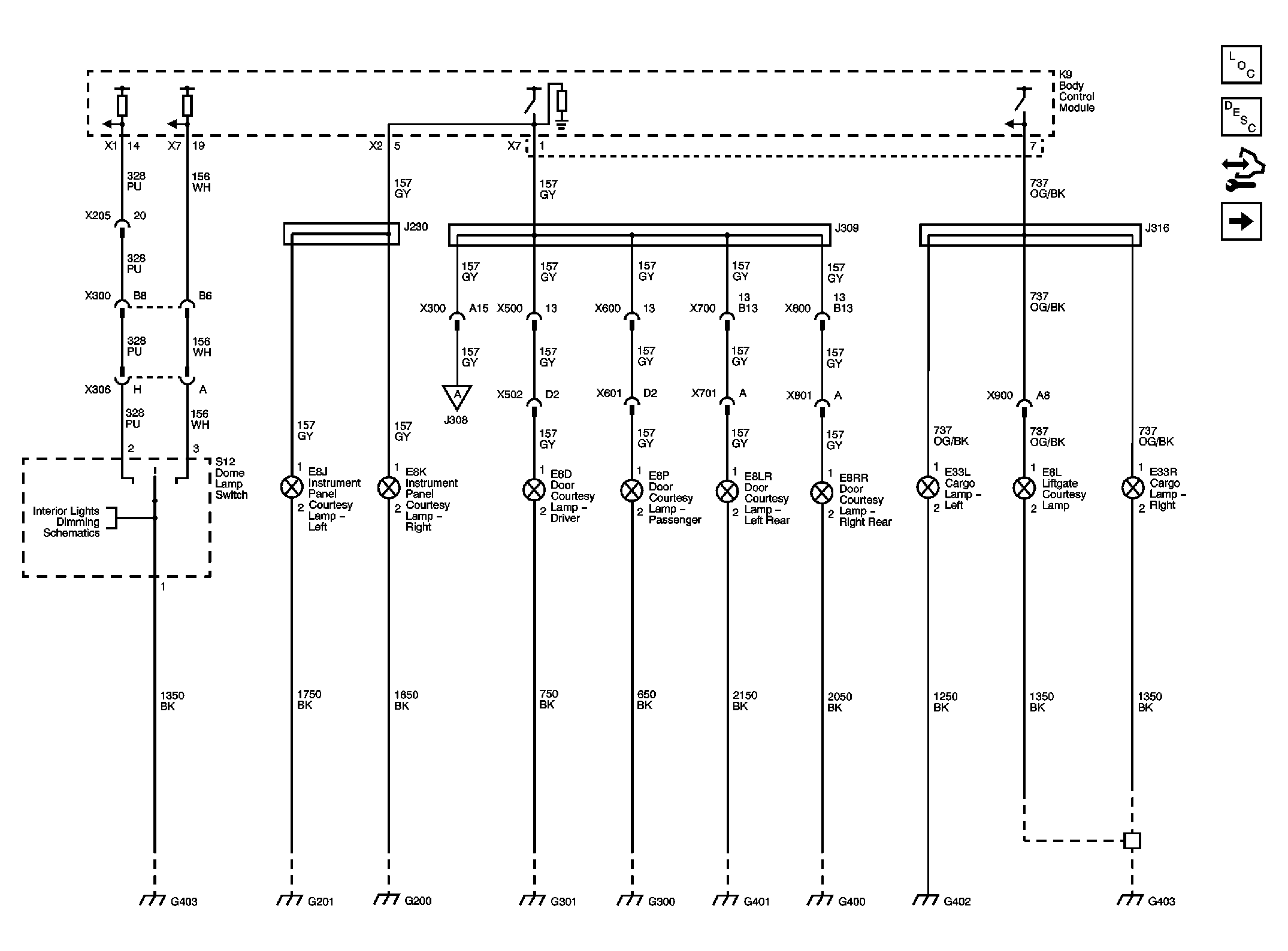

Fig 1: Courtesy Lamps Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

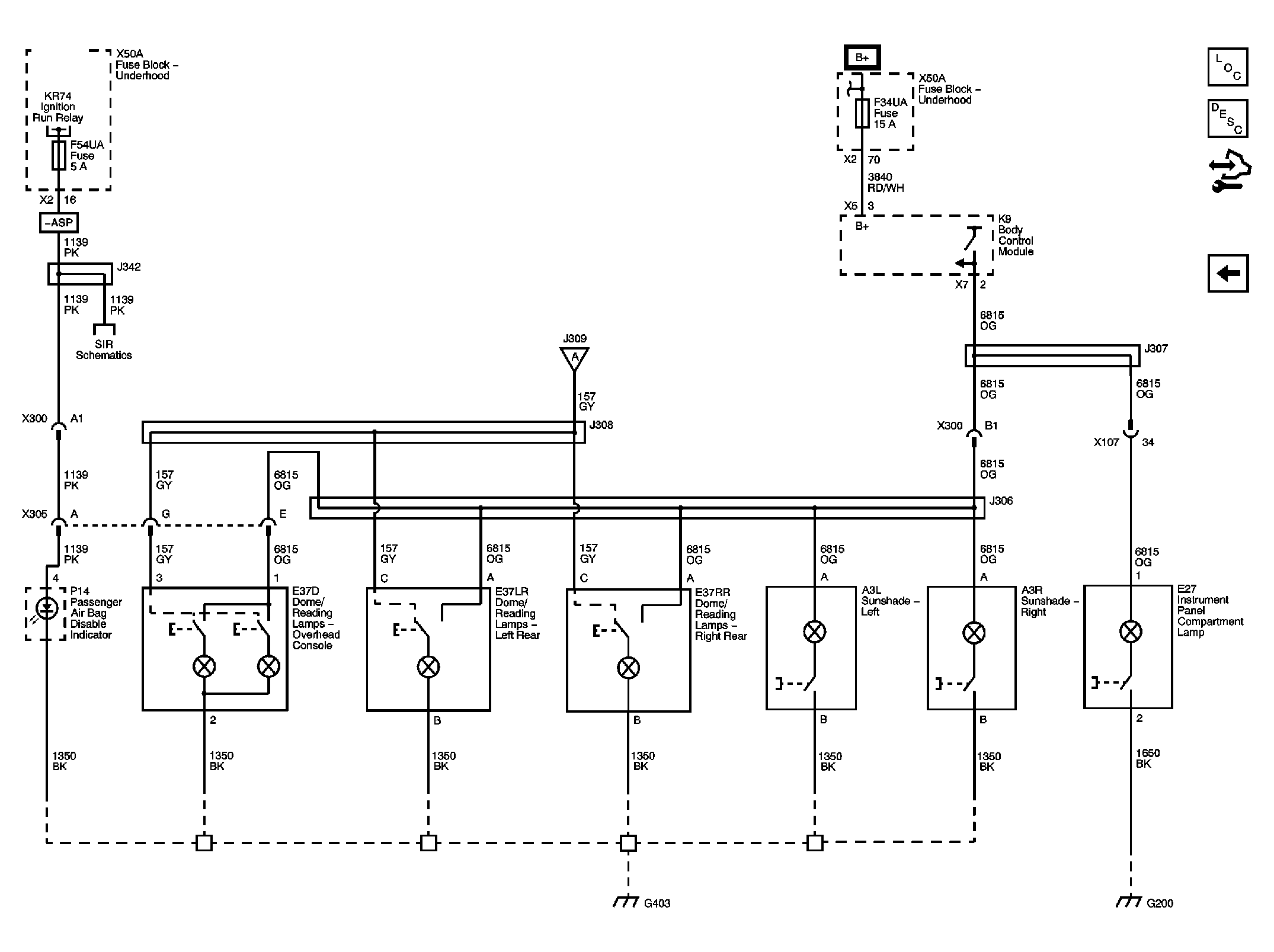

Fig 2: Courtesy/Reading & Sunshade Lamps Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
