Body Control System Schematics
›
Power, Ground And References To Power Distribution And Power Moding
Power, Ground And References To Power Distribution And Power Moding

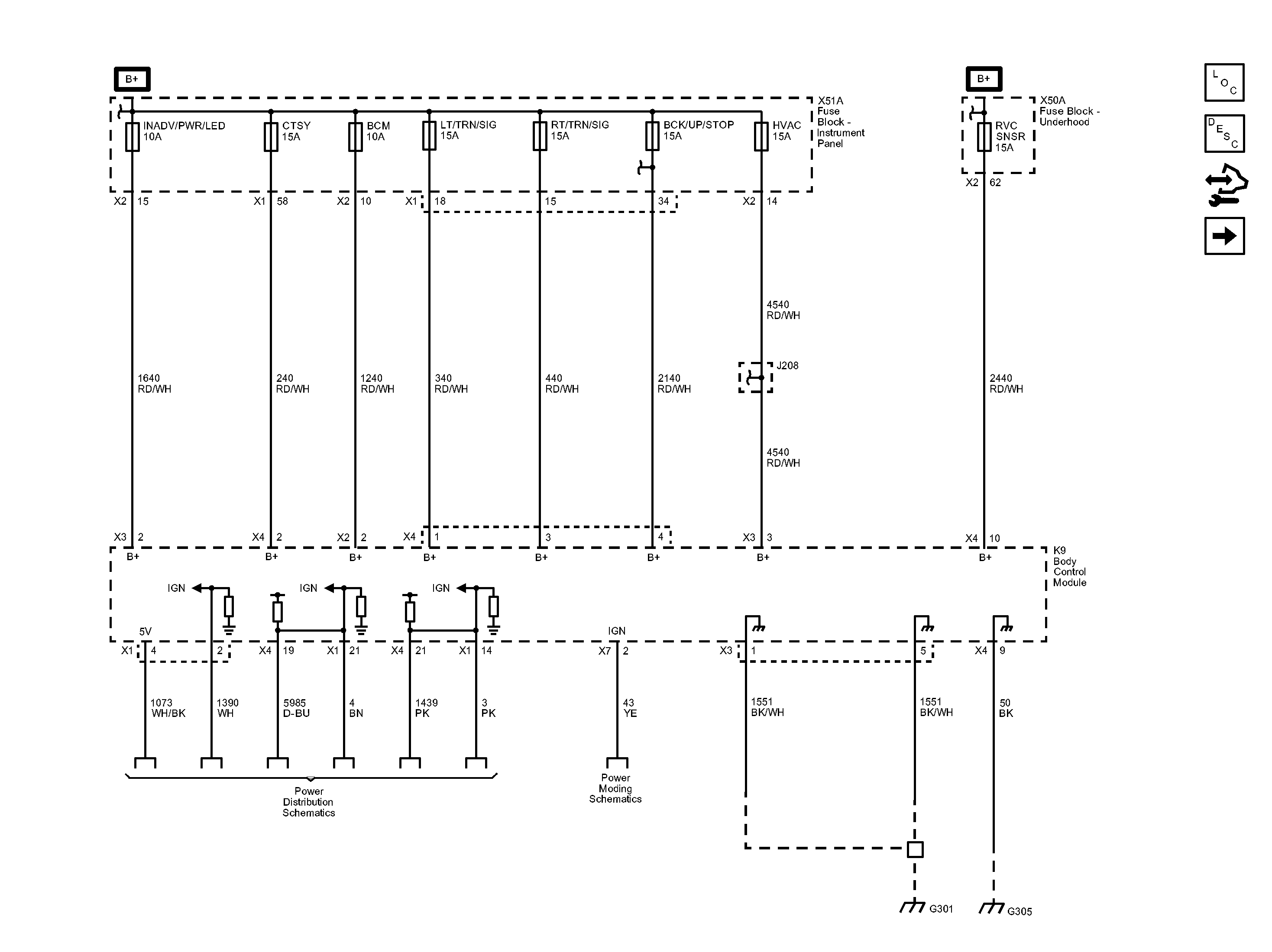

Fig 1: Power, Ground And References To Power Distribution And Power Moding Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
