Communication Enable And Linear Interconnect Network (LIN)

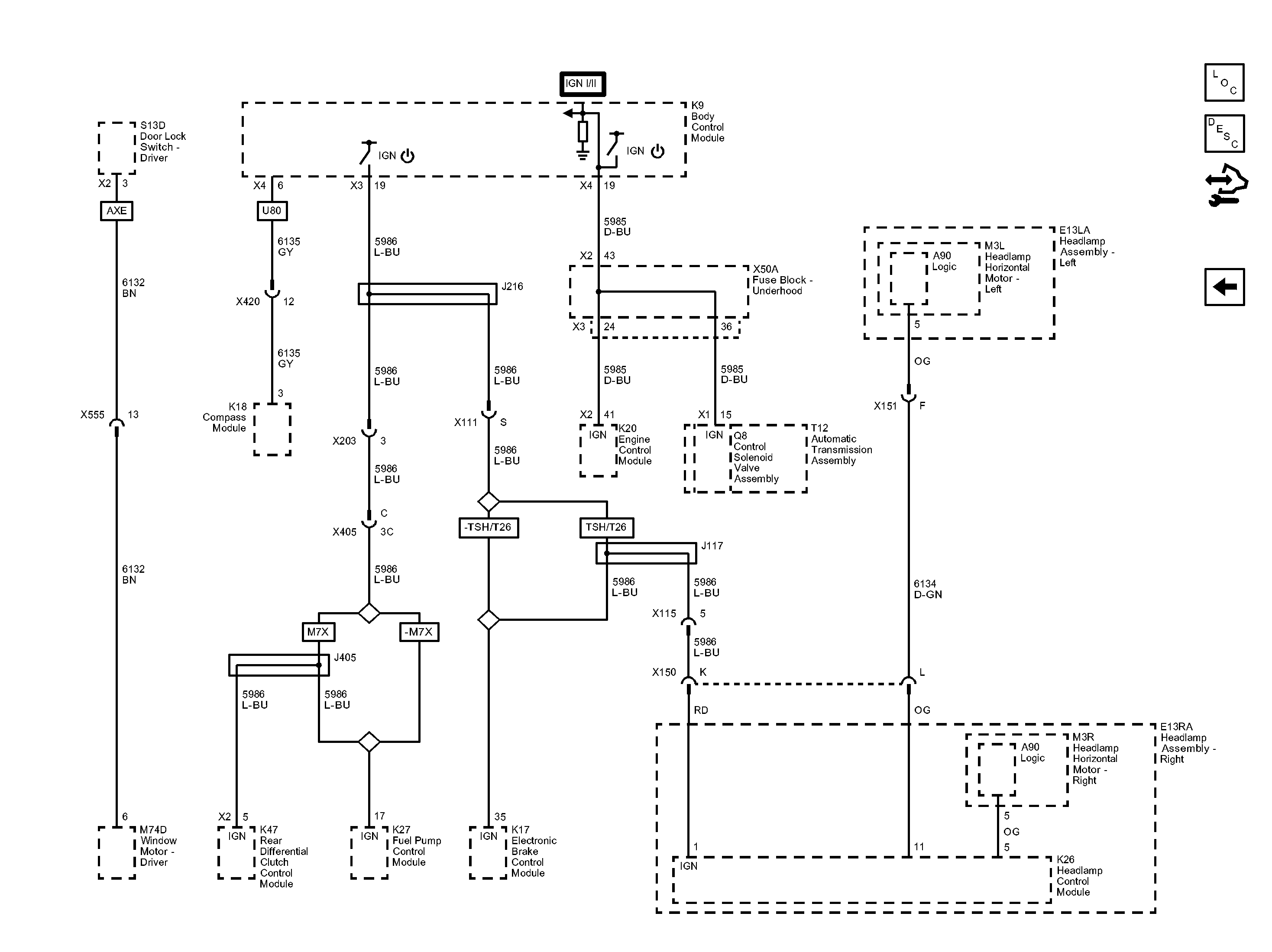

Fig 1: Communication Enable And Linear Interconnect Network (LIN) Wiring Schematic
GM2867653Courtesy of GENERAL MOTORS COMPANY
