Power Steering Schematics: NV7

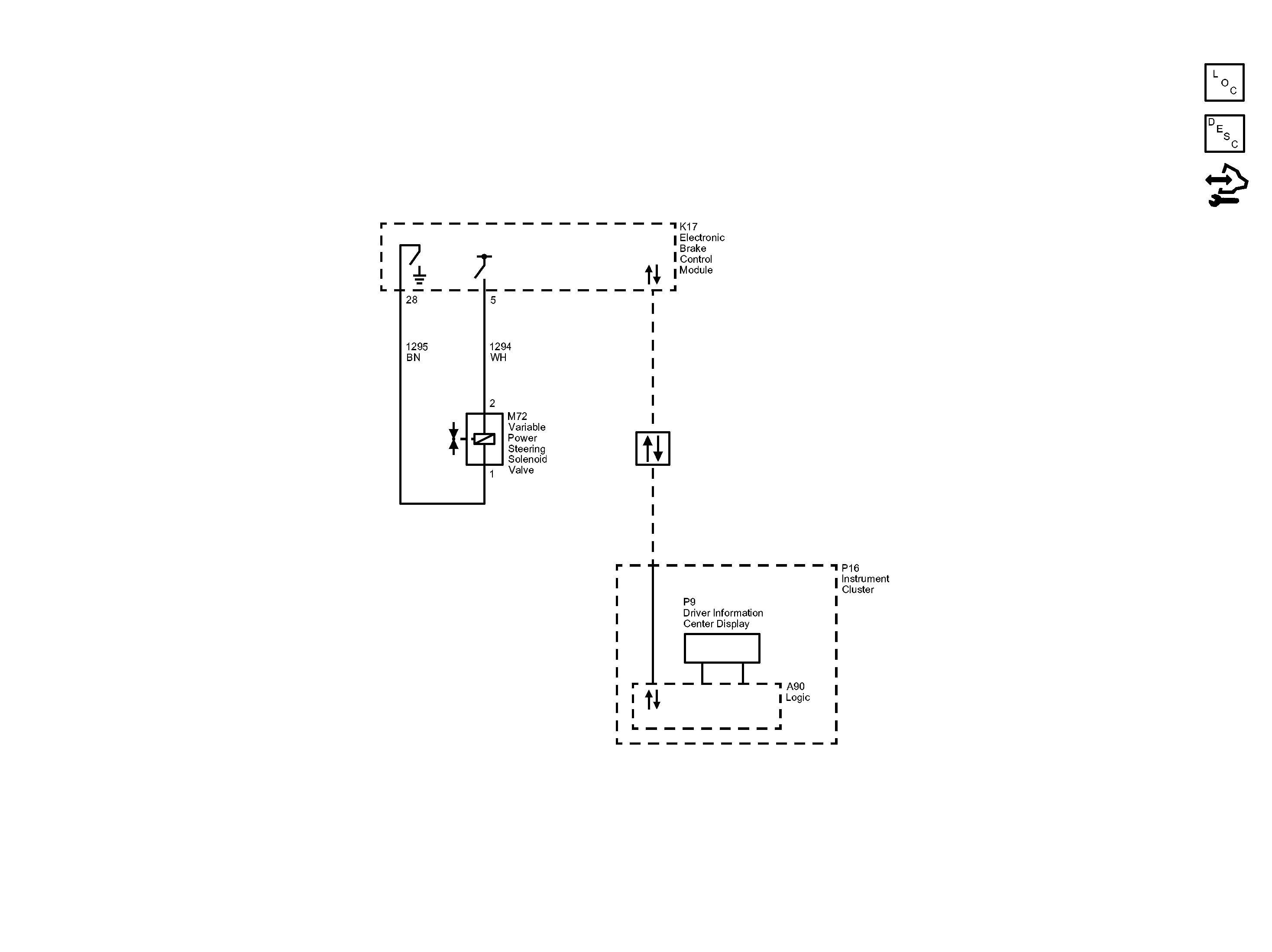

Fig 1: Power Steering (NV7) Wiring Schematic
GM2868225Courtesy of GENERAL MOTORS COMPANY
