3rd Row Seat Belt Guide Replacement
3rd Row Seat Belt Guide Replacement

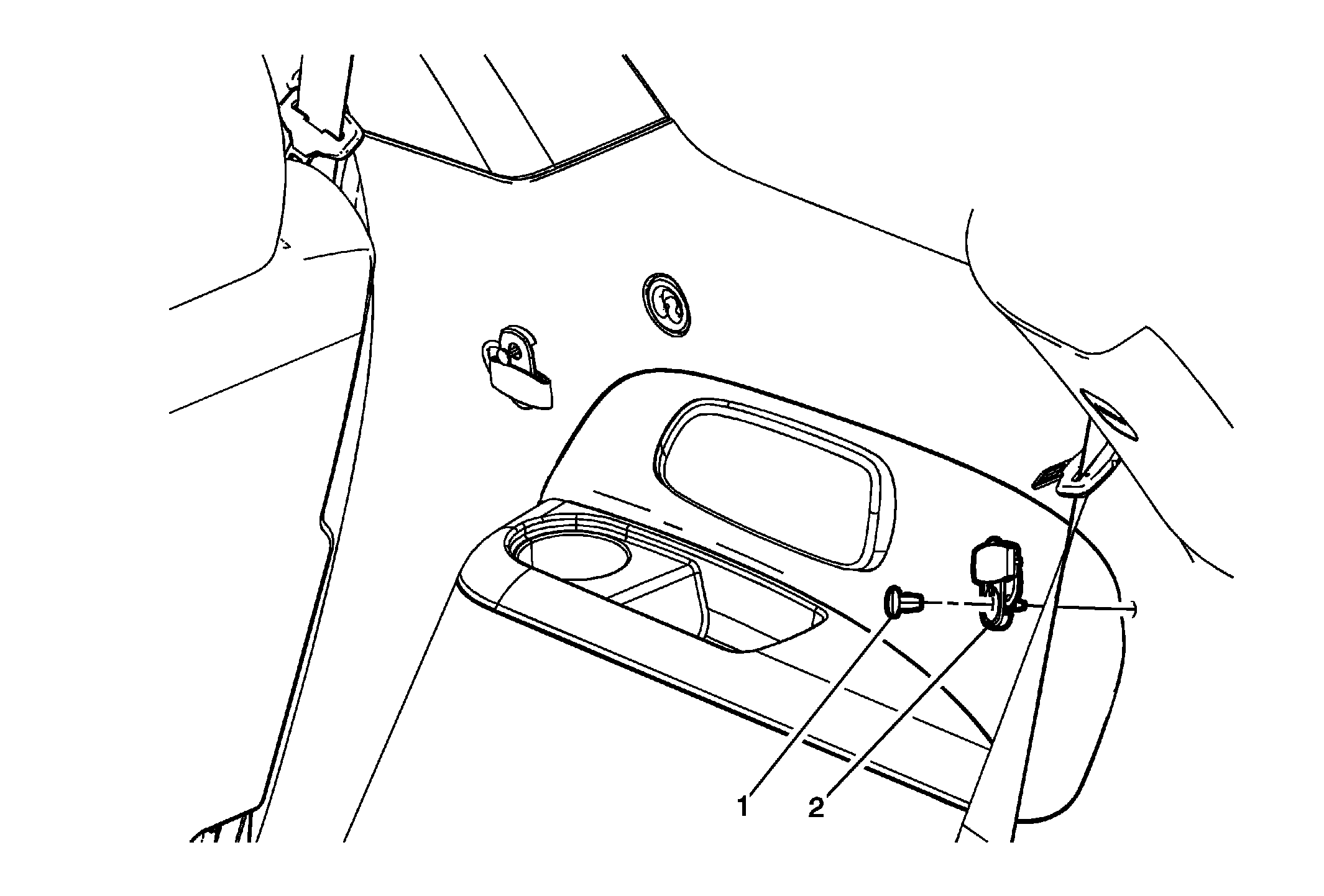

Fig 1: 3rd Row Seat Belt Guide
Courtesy of GENERAL MOTORS COMPANY
3rd Row Seat Belt Guide Replacement
Callout
Component Name
1
Rear Seat 3rd Row Belt Guide Retainer
2
Rear Seat 3rd Row Belt Guide
Courtesy of GENERAL MOTORS COMPANY
