Rear Side Door Window Regulator Motor Replacement

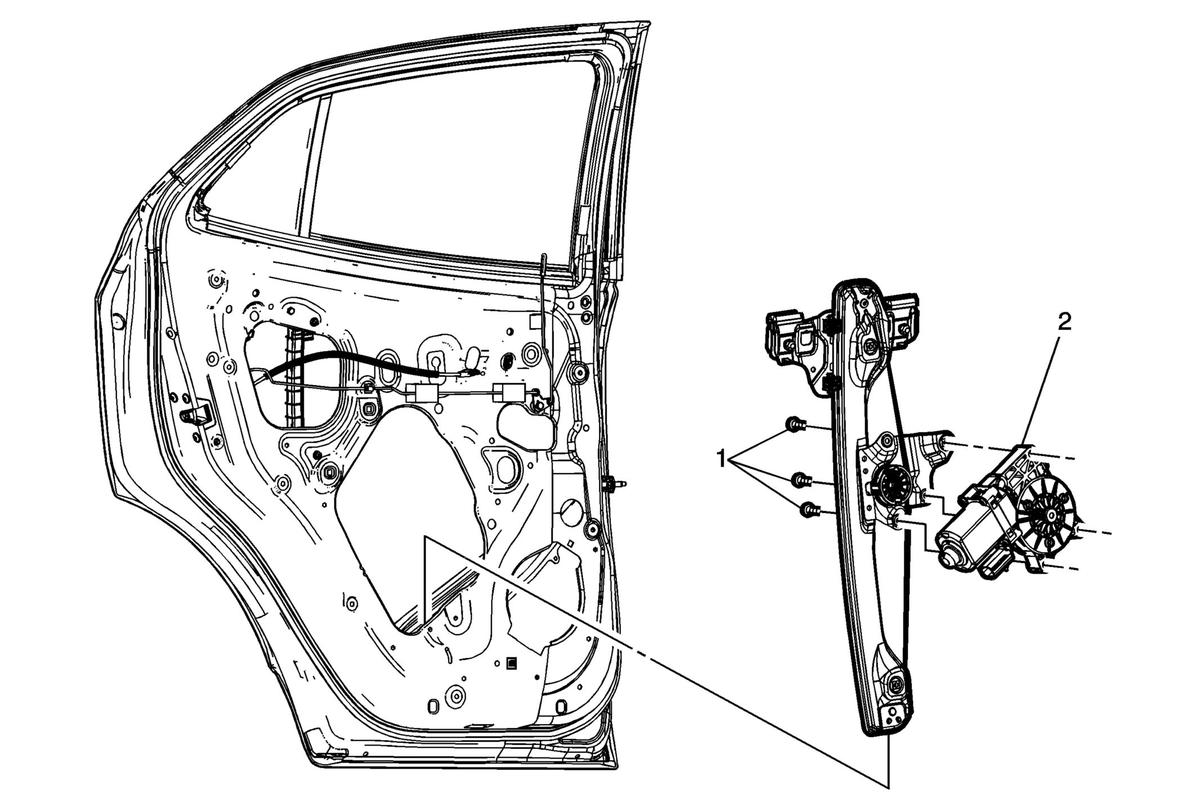

Fig 1: Rear Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement (Power) , Rear Side Door Window Regulator Replacement .
1	Rear Side Door Power Window Regulator Motor Screw (Qty: 3). CAUTION: Refer to Fastener Caution . Procedure Remove the rear side door water deflector. Disconnect the electrical connector from the window regulator motor. Tighten 5 N.m (44 lb in)
2	Rear Side Door Power Window Regulator Motor Procedure Inspect the door window for proper operation before installing the door trim.

Callout

Component Name

WARNING:

Rear Side Door Power Window Regulator Motor Screw (Qty: 3).

CAUTION:

Procedure

Tighten
5 N.m (44 lb in)

Rear Side Door Power Window Regulator Motor
Procedure
Inspect the door window for proper operation before installing the door trim.
