Trax LS, Automatic Trans
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Antilock Brake System
›
Schematic Wiring Diagrams
›
Antilock Brake System Schematics
›
Module Power, Ground And Subsystem References
Module Power, Ground And Subsystem References

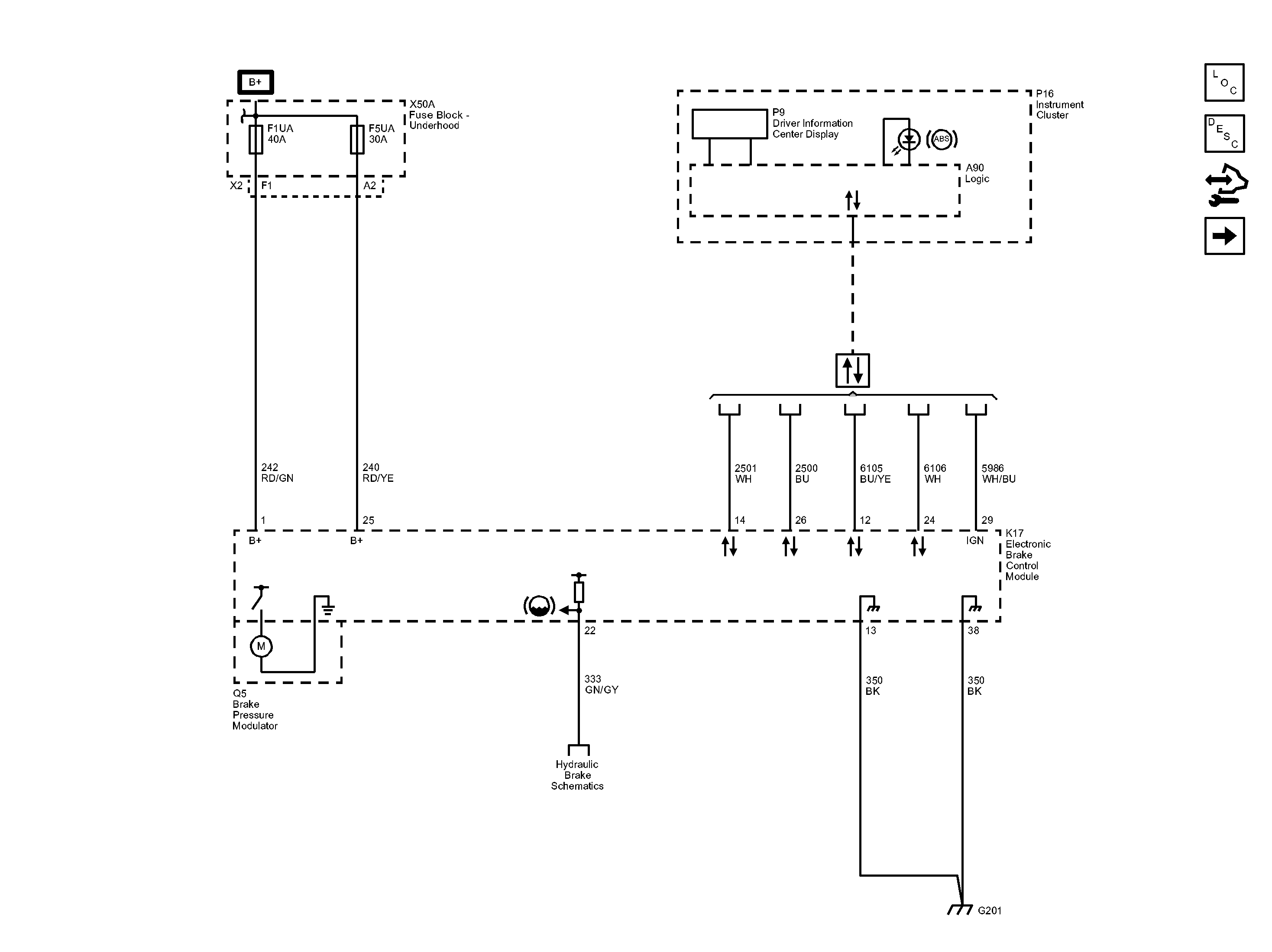

Fig 1: Module Power, Ground And Subsystem References Wiring Schematic
