Chevrolet
›
2013
›
Trax LS, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic and Routing Diagrams
›
Body Control System Schematics
›
Power, Ground, Data Communications And System References (1 Of 4)
Power, Ground, Data Communications And System References (1 Of 4)

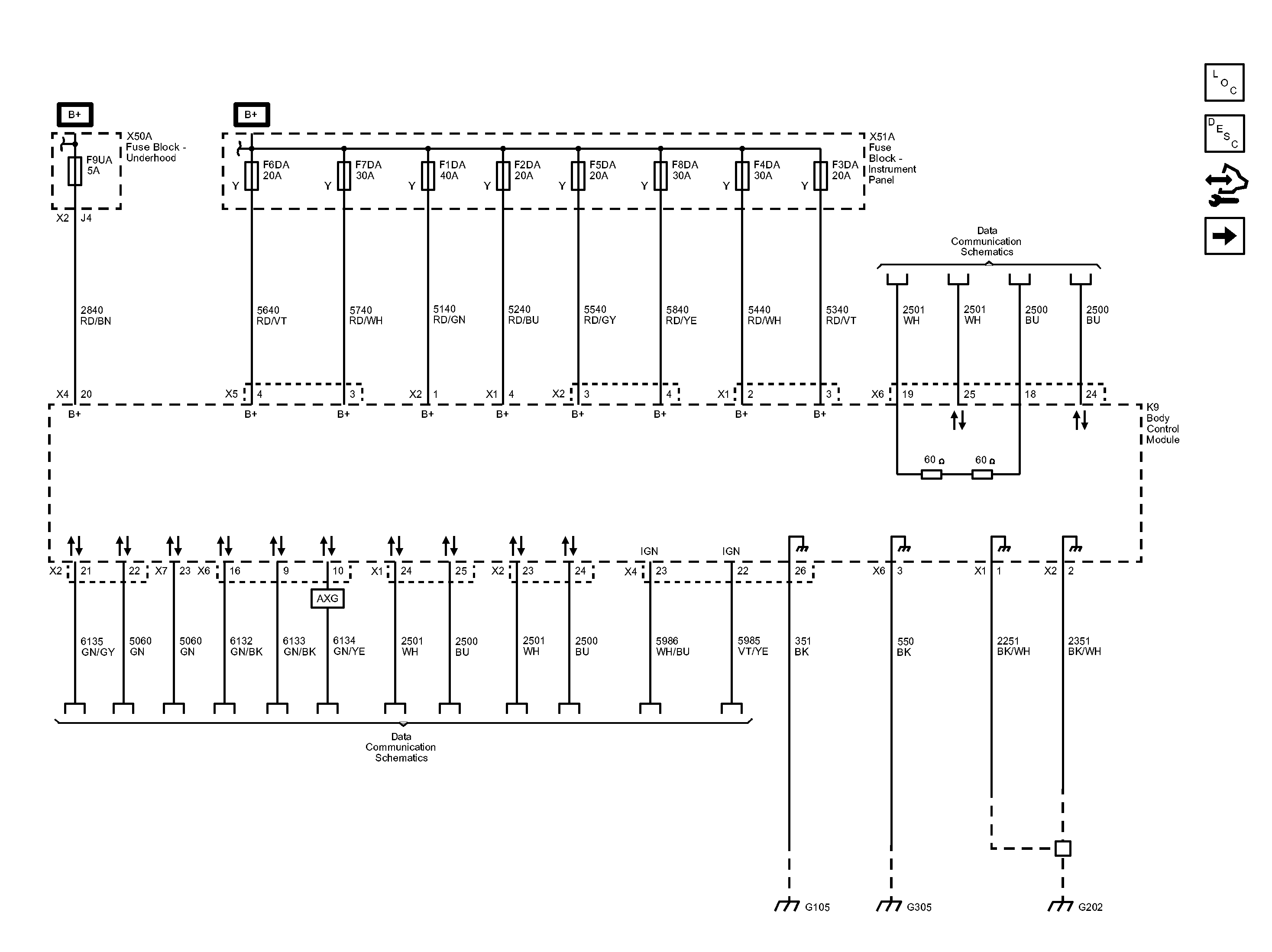

Fig 1: Power, Ground, Data Communications And System References Wiring Schematic (1 Of 4)
Courtesy of GENERAL MOTORS COMPANY
