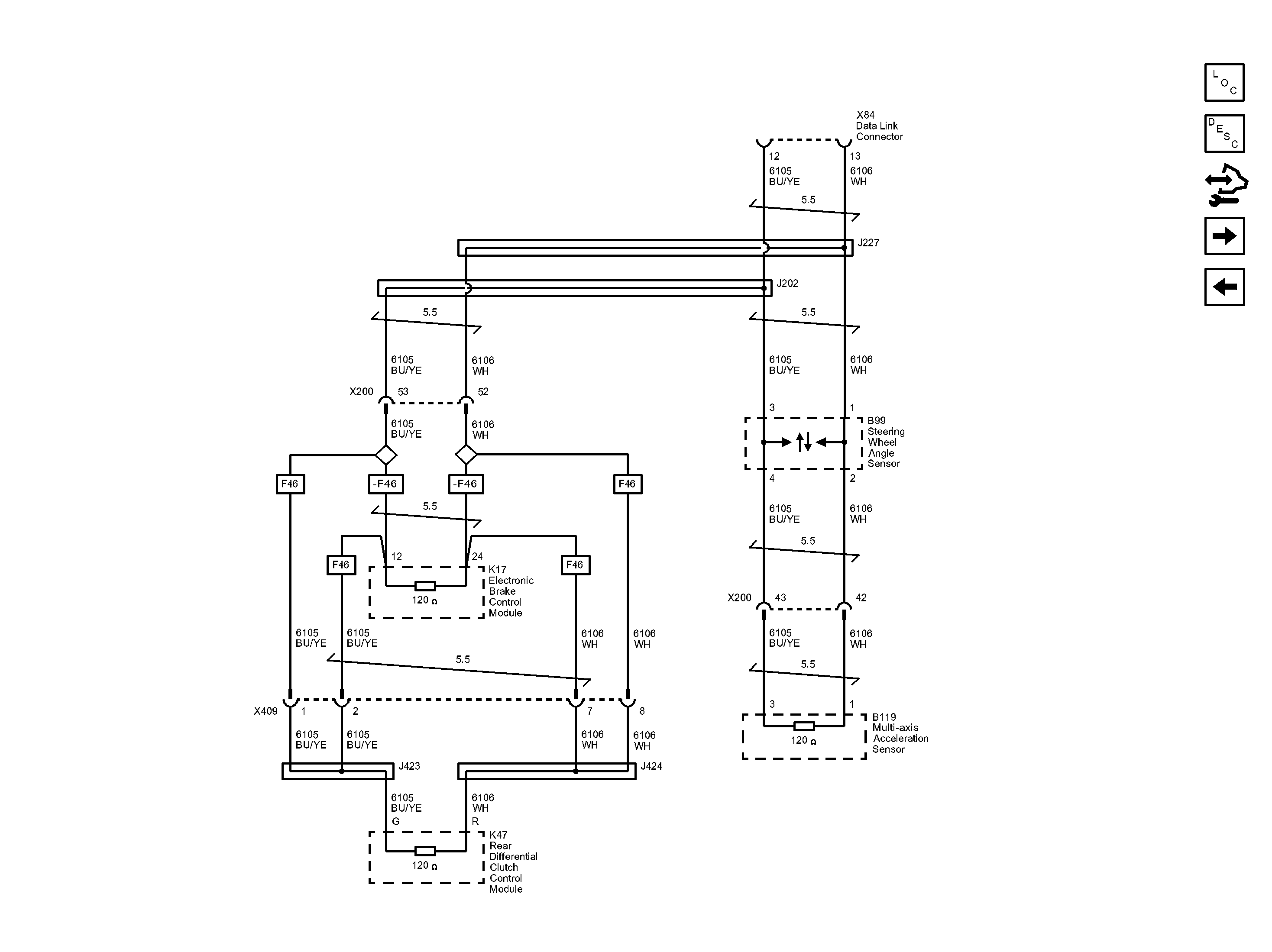

Home › Chevrolet › 2013 › Trax LS, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic and Routing Diagrams › Data Communication Schematics › High Speed GMLAN Bus 2 (FX3)
