Installation Procedure

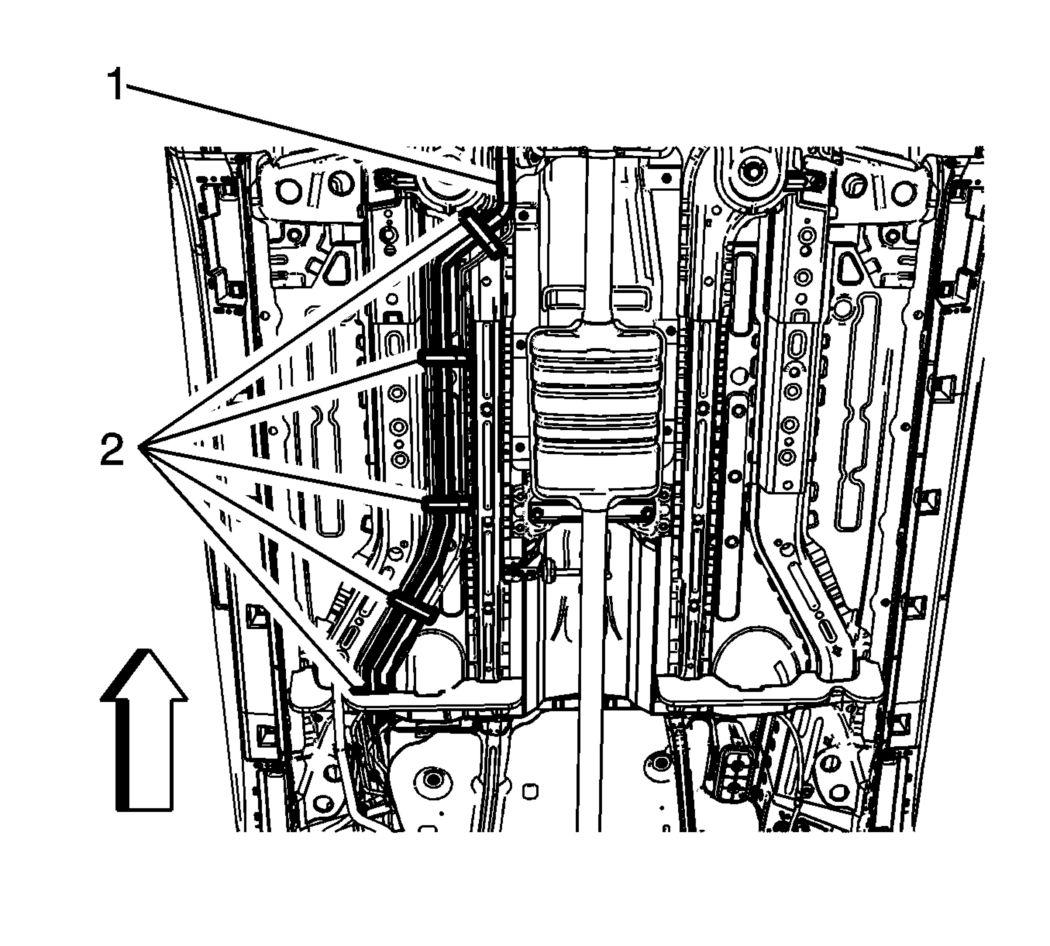

    Fig 1: Fuel Feed Pipe And Retainers
    GM2774507Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel feed pipe (1) to the vehicle.
  2. Install the fuel feed pipe (1) to the retainers (2).
  3. Install the fuel feed pipe (1) to the fuel feed pipe at the tank. Refer to Plastic Collar Quick Connect Fitting Service .
  4. Lower the vehicle.

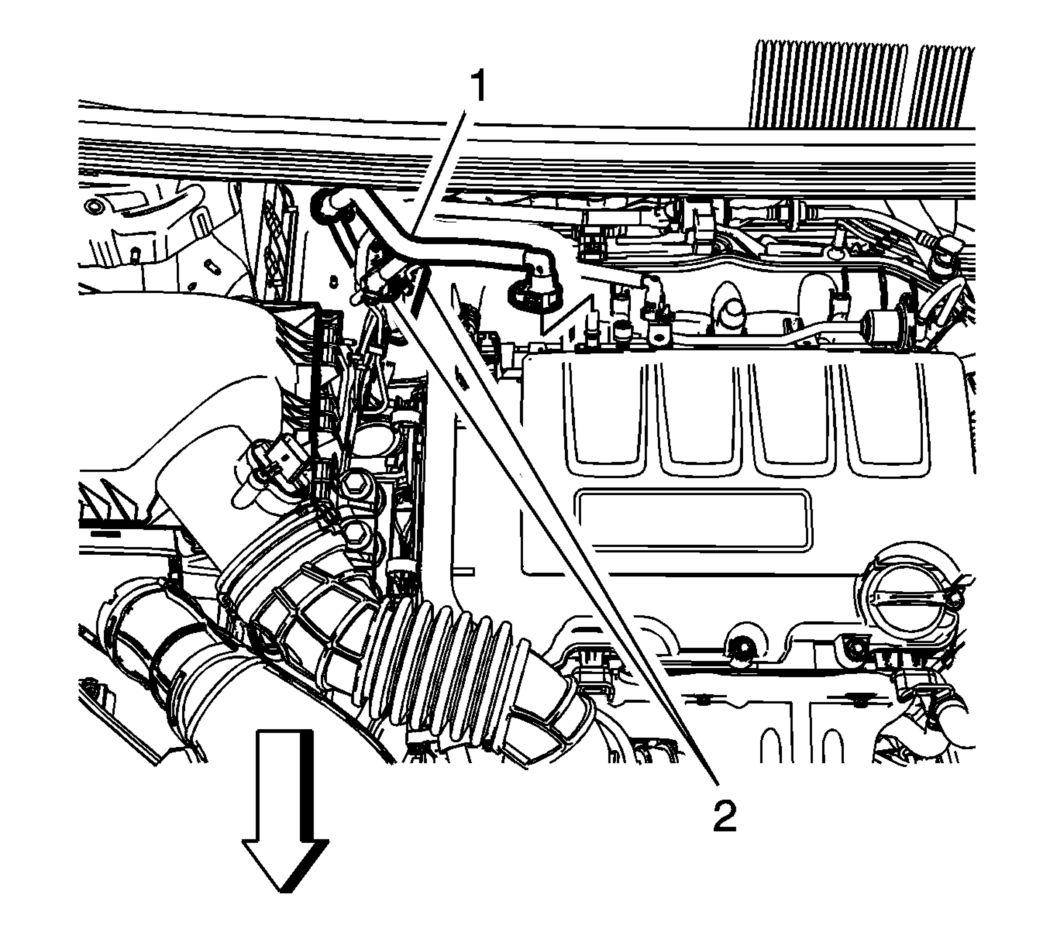

    5. Fig 2: Fuel Feed Pipe
    GM2774661Courtesy of GENERAL MOTORS COMPANY
  5. Install the fuel feed pipe (1) to the retainers (2).
  6. Install the fuel feed pipe (1) to the fuel rail. Refer to Plastic Collar Quick Connect Fitting Service .
