Keyless Entry Wiring Schematics

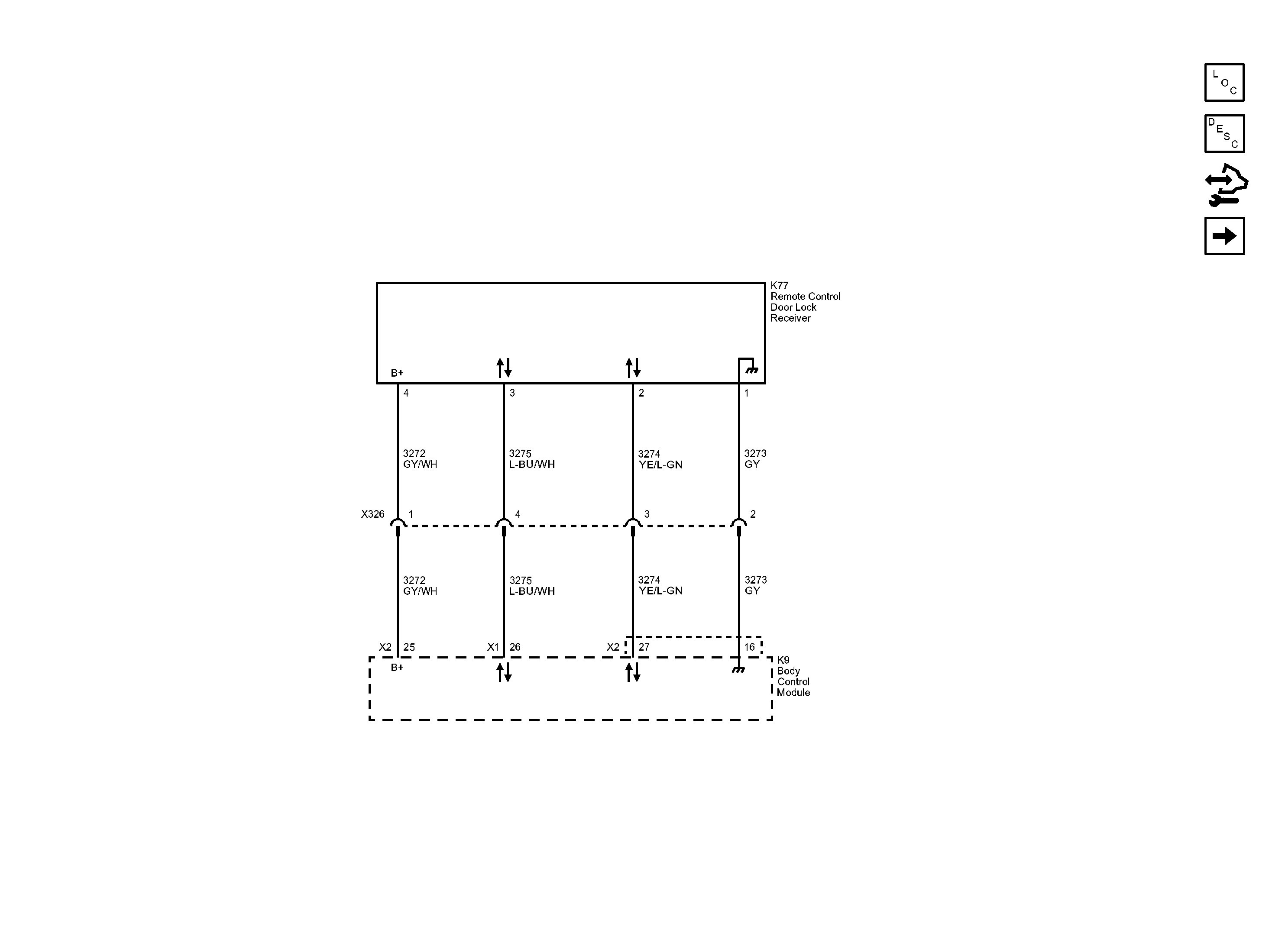

Fig 1: Keyless Entry Wiring Schematics
GM2812588Courtesy of GENERAL MOTORS COMPANY
