Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›
Passive Start Wiring Schematics
Passive Start Wiring Schematics

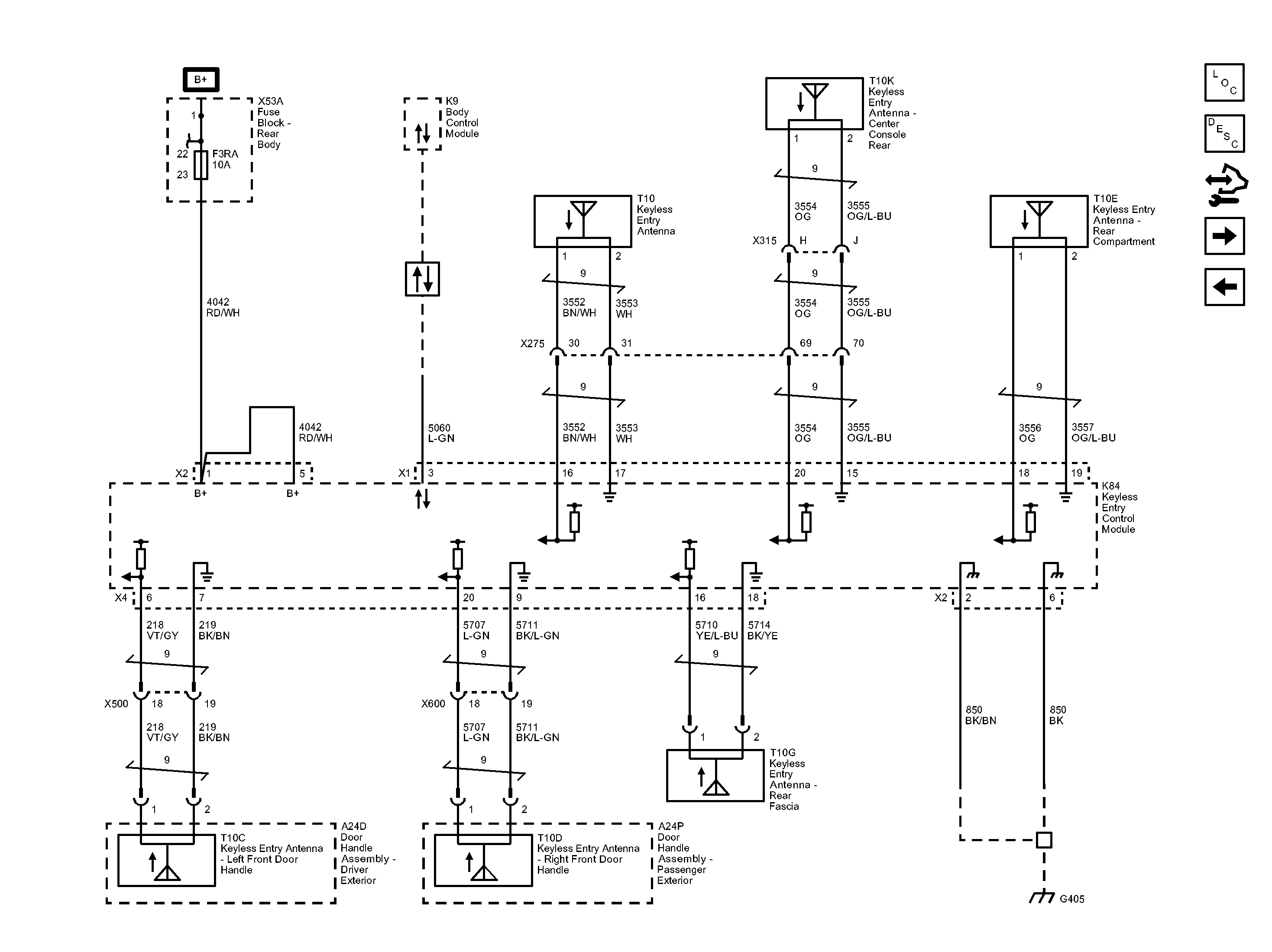

Fig 1: Passive Start Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
