Front Side Door Window Outer Weatherstrip Replacement

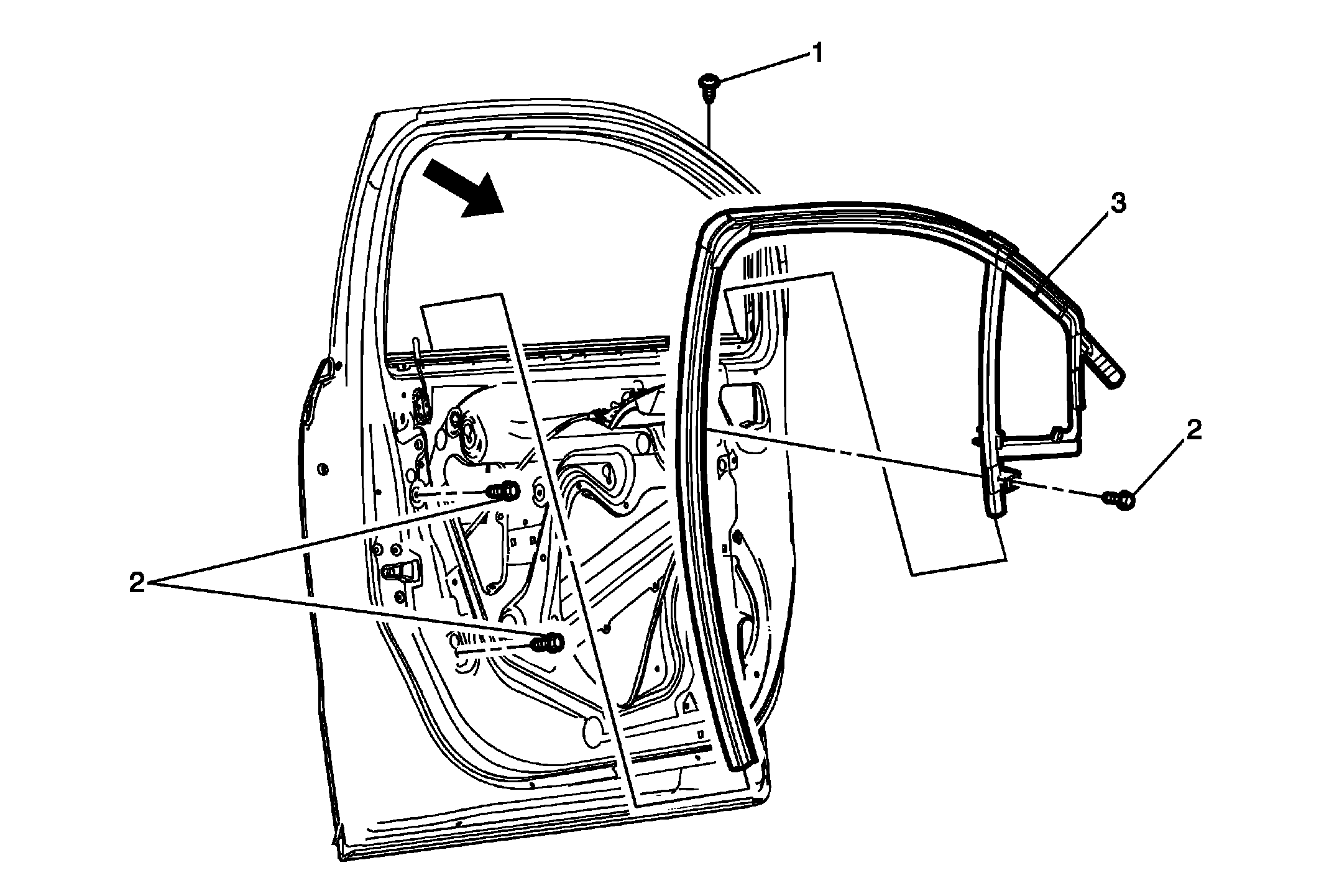

Fig 1: Front Side Door Window Outer Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door window. Refer to Front Side Door Window Replacement . Remove the front side door mirror applique. Refer to Outside Rearview Mirror Applique Replacement . Remove the outside view mirror. Refer to Outside Rearview Mirror Replacement .
1	Front Side Door Window Outer Weatherstrip Upper Screw CAUTION: Refer to Fastener Caution . Procedure Use masking tape, tape off the upper belt reveal molding to protect the finish. Remove the screw from the upper door frame, under the outer door weatherstrip. Reposition the door weatherstrip to access. Tighten 2.5 N.m (22 lb in)
2	Front Side Door Window Outer Weatherstrip Lower Frame Bolts (Qty: 3) Tighten 11 N.m (97 lb in)
3	Front Side Door Window Outer Weatherstrip Procedure Grasp the front top corner of the window and outer weatherstrip, pull rearward and down releasing the assembly from the door frame. TIP: Inspect the window for proper operation before installing the door trim panel.
