Driver Moveable Window Wiring Schematics

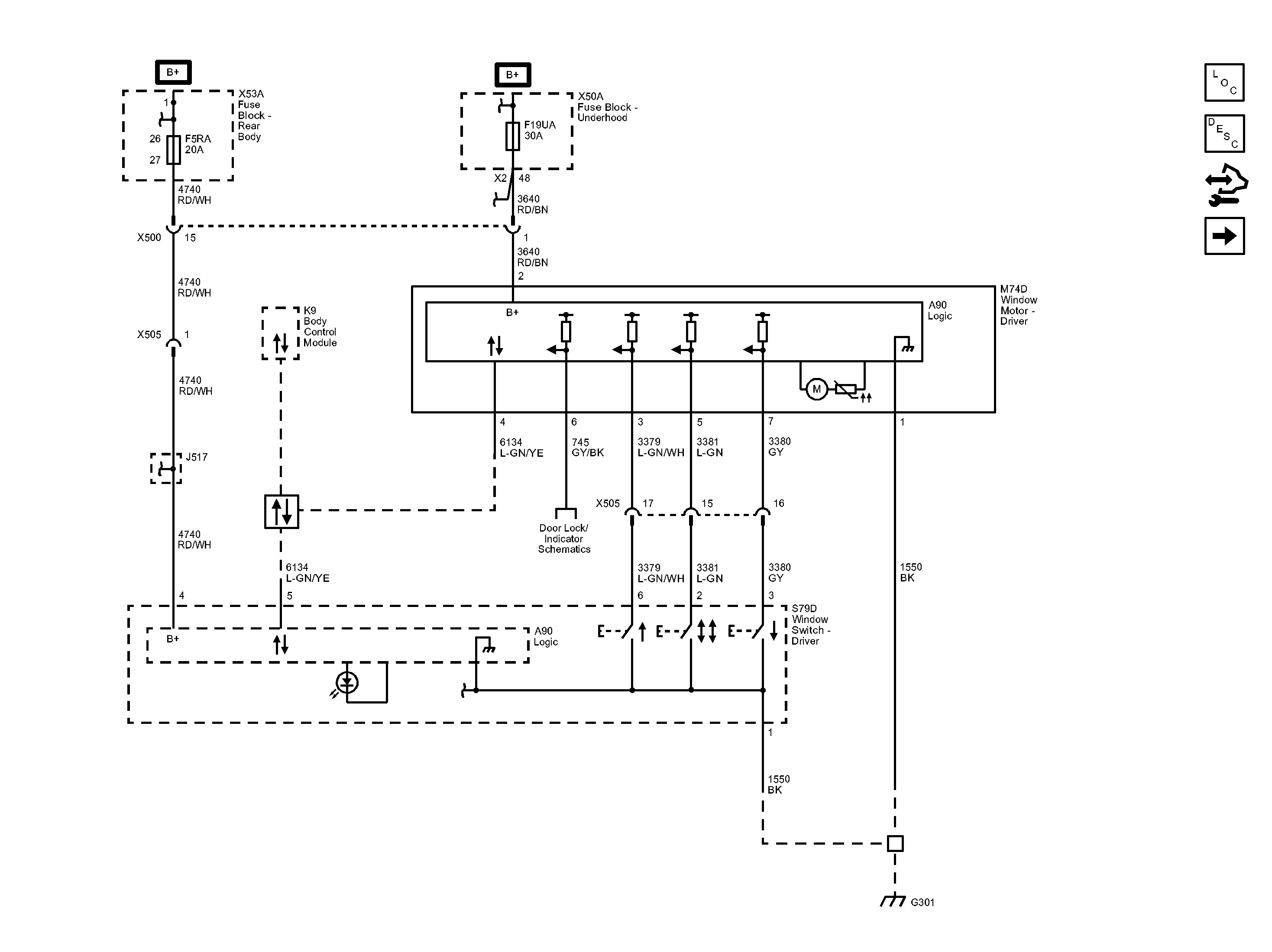

Fig 1: Driver Moveable Window Wiring Schematics
GM2812610Courtesy of GENERAL MOTORS COMPANY
