Radio/Navigation System Wiring Schematics

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

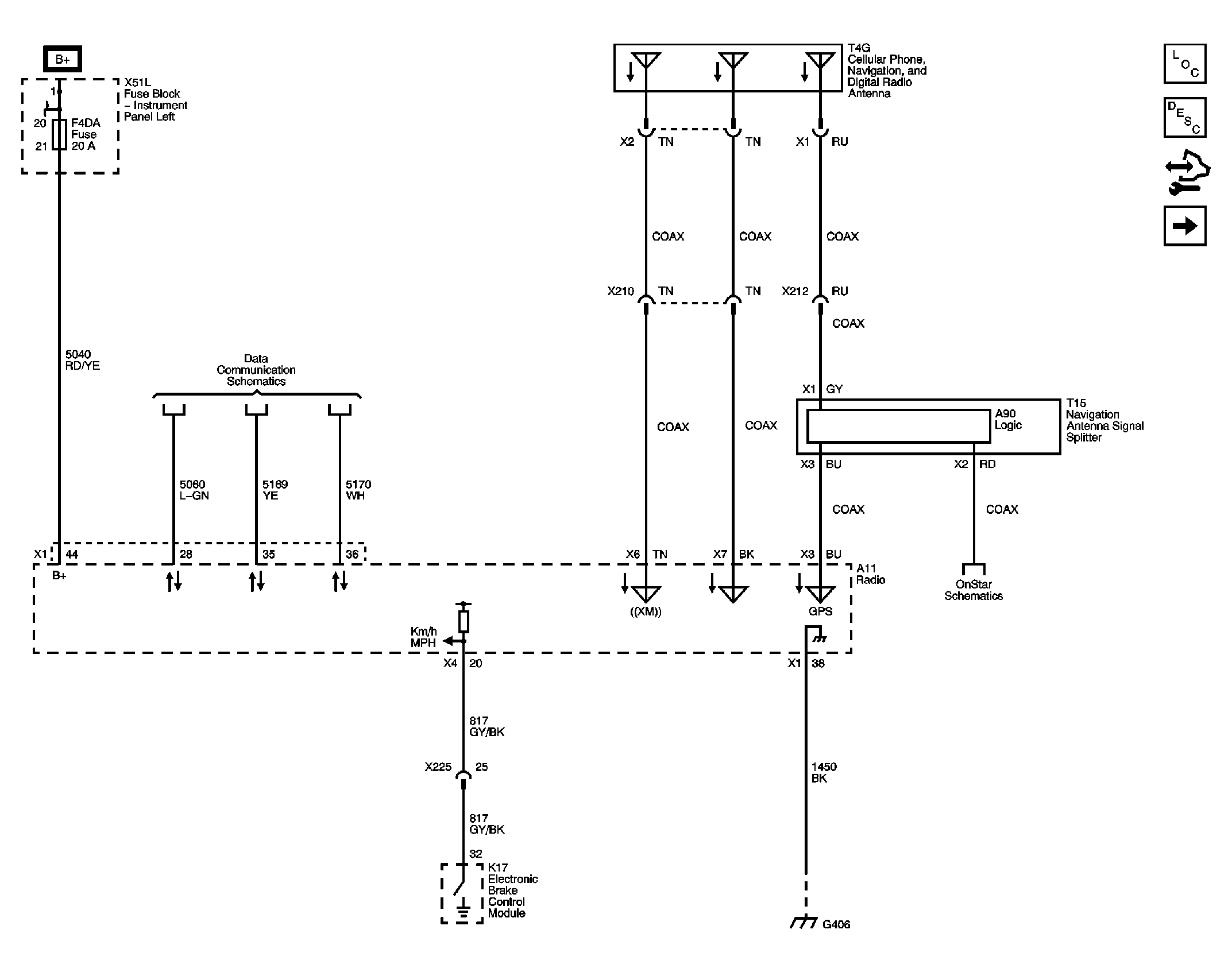

Fig 1: Power, Ground, Antennas And Serial Data Wiring Schematic

GM2489884

Courtesy of GENERAL MOTORS CORP.

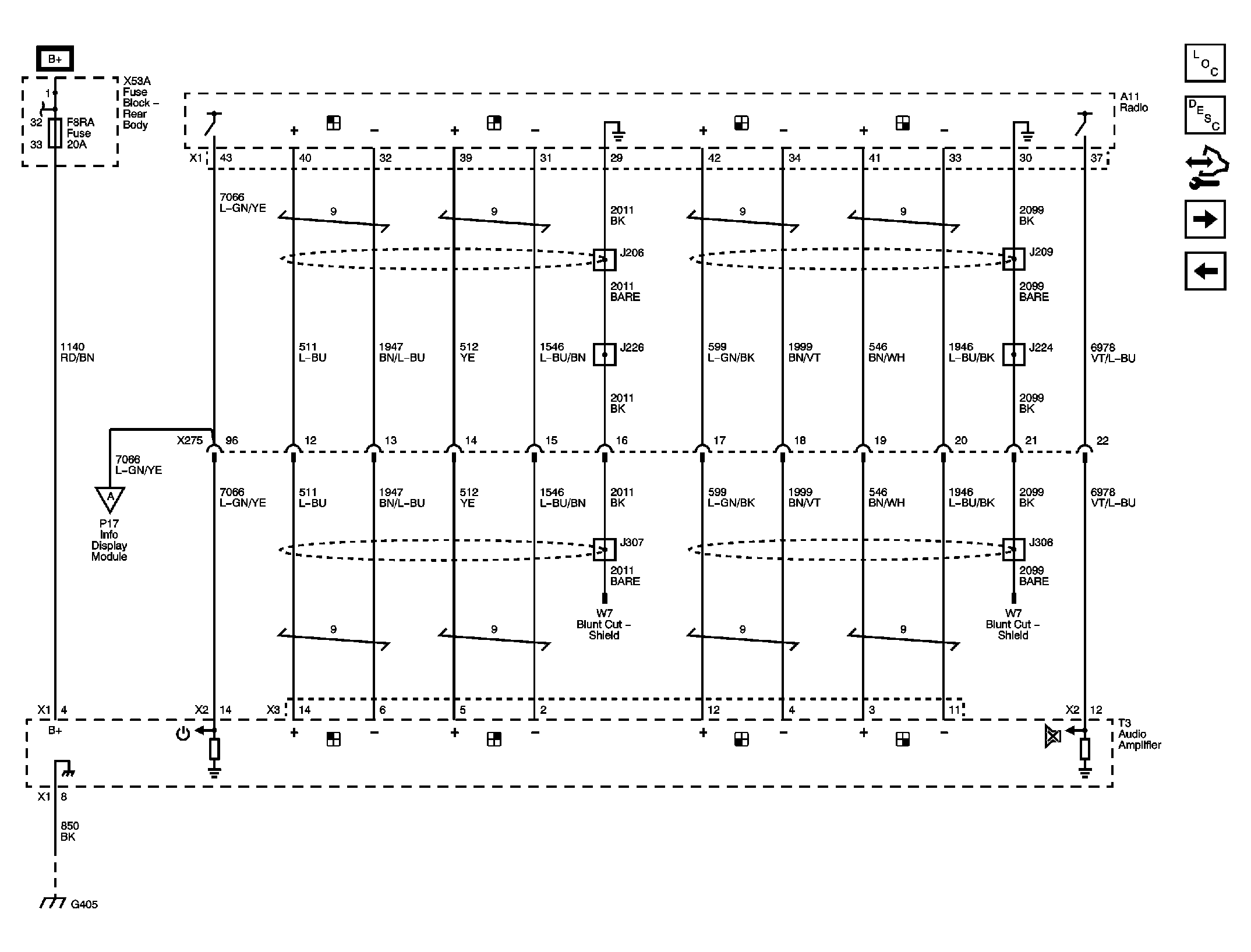

Fig 2: Amplifier Inputs Wiring Schematic

GM2489885

Courtesy of GENERAL MOTORS CORP.

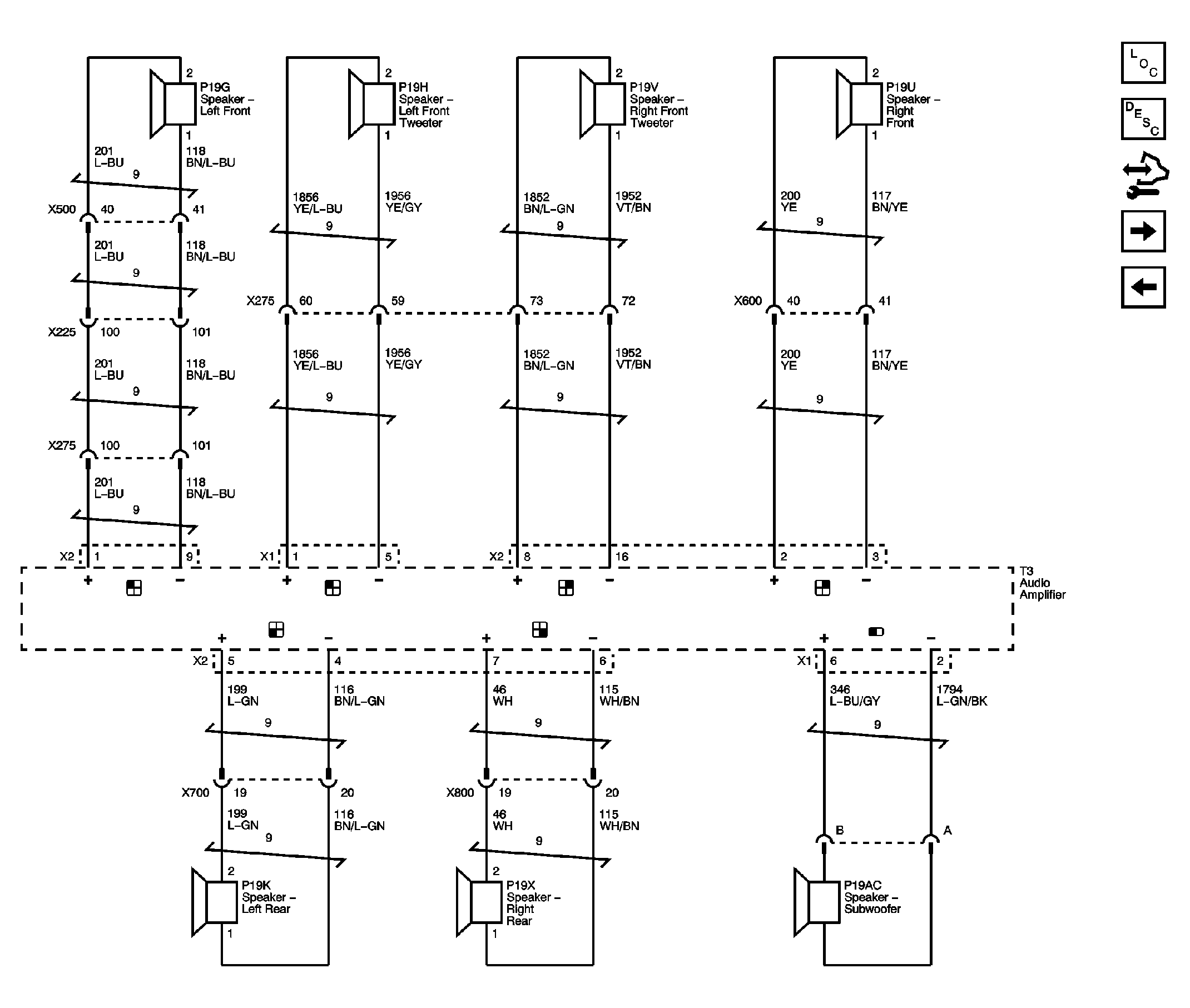

Fig 3: Speakers Wiring Schematic

GM2489886

Courtesy of GENERAL MOTORS CORP.

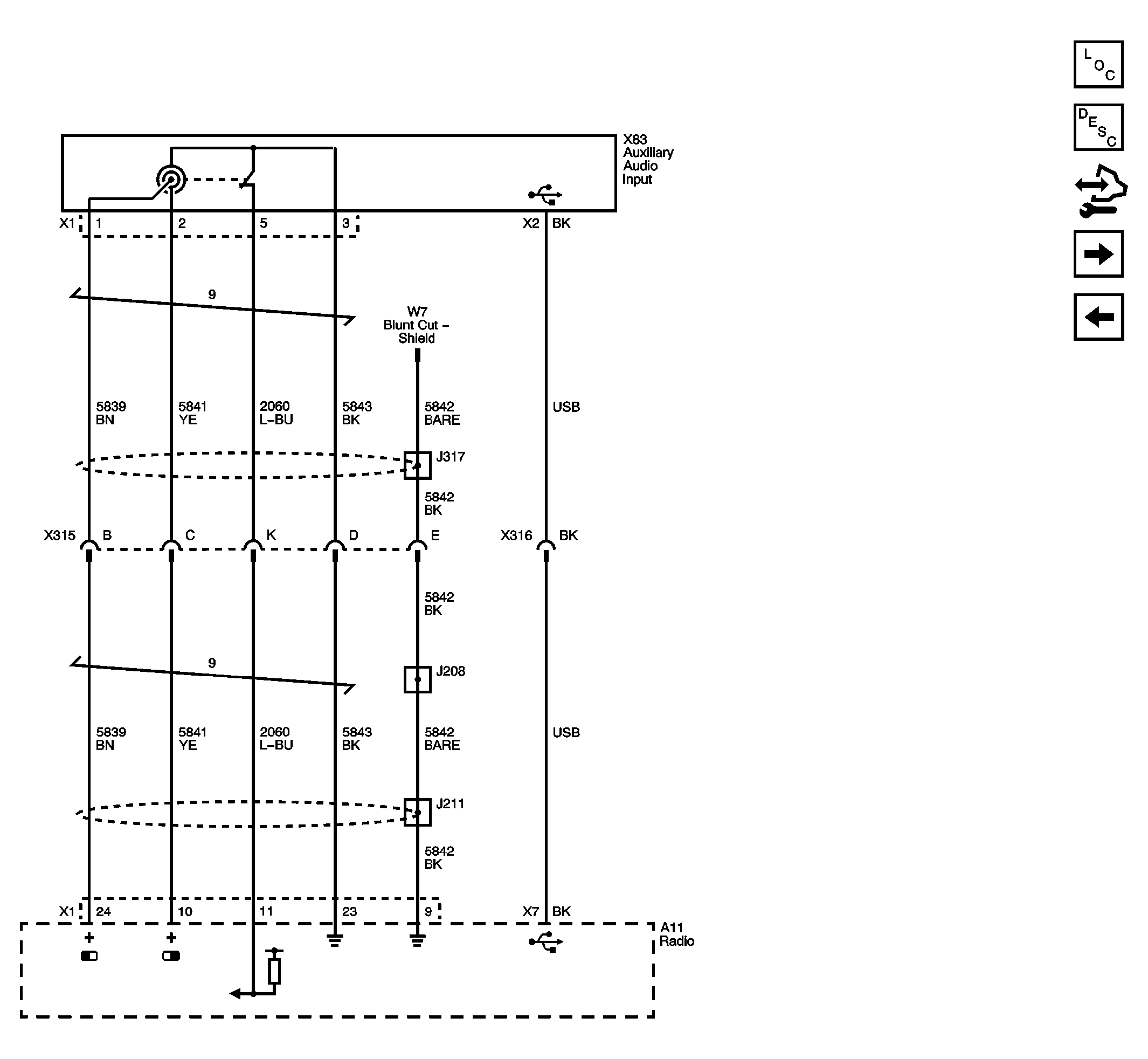

Fig 4: Auxiliary Audio Input Wiring Schematic

GM2489887

Courtesy of GENERAL MOTORS CORP.

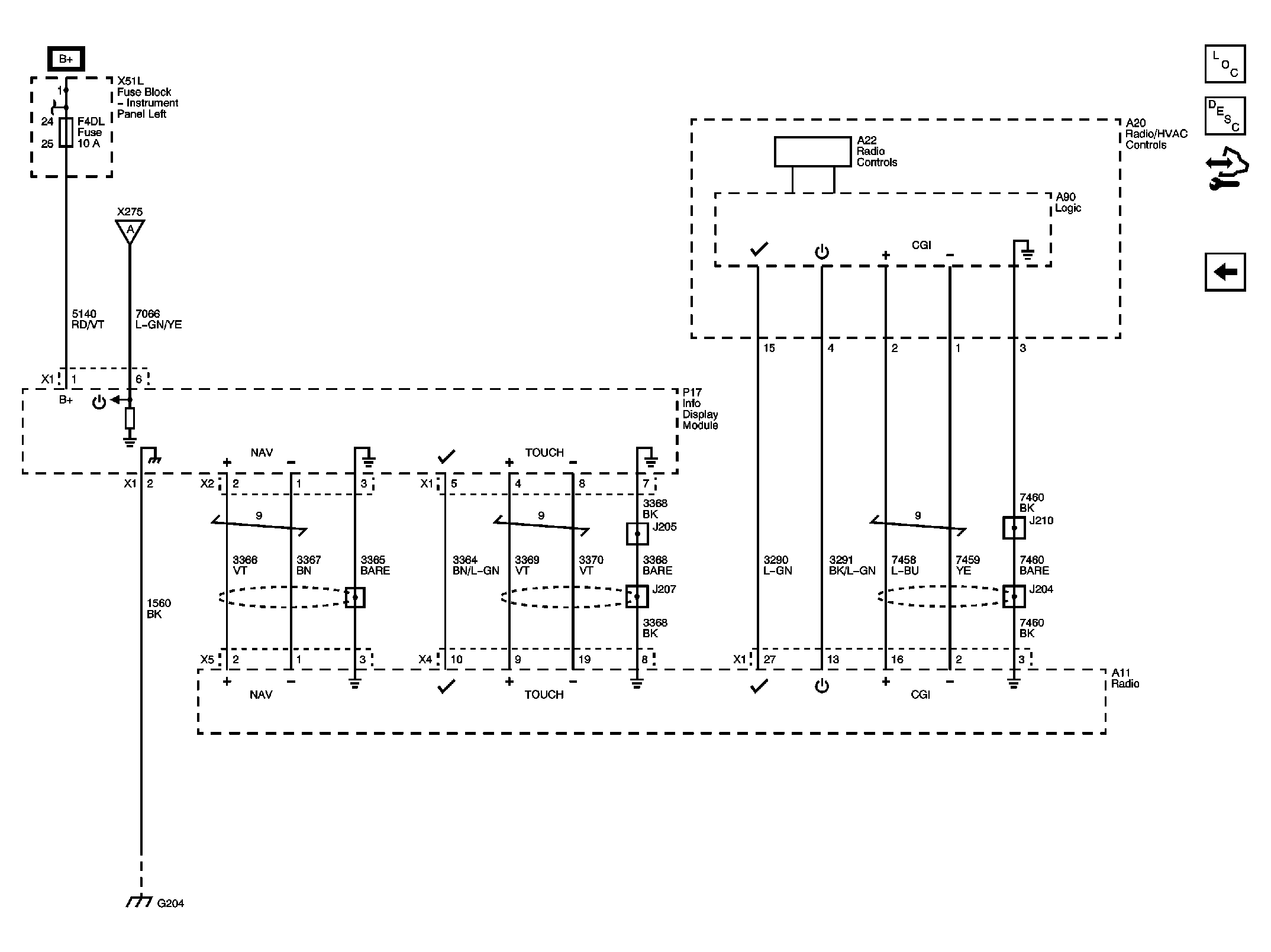

Fig 5: Info Display Wiring Schematic

GM2489888

Courtesy of GENERAL MOTORS CORP.
