X51L Fuse Block - Instrument Panel Left Label

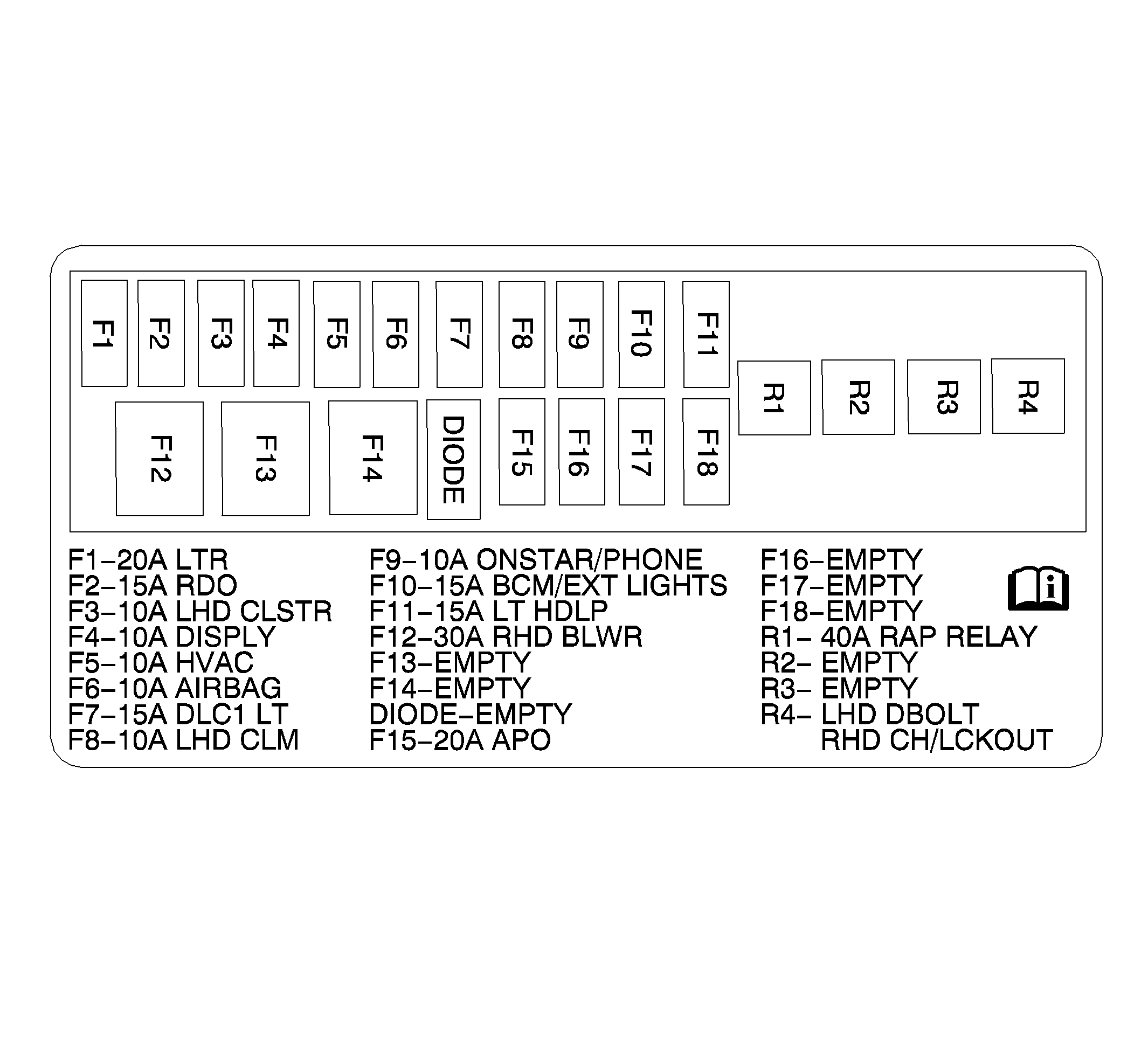

Fig 1: X51L Fuse Block - Instrument Panel Left Label

Courtesy of GENERAL MOTORS COMPANY

X51L FUSE BLOCK - INSTRUMENT PANEL LEFT FUSE AND RELAY IDENTIFICATION LEGEND

No.	Device Label Name	Fuse And Relay Description	Rating	Circuits
Fuses
F1DL: F1	F1DL: RDO	F1DL: F1DL	F1DL: 20A	F1DL: E32 Cigarette Lighter Receptacle
F2DL: F2	F2DL: RDO	F2DL: F2DL	F2DL: 15 A	F2DL: A11 Radio
F3DL: F3	F3DL: LHD CLSTR	F3DL: F3DL	F3DL: 10 A	F3DL: P16 Instrument Cluster (LHD)
F4DL: F4	F4DL: DISPLY	F4DL: F4DL	F4DL: 10 A	F4DL: P17 Info Display Module
F5DL: F5	F5DL: HVAC	F5DL: F5DL	F5DL: 10 A	F5DL: A20 Radio/HVAC Controls, K33 HVAC Control Module
F6DL: F6	F6DL: AIRBAG	F6DL: F6DL	F6DL: 10 A	F6DL: K36 Inflatable Restraint Sensing and Diagnostic Module, K85 Passenger Presence Detection Module
F7DL: F7	F7DL: DLC LT	F7DL: F7DL	F7DL: 15 A	F7DL: X84 Data Link Connector
F8DL: F8	F8DL: LHD CLM	F8DL: F8DL	F8DL: 10 A	F8DL: Not Used
F9DL: F9	F9DL: ONSTAR/PHONE	F9DL: F9DL	F9DL: 10 A	F9DL: Handsfree Phone Module
F10DL: F10	F10DL: BCM/EXT LIGHTS	F10DL: F10DL	F10DL: 15 A	F10DL: K9 Body Control Module
F11DL: F11	F11DL: LT HDLP	F11DL: F11DL	F11DL: 15 A	F11DL: K9 Body Control Module
F12DL: F12	F12DL: RHD BLWR	F12DL: F12DL	F12DL: 30 A	F12DL: Blower Motor (RHD)
F13DL: F13	F13DL: Empty	F13DL: F13DL	F13DL: -	F13DL: Not Used
F14DL: F14	F14DL: Empty	F14DL: F14DL	F14DL: -	F14DL: Not Used
F15DL: F15	F15DL: APO	F15DL: F15DL	F15DL: 20 A	F15DL: X80H Accessory Power Receptacle - Center Console
F16DL: F16	F16DL: Empty	F16DL: F16DL	F16DL: -	F16DL: Not Used
F17DL: F17	F17DL: Empty	F17DL: F17DL	F17DL: -	F17DL: Not Used
F18DL: F18	F18DL: Empty	F18DL: F18DL	F18DL: -	F18DL: Not Used
Diodes
DIODE	Empty	-	-	Not Used
Relays
KR76: R1	KR76: RAP RELAY	KR76: KR76 Retained Accessory Power Relay	KR76: -	KR76: F1DL, F15DL Fuses
R2	Empty	-	-	Not Used
R3	Empty	-	-	Not Used
R4	LHD DBOLT RHD CH/LCKOUT	-	-	Deadbolt Locks (LHD) Child Locks (RHD)
