Linear Interconnect Network (LIN) Bus 1, 3, 4, 9, 11

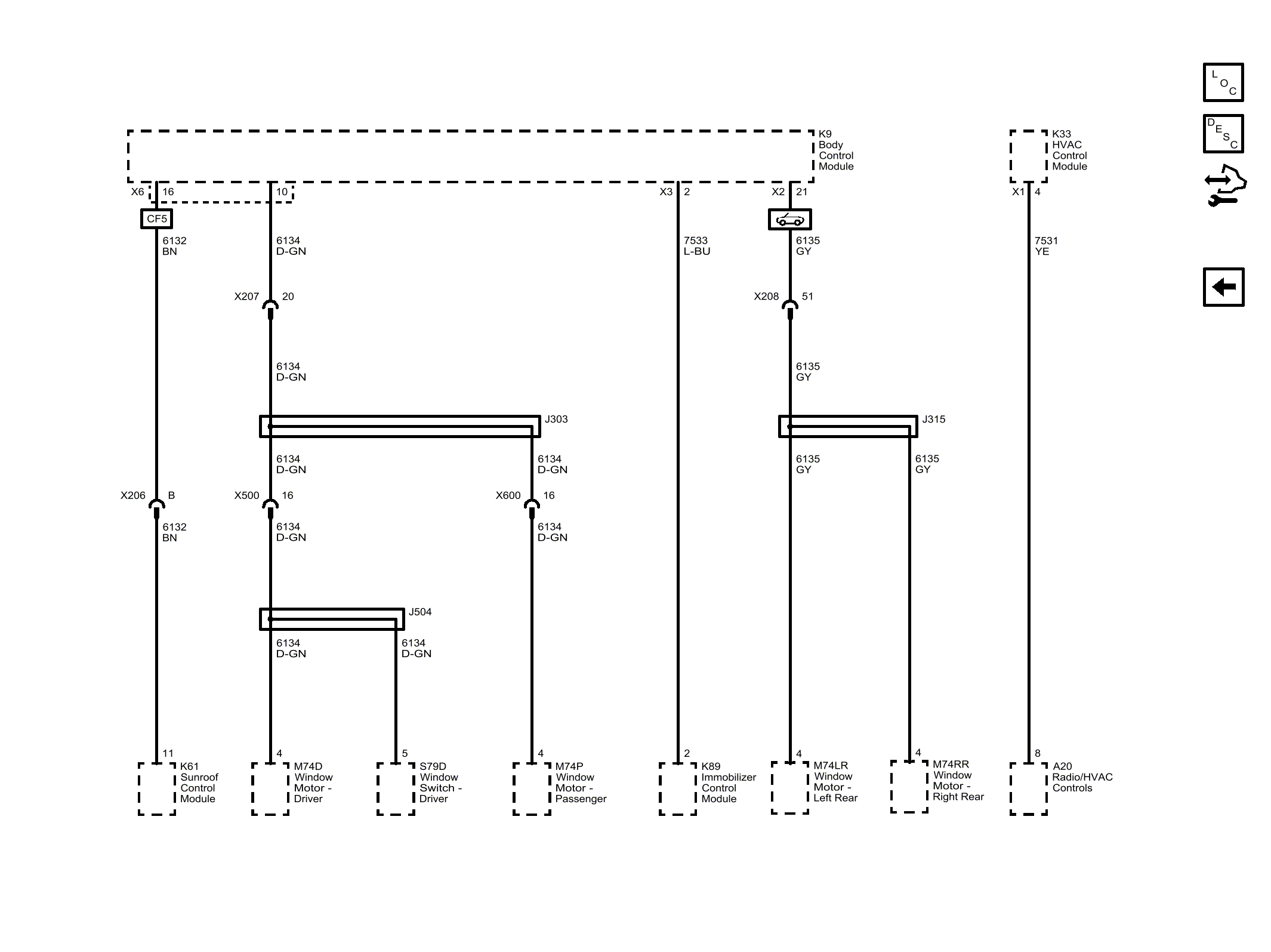

Fig 1: Linear Interconnect Network (LIN) Bus 1, 3, 4, 9, 11
GM3338818Courtesy of GENERAL MOTORS COMPANY
