OnStar Wiring Schematics

WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

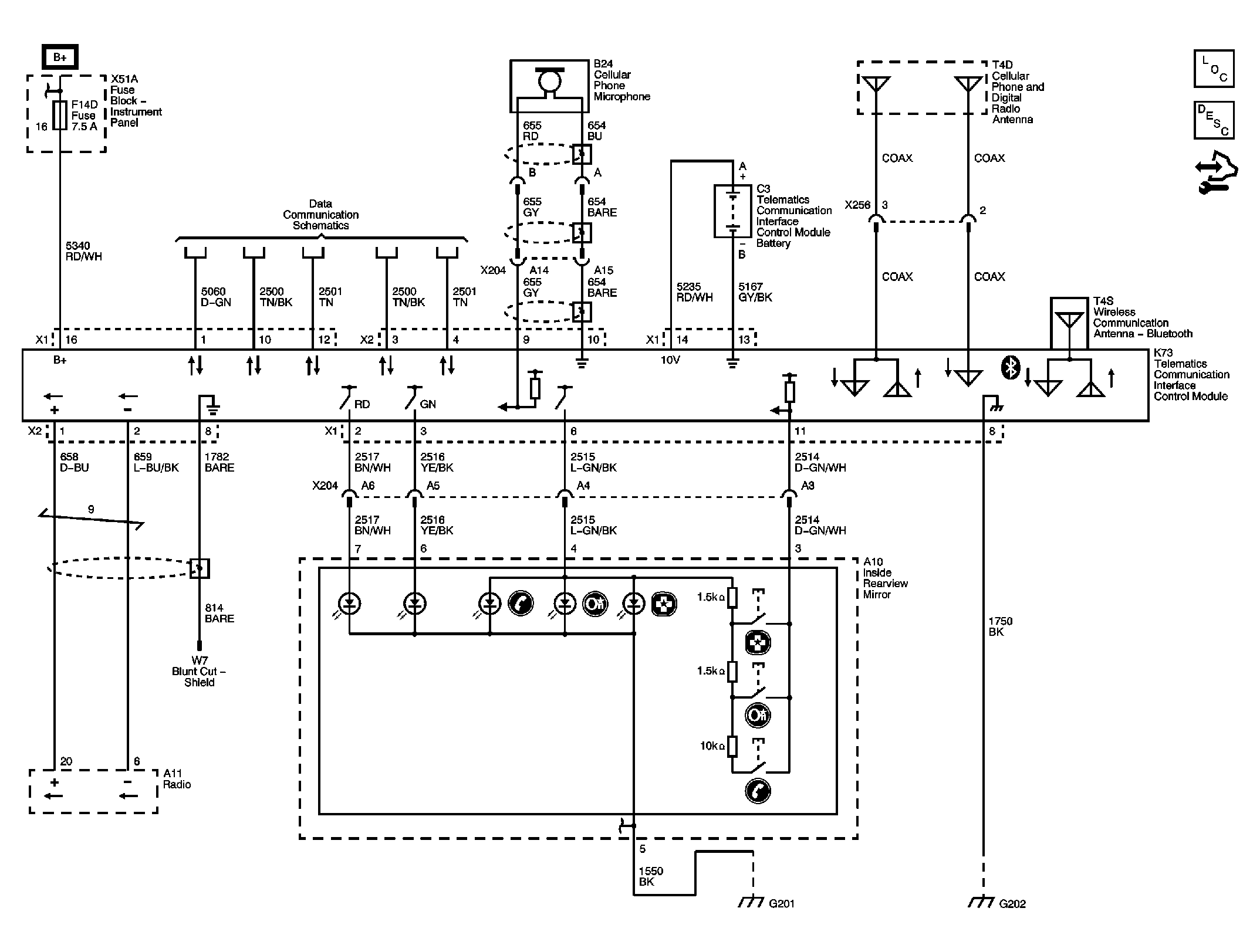

Fig 1: OnStar Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
