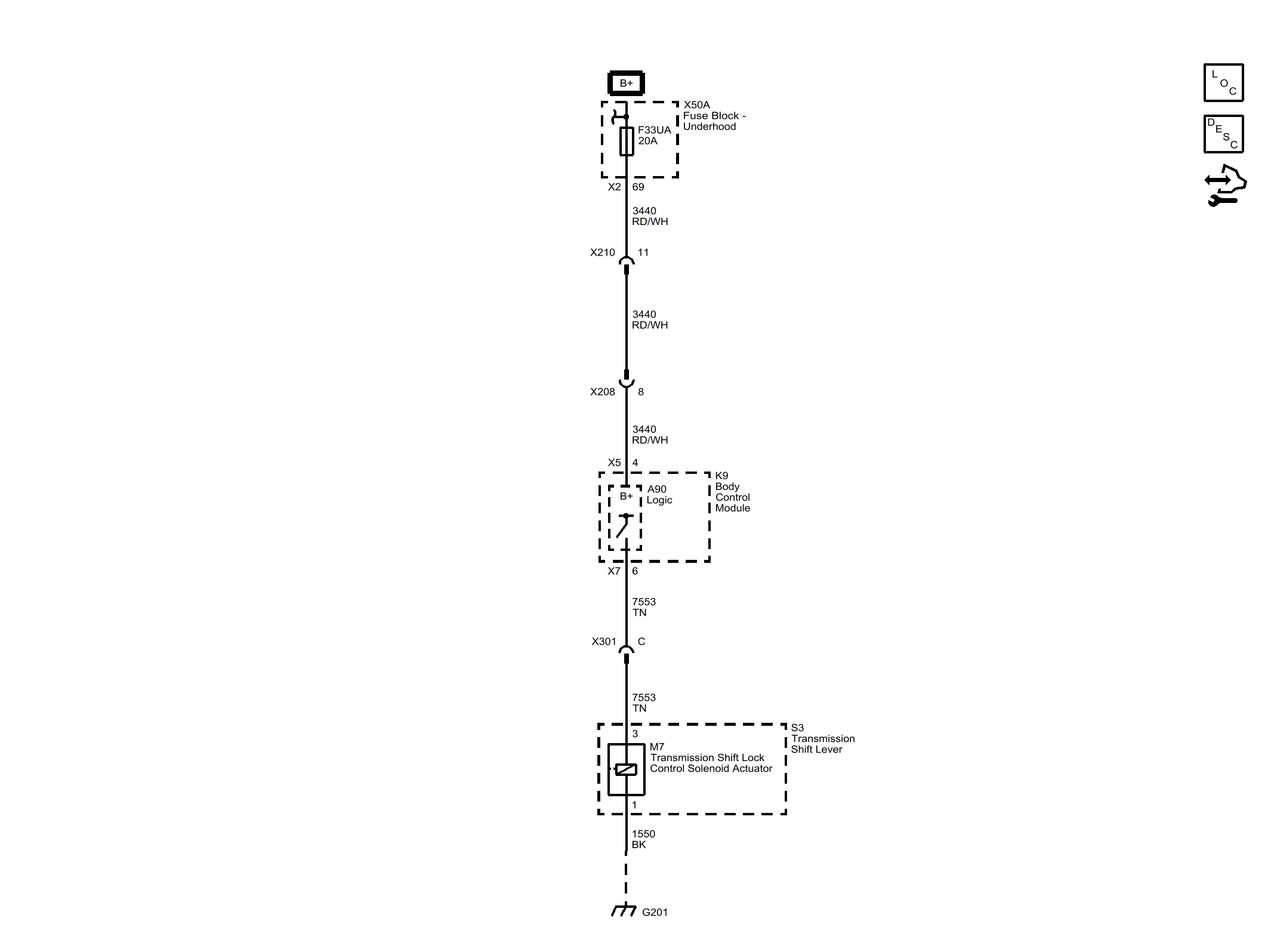

Home › Chevrolet › 2014 › Camaro LS, Automatic Trans › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › MYB, MYC or MYD
