High Speed GMLAN Wiring Schematics

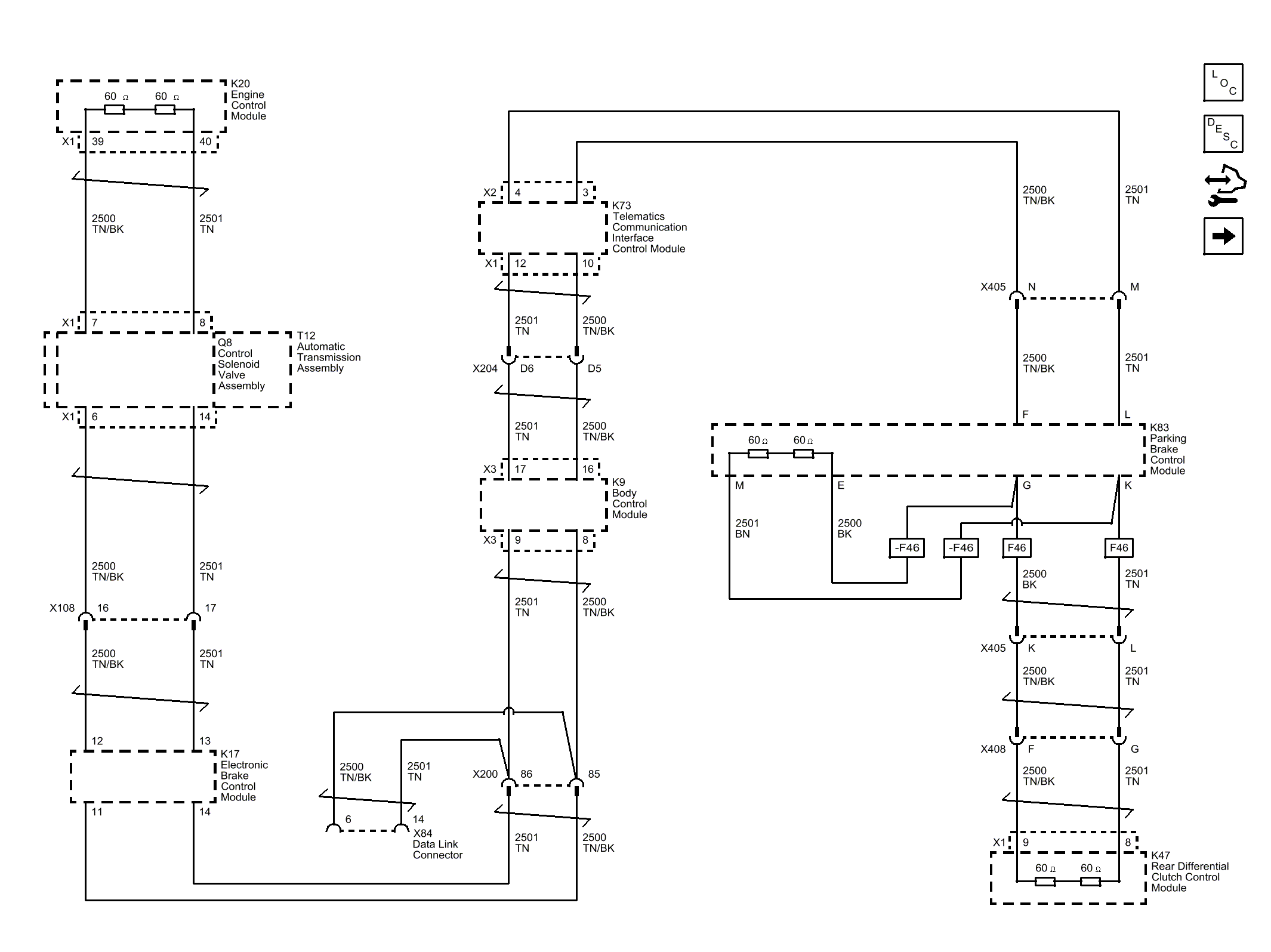

Fig 1: High Speed GMLAN Wiring Schematic
GM3330505Courtesy of GENERAL MOTORS COMPANY
