Rearview Camera Wiring Schematics

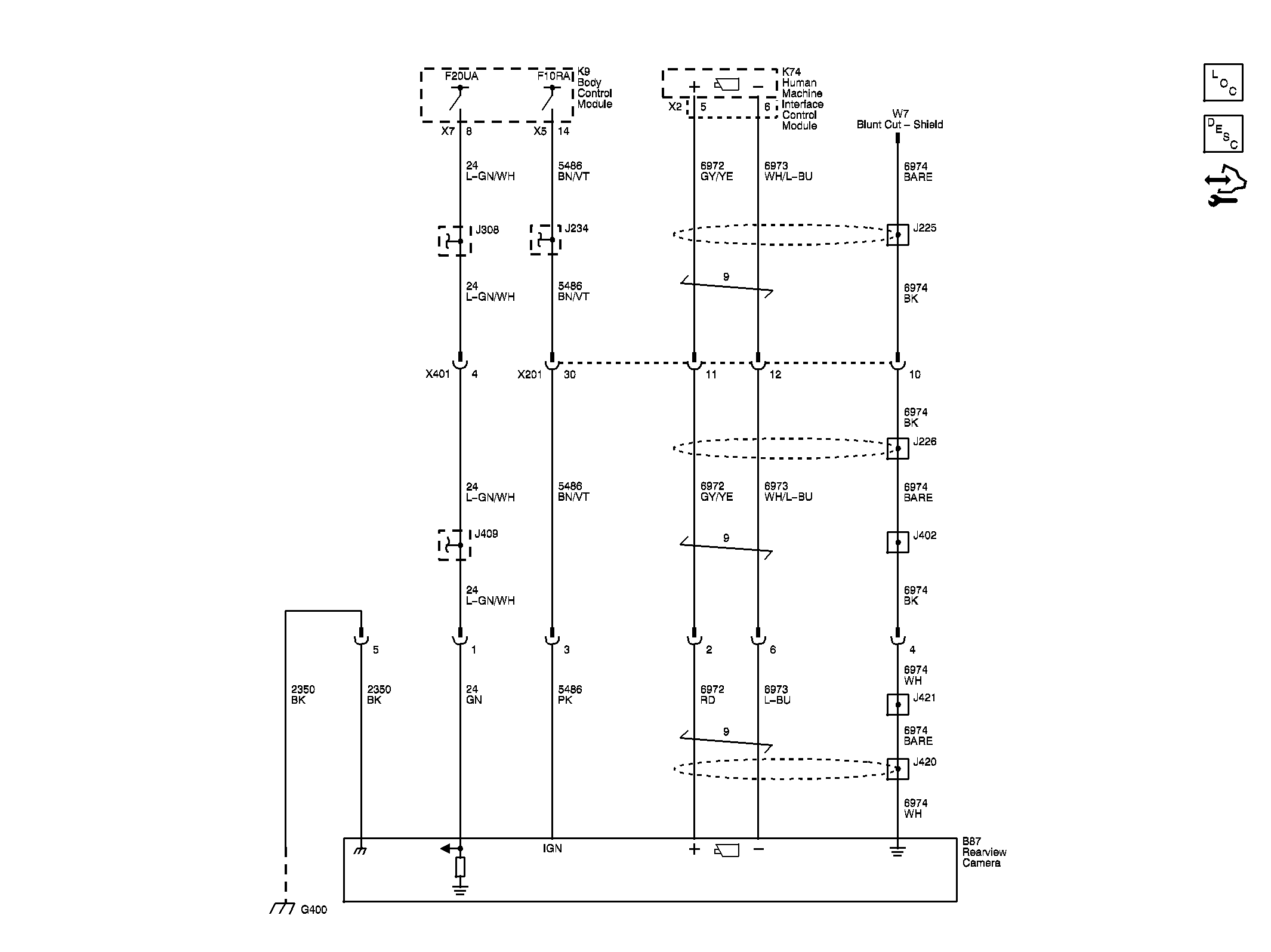

Fig 1: Rearview Camera Wiring Schematic
GM3403614Courtesy of GENERAL MOTORS COMPANY
