Radio Control Switch Replacement

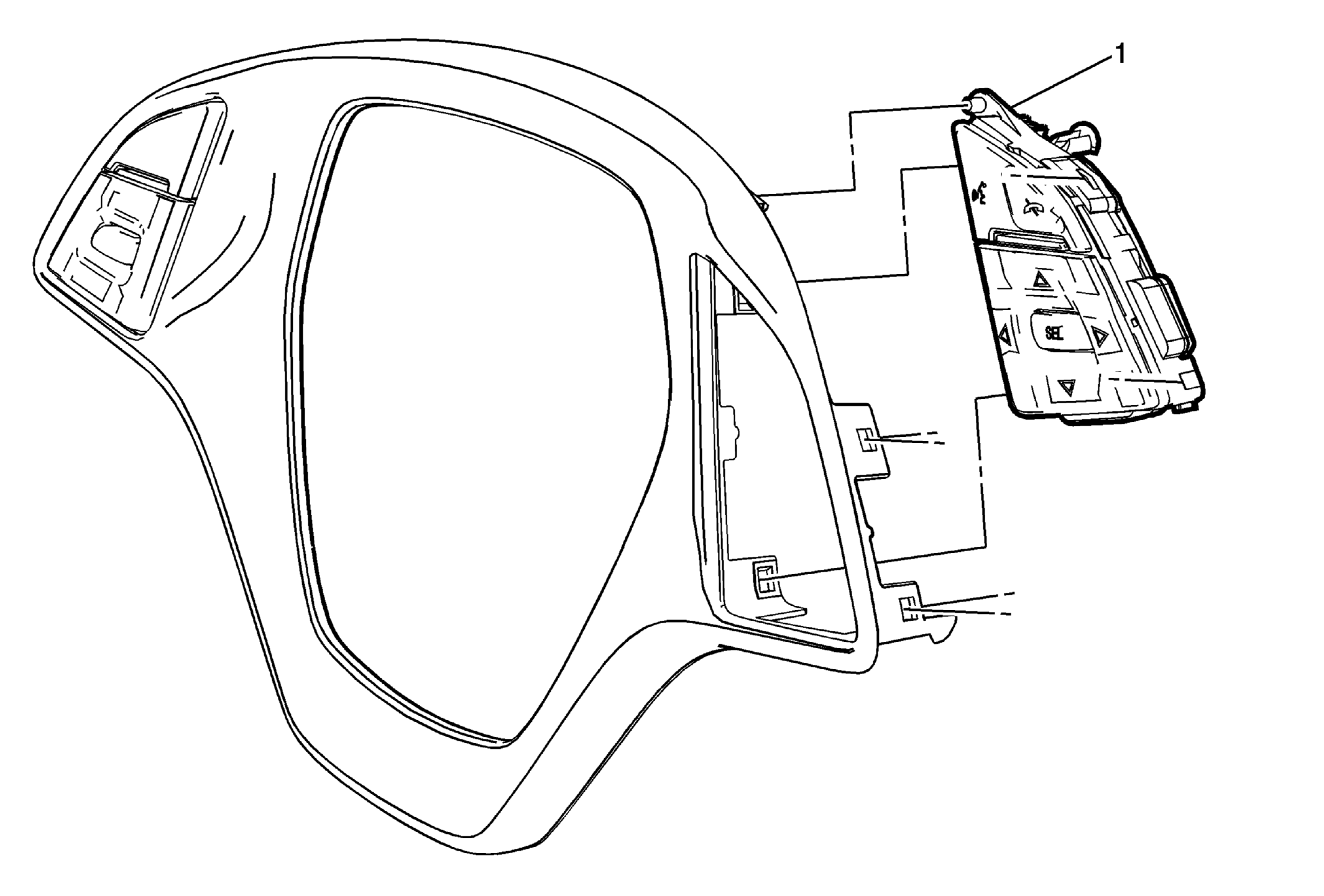

Fig 1: Radio Control Switch
GM3396147Courtesy of GENERAL MOTORS COMPANY
Radio Control Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the steering wheel spoke cover. Refer to Steering Wheel Spoke Cover Replacement .
1 Radio Control Switch
Procedure
Use the appropriate tool to depress the tabs and release the switch from the cover.
