Ignition Lock Key Transmitter Antenna Replacement - Right Side

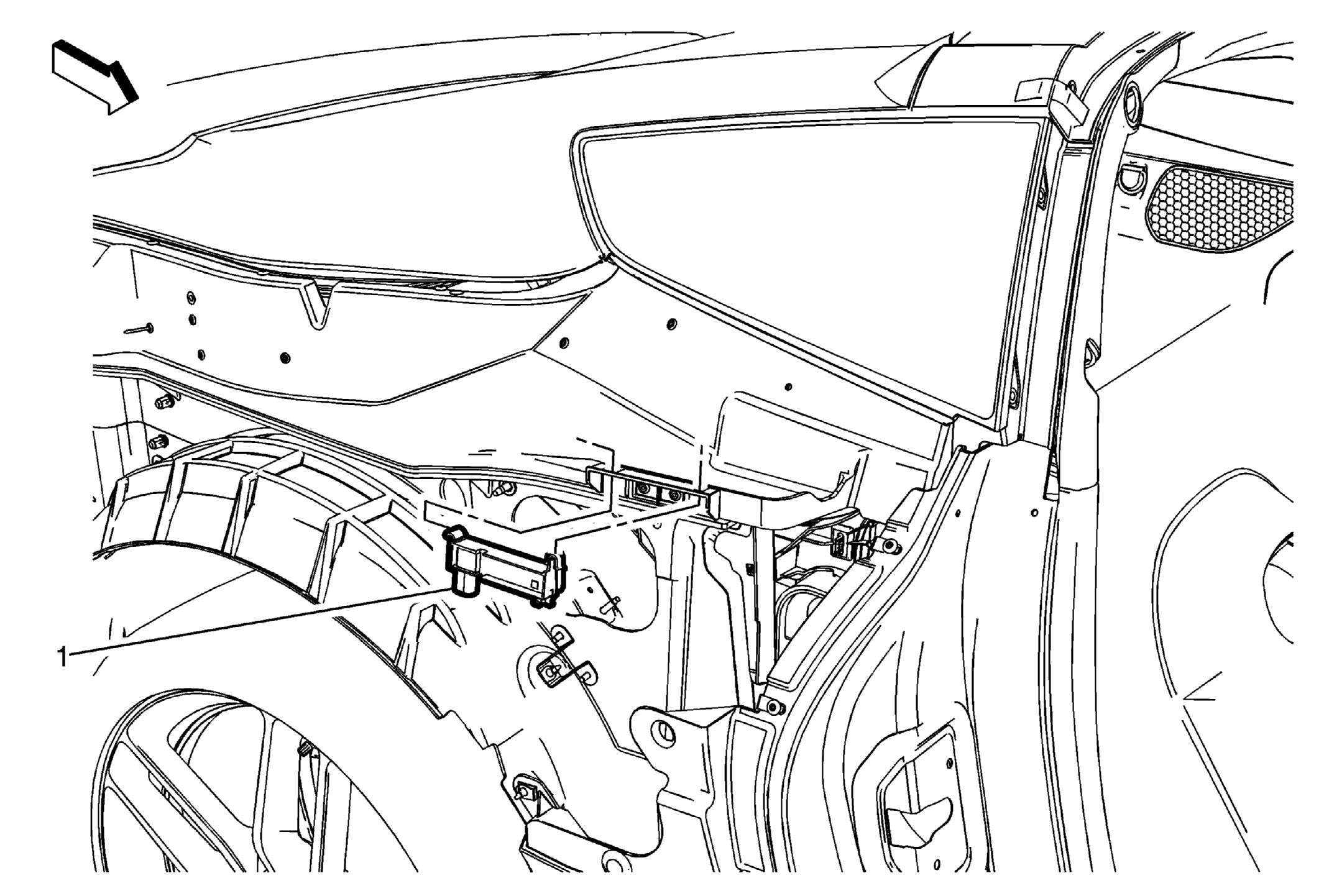

Fig 1: Ignition Lock Key Transmitter Antenna - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter outer panel - right side. Refer to Quarter Outer Panel Replacement - Right Side (Coupe) , Quarter Outer Panel Replacement - Right Side (Convertible) .
1	Ignition Lock Key Transmitter Antenna Procedures Disconnect the electrical connector. Depress the tabs and remove the ignition lock key transmitter antenna from the bracket.

Callout

Component Name

Ignition Lock Key Transmitter Antenna

Procedures

Disconnect the electrical connector.
Depress the tabs and remove the ignition lock key transmitter antenna from the bracket.
