Chevrolet
›
2014
›
Corvette 2D Convertible, Automatic Trans
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless Entry System And Remote Functions
›
Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›
Keyless Entry System (ATH) Wiring Schematics
Keyless Entry System (ATH) Wiring Schematics

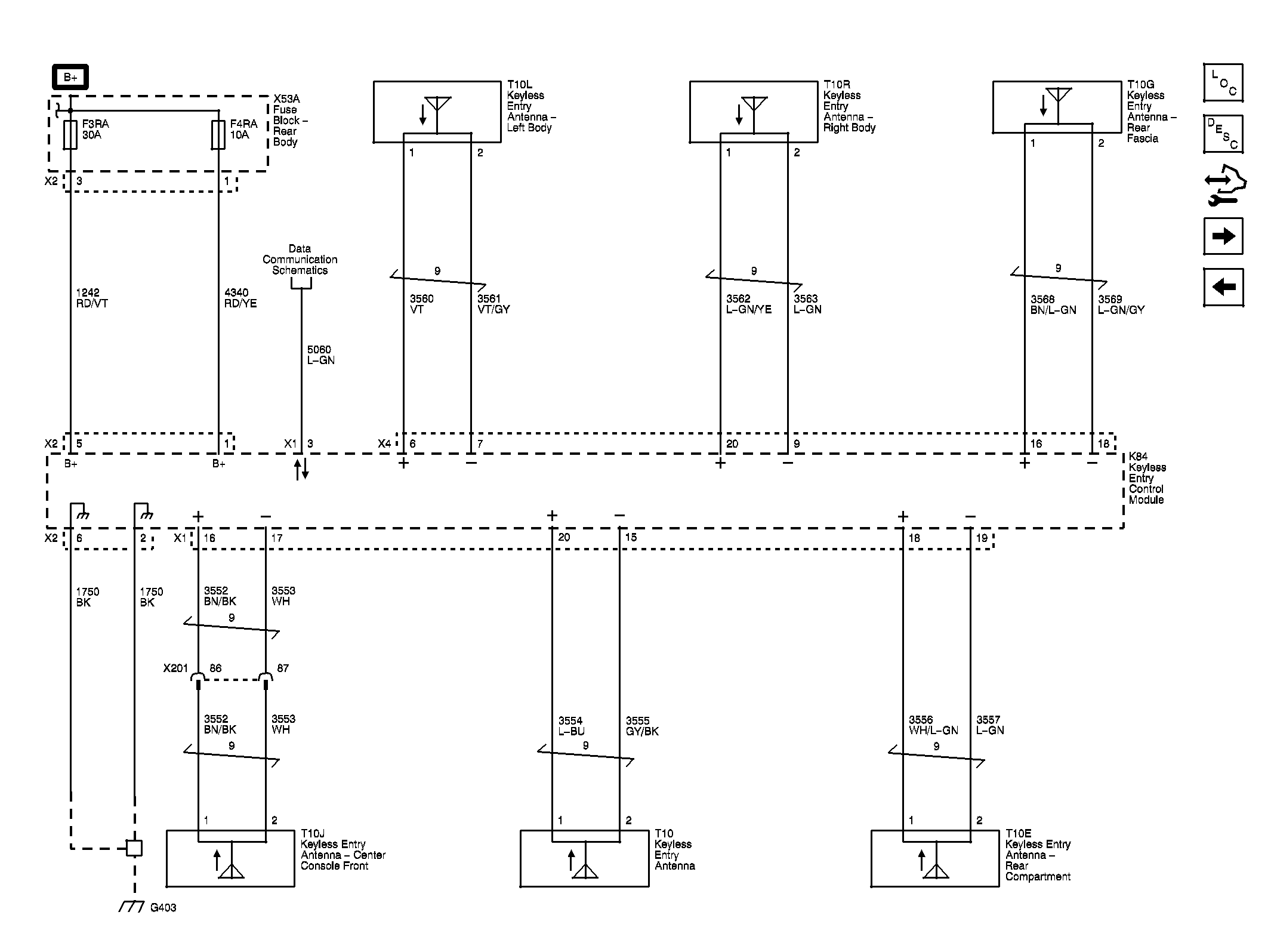

Fig 1: Keyless Entry (ATH) Wiring Schematics
