Front Side Door Window Regulator Replacement

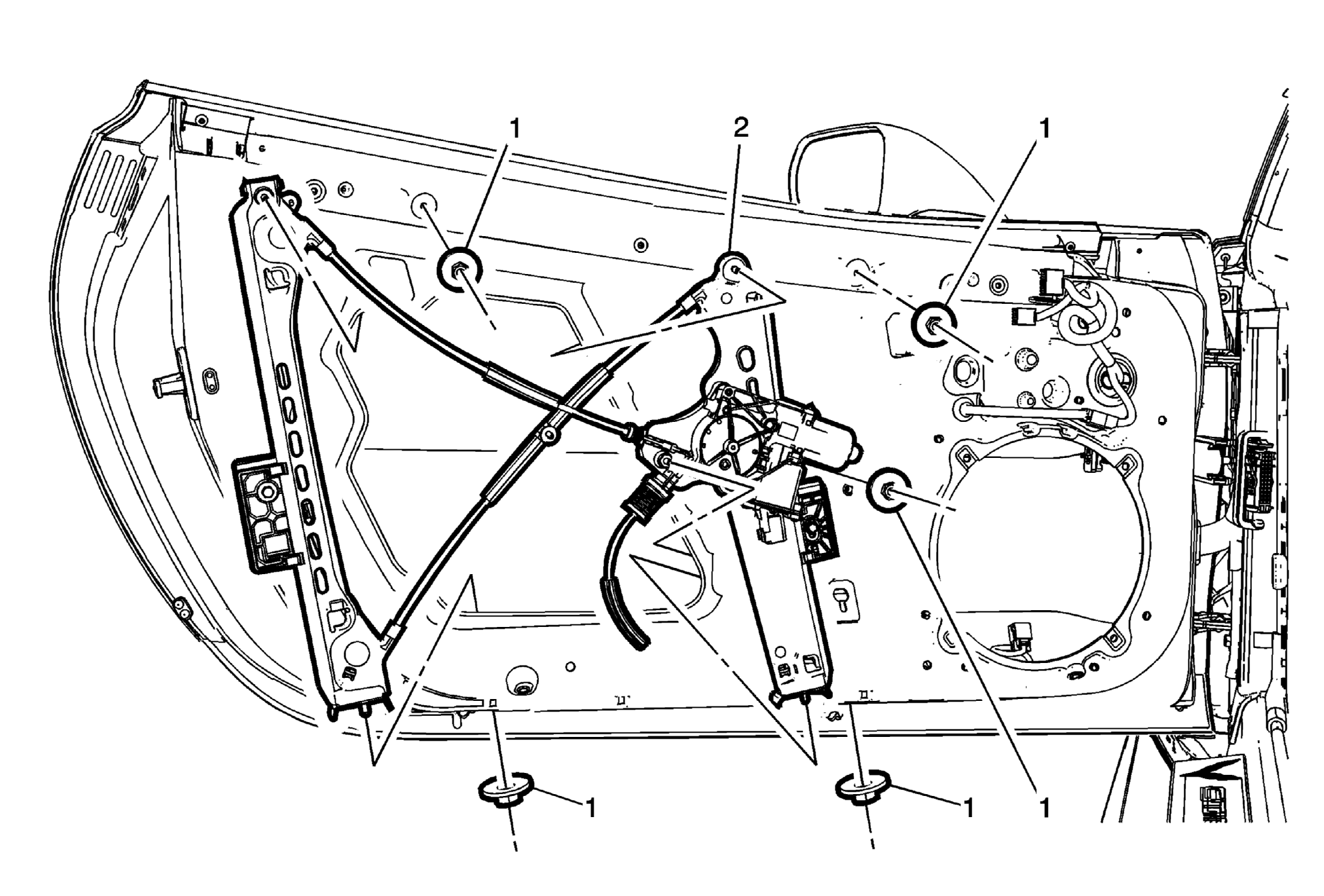

Fig 1: Front Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door window. Refer to Front Side Door Window Replacement . Remove the front side door radio speaker. Refer to Radio Front Side Door Speaker Replacement .
1	Front Side Door Window Regulator Nut (Qty: 5) Tighten 11 N.m (97 lb in)
2	Front Side Door Window Regulator Procedure Transfer the power window motor and program after installing in the vehicle. Refer to Window Motor Programming - Express Function . NOTE: Inspect the door window for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures

Remove the front side door window. Refer to Front Side Door Window Replacement .
Remove the front side door radio speaker. Refer to Radio Front Side Door Speaker Replacement .

Front Side Door Window Regulator Nut (Qty: 5)
Tighten
11 N.m (97 lb in)

Front Side Door Window Regulator
Procedure
Transfer the power window motor and program after installing in the vehicle. Refer to Window Motor Programming - Express Function .

NOTE:

Inspect the door window for proper operation before installing the door trim.
