Power, Ground and Data Communications Wiring Schematics

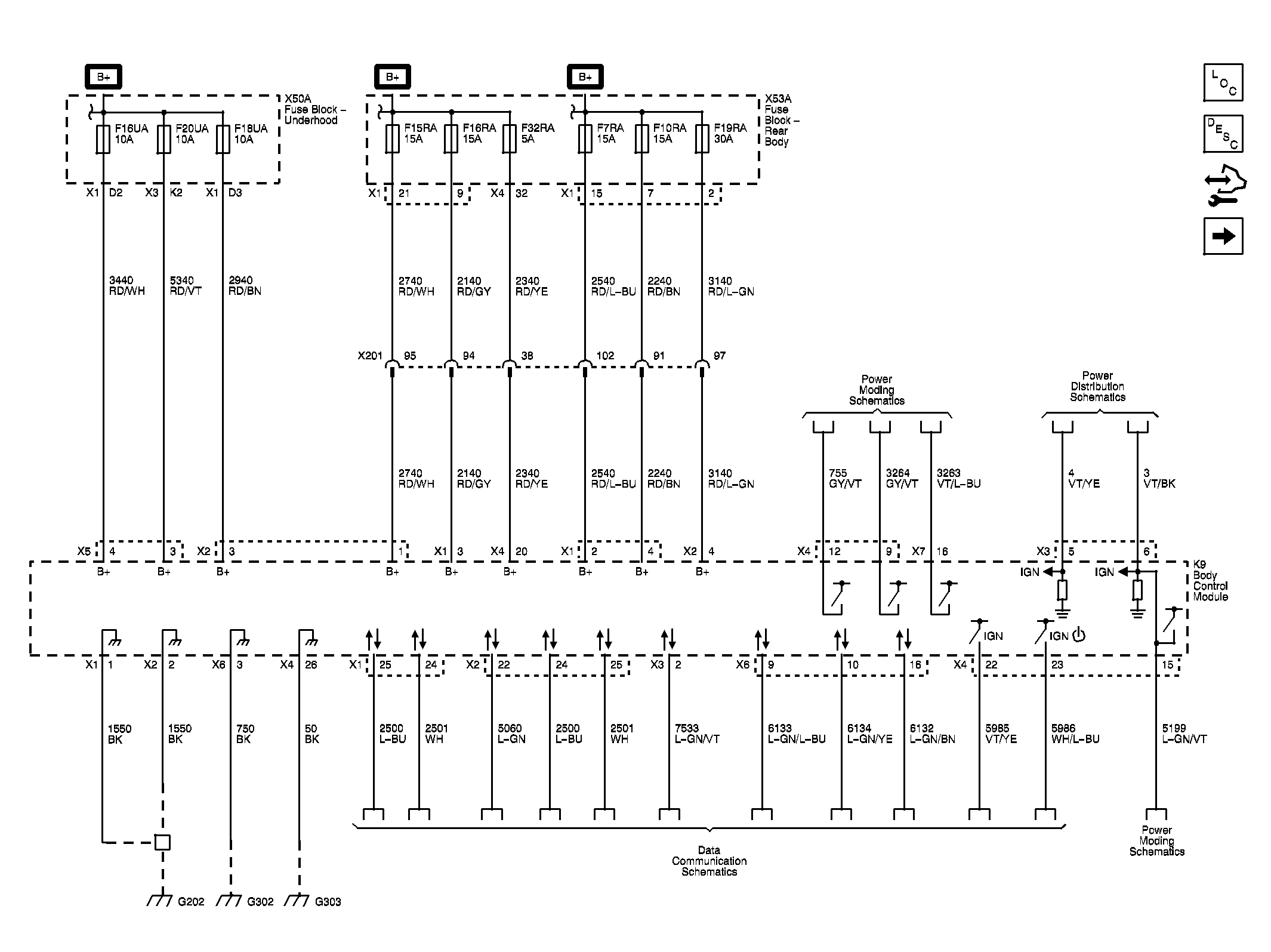

Fig 1: Power, Ground and Data Communications Wiring Schematic
GM3396835Courtesy of GENERAL MOTORS COMPANY
