Chevrolet
›
2014
›
Corvette 2D Convertible, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Body Control System Wiring Schematics
›
Subsystem References (2 of 3) Wiring Schematics
Subsystem References (2 of 3) Wiring Schematics

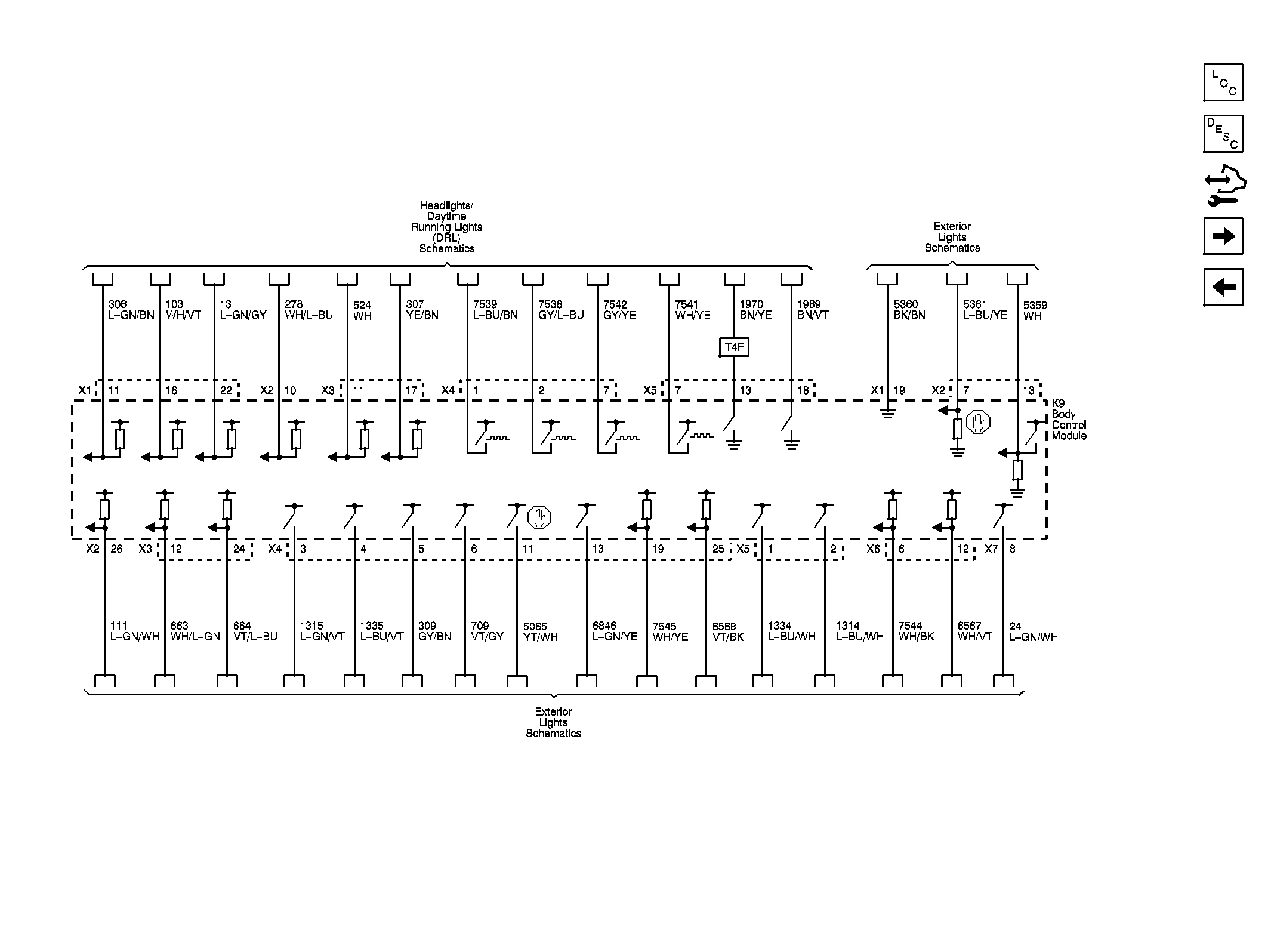

Fig 1: Subsystem References (2 of 3) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
