Subsystem References (3 of 3) Wiring Schematics

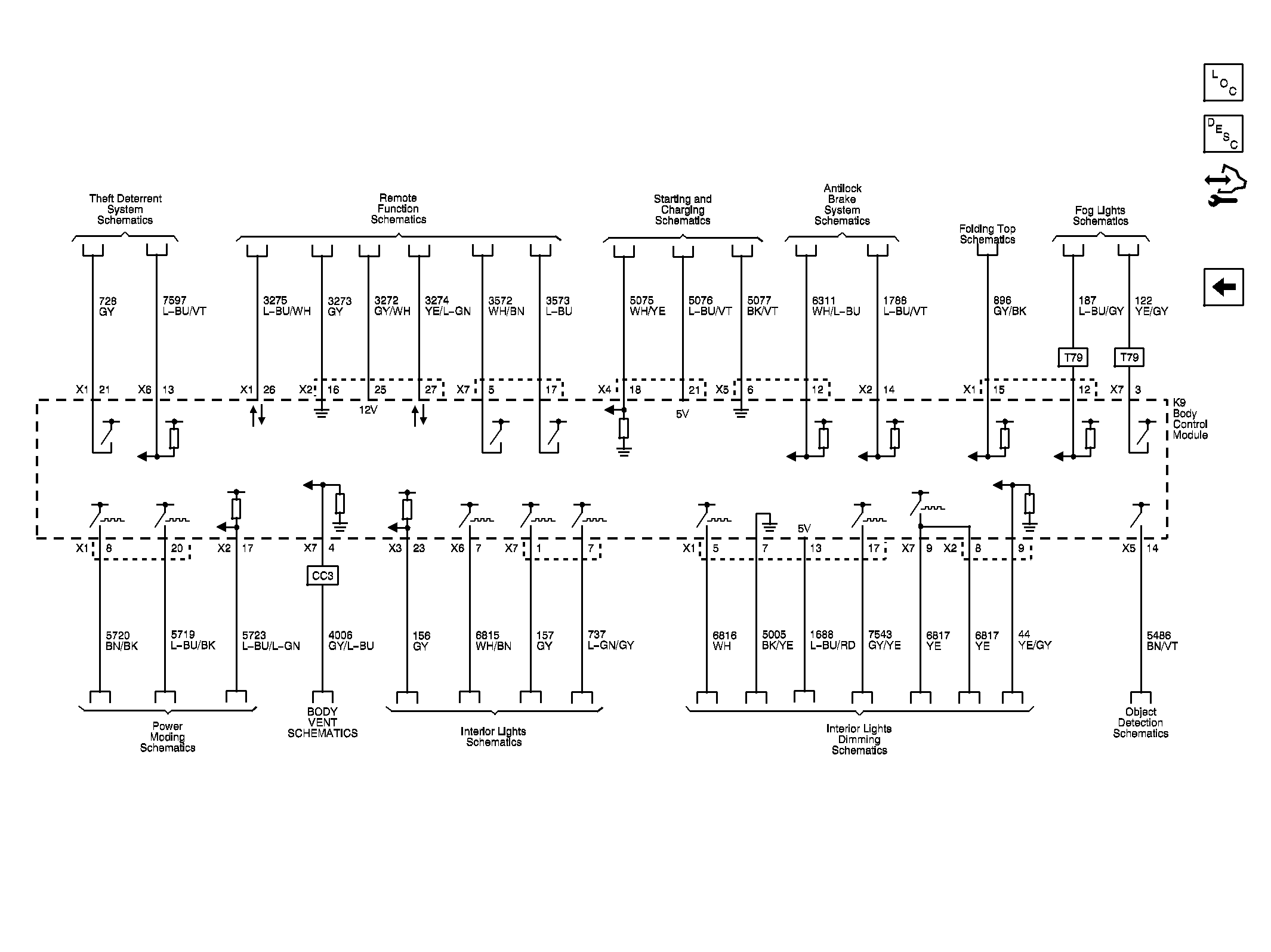

Fig 1: Subsystem References (3 of 3) Wiring Schematic
GM3396926Courtesy of GENERAL MOTORS COMPANY
