Chassis High Speed GMLAN Wiring Schematics

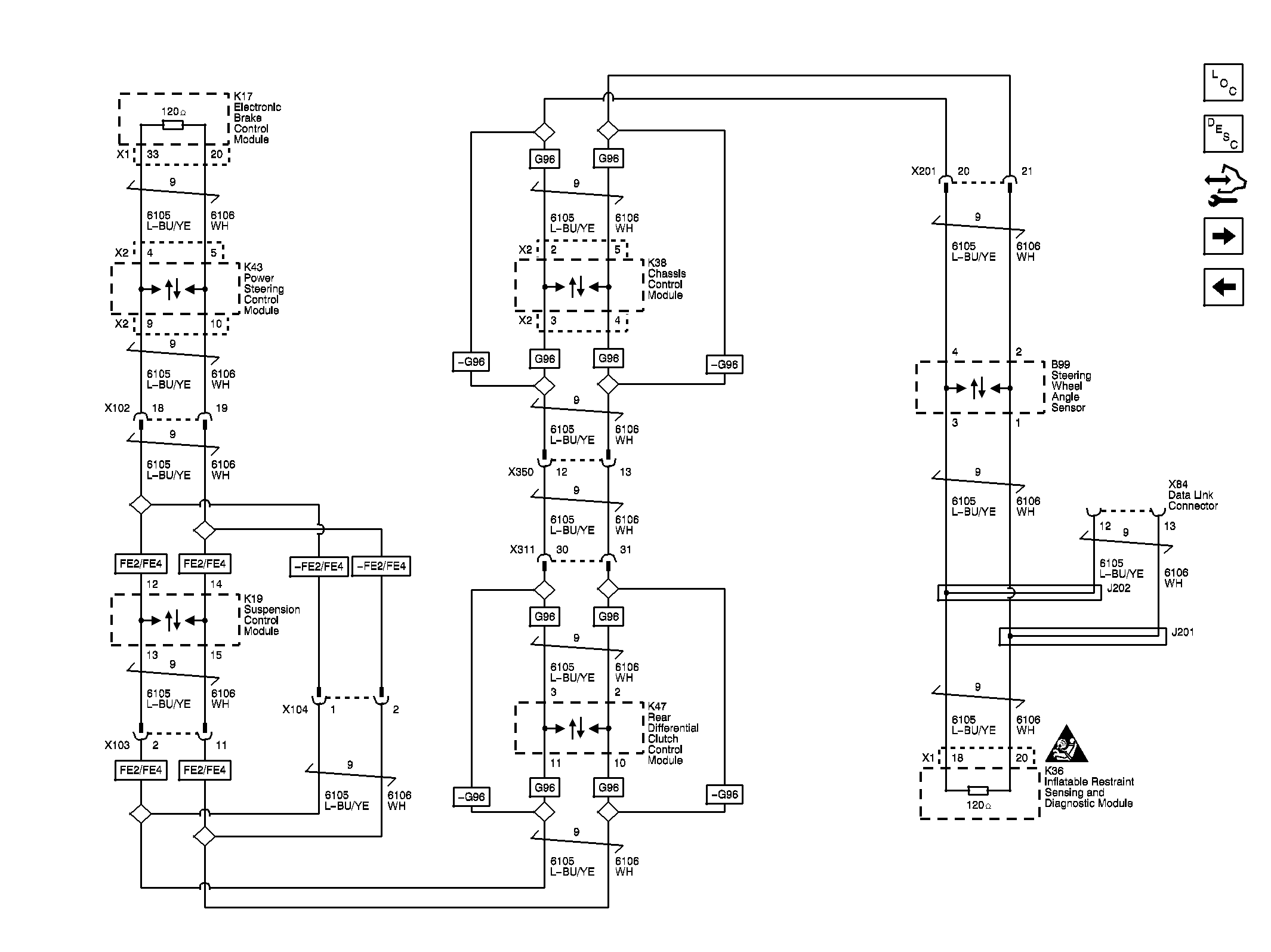

Fig 1: Chassis High Speed GMLAN Wiring Schematic
GM3396183Courtesy of GENERAL MOTORS COMPANY
