GMLAN Communication Enable Wiring Schematics

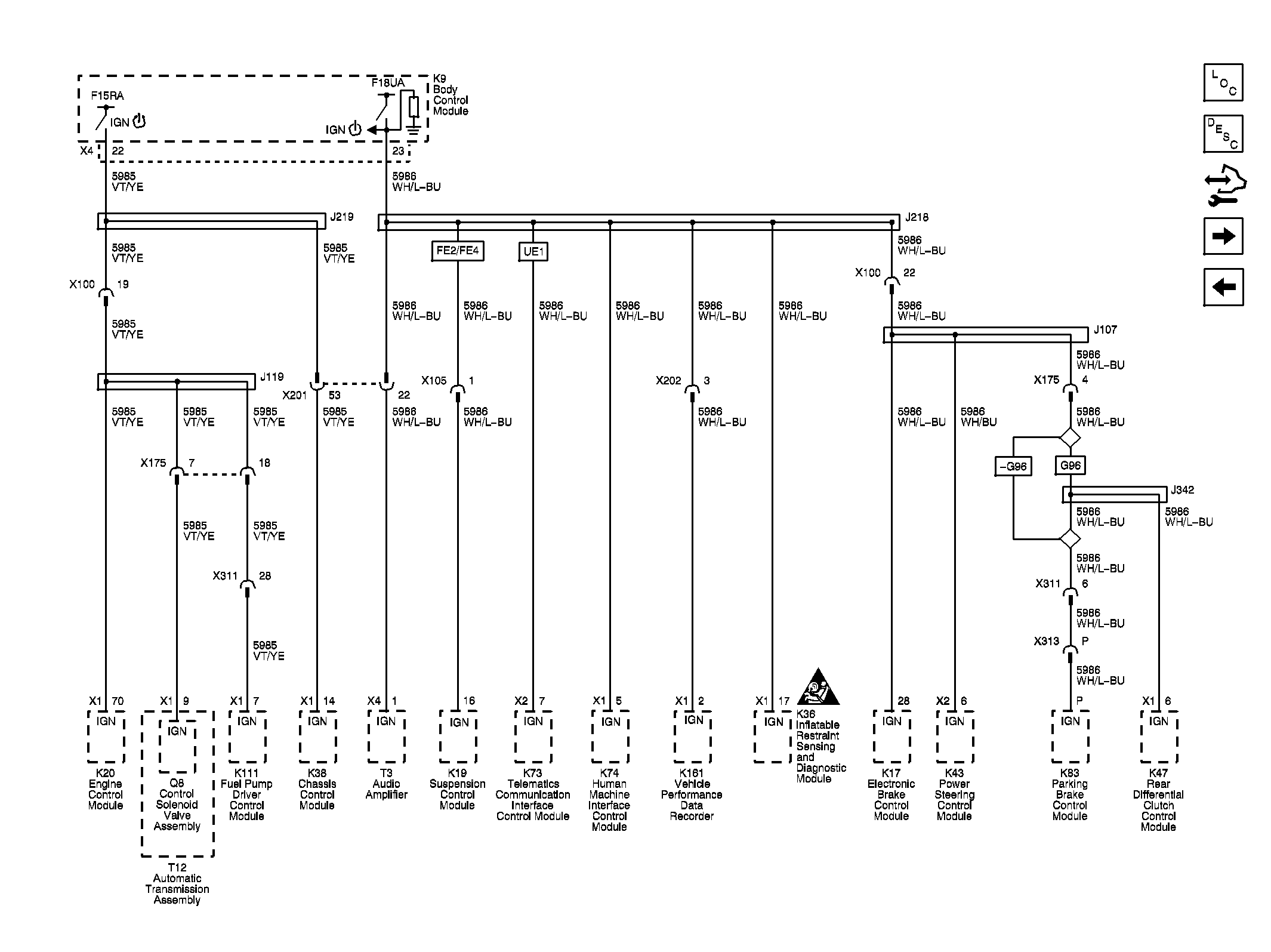

Fig 1: GMLAN Communication Enable Wiring Schematic
GM3396224Courtesy of GENERAL MOTORS COMPANY
