Front Seat Belt Guide Replacement
Front Seat Belt Guide Replacement

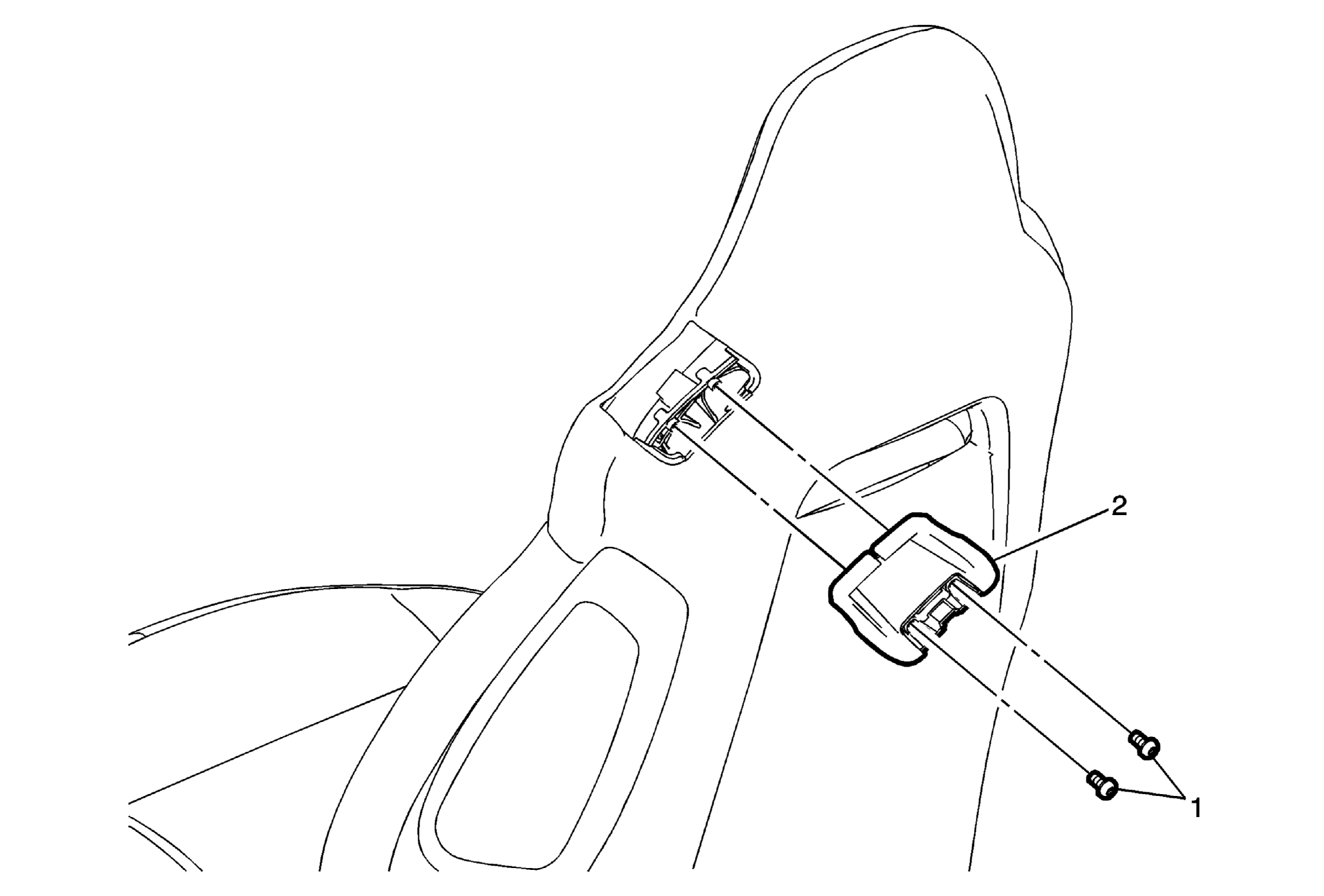

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat belt guide cap. Refer to Front Seat Belt Guide Bolt Cap Replacement . |
|
| 1 | Front Seat Belt Guide Fastener
CAUTION:
Refer to Fastener Caution . Tighten 2.3 N.m (1.7 lb ft) |
| 2 | Front Seat Belt Guide Procedure Disengage the front seat belt guide by pushing the guide forward towards the front of the seat. |
