Steering Column Electronic Lock Replacement

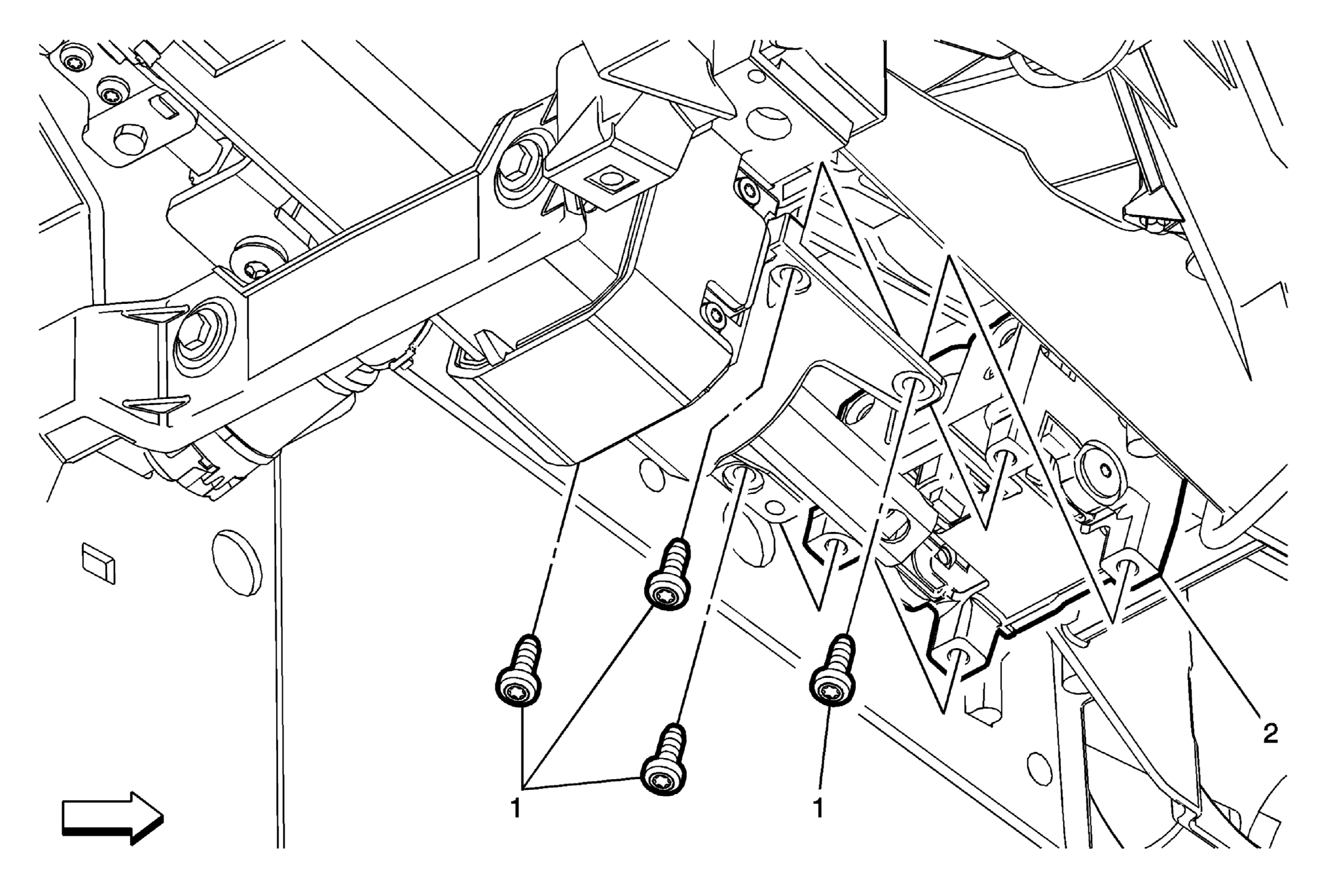

Fig 1: Steering Column Electronic Lock

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement . Disconnect the intermediate steering shaft from the steering column and collapse the shaft as far as possible. Refer to Intermediate Steering Shaft Replacement . Remove the steering column control module bracket. Refer to Steering Column Control Module Bracket Replacement .
1	Steering Column Electronic Lock Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Steering Column Electronic Lock Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
Disconnect the intermediate steering shaft from the steering column and collapse the shaft as far as possible. Refer to Intermediate Steering Shaft Replacement .
Remove the steering column control module bracket. Refer to Steering Column Control Module Bracket Replacement .

Steering Column Electronic Lock Bolt (Qty: 4)

CAUTION:

Tighten
8 N.m (71 lb in)

Steering Column Electronic Lock
Procedure
Disconnect the electrical connector.
