Auxiliary Fan Control Module Replacement (MEL, MEP)

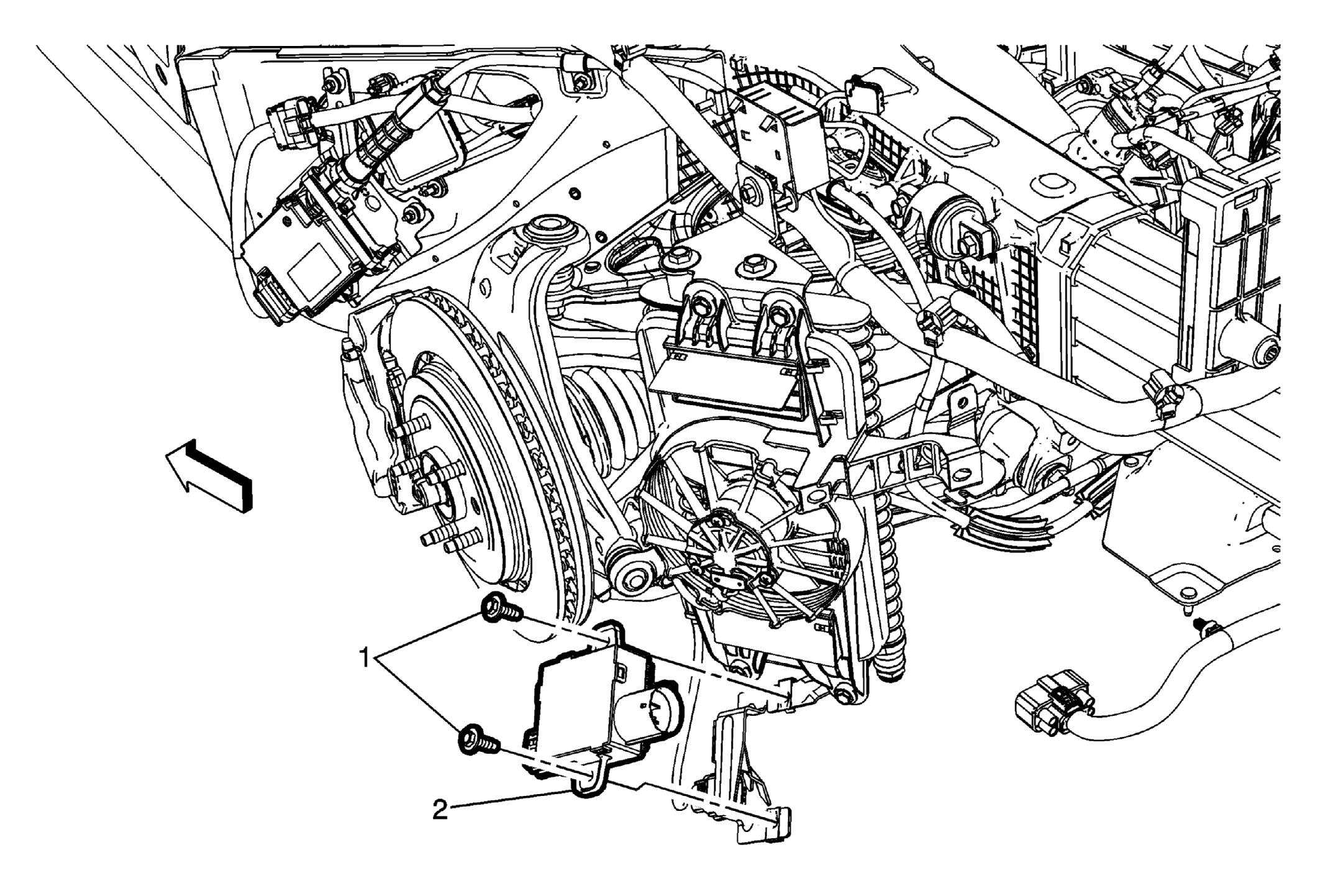

Fig 1: Auxiliary Fan Control Module (MEL, MEP)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . Disconnect the electrical connectors from the fan control module.
1	Fan Control Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 7 (62 lb in)
2	Fan Control Module

Callout

Component Name

Preliminary Procedures

Fan Control Module Bolt (Qty: 2)

CAUTION:

Tighten
7 (62 lb in)

Fan Control Module
