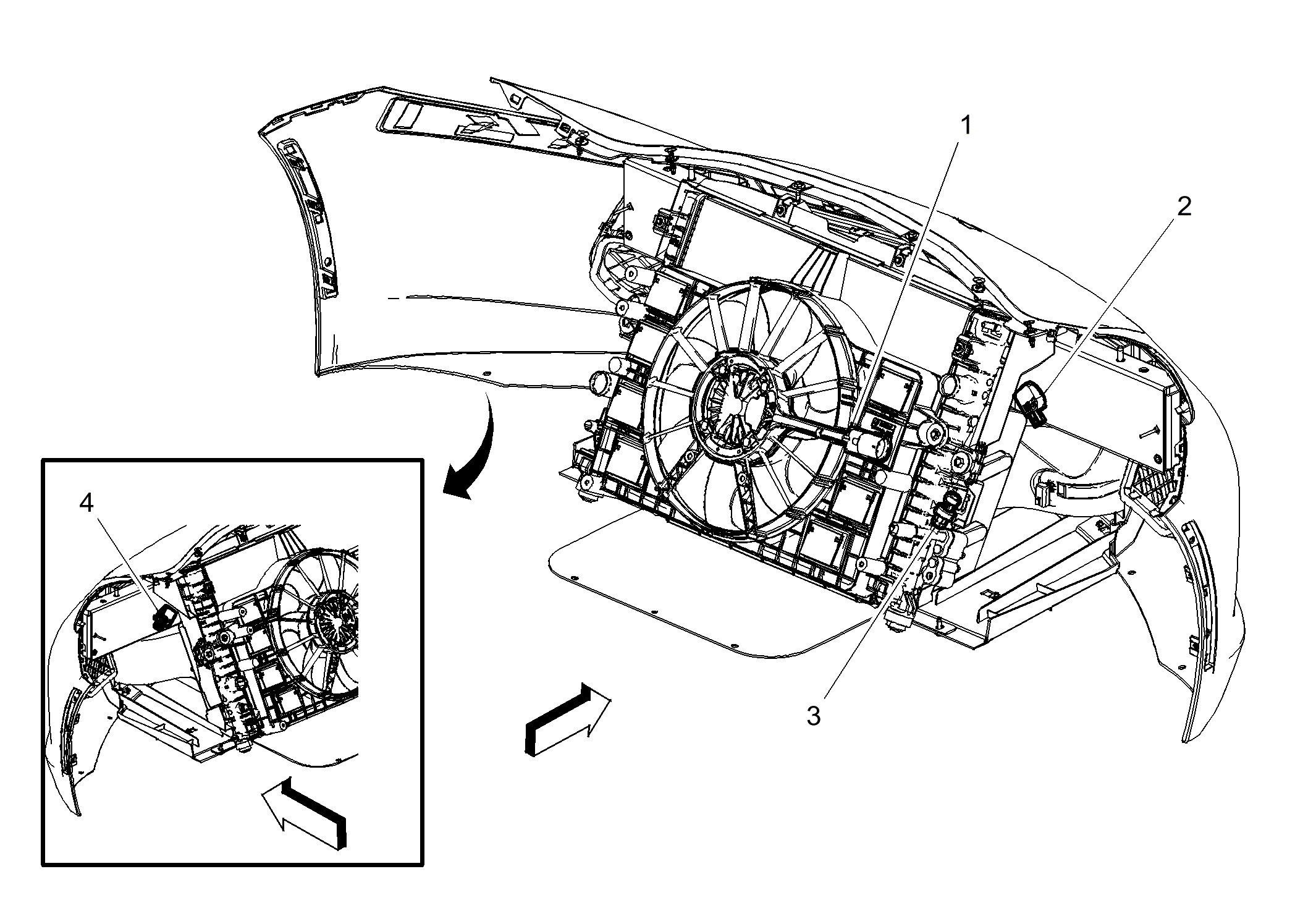

Front of Engine Compartment Components
Front of Engine Compartment Components
| Items |
|---|
| 1: K22 Cooling Fan Control Module K22 Cooling Fan Control Module X1 |
| 2: B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right |
| 3: B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor |
| 4: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
