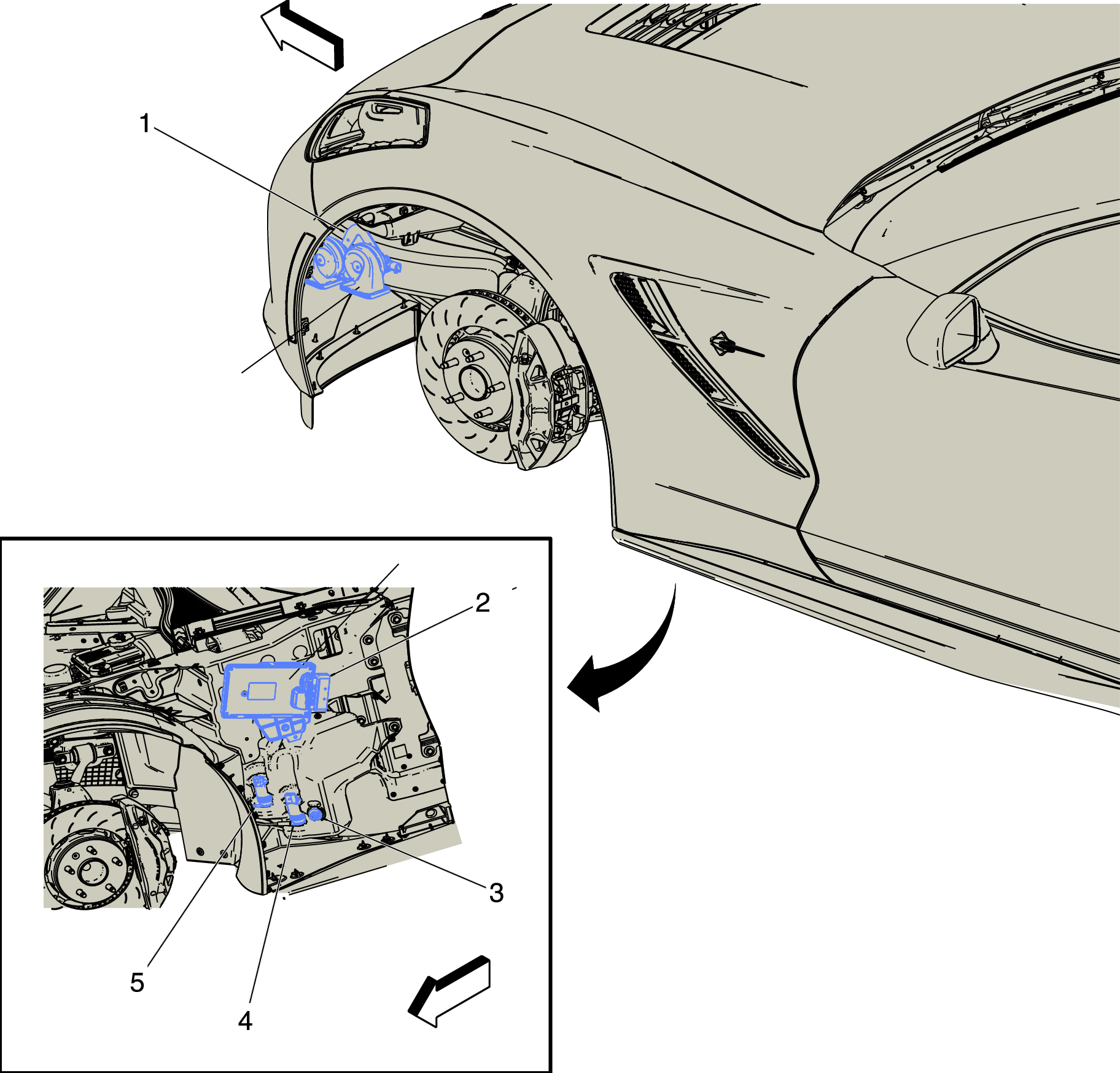

Left Front of Vehicle Components
Left Front of Vehicle Components
| Items |
| 1:
P13 Horn Assembly |
| 2:
K19 Suspension Control Module |
| 3:
B118 Windshield Washer Fluid Level Sensor |
| 4:
G24 Windshield Washer Pump |
| 5:
G16 Headlamp Washer Pump |
Courtesy of GENERAL MOTORS COMPANY
