Body Control System Wiring Schematics
›
Subsystem References (1 of 3) Wiring Schematics
Subsystem References (1 of 3) Wiring Schematics

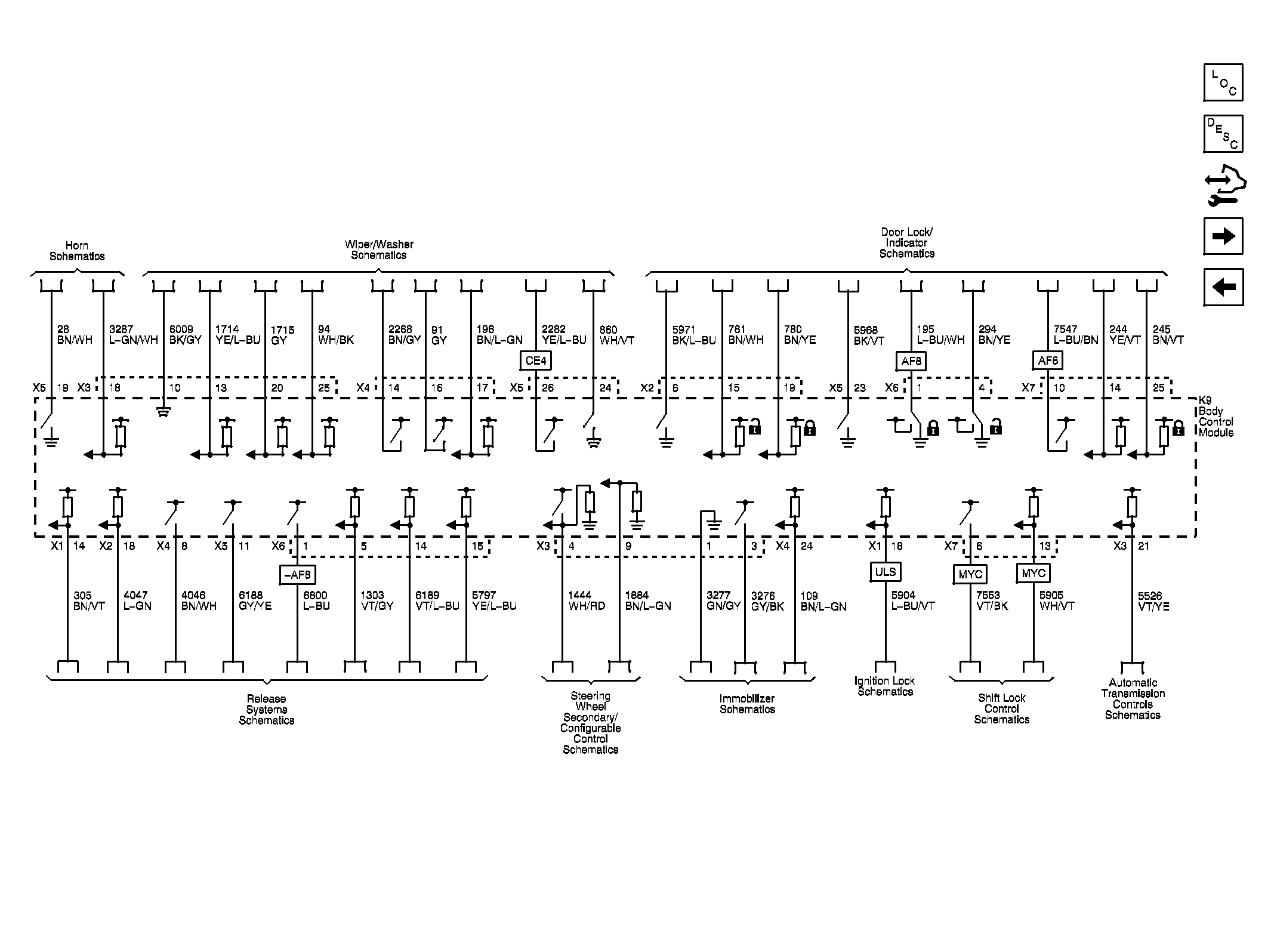

Fig 1: Subsystem References (1 of 3) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
