Removal Procedure

  1. Remove the PCV heater from the air cleaner outlet duct. Refer to Positive Crankcase Ventilation Oil Separator Assembly Replacement .

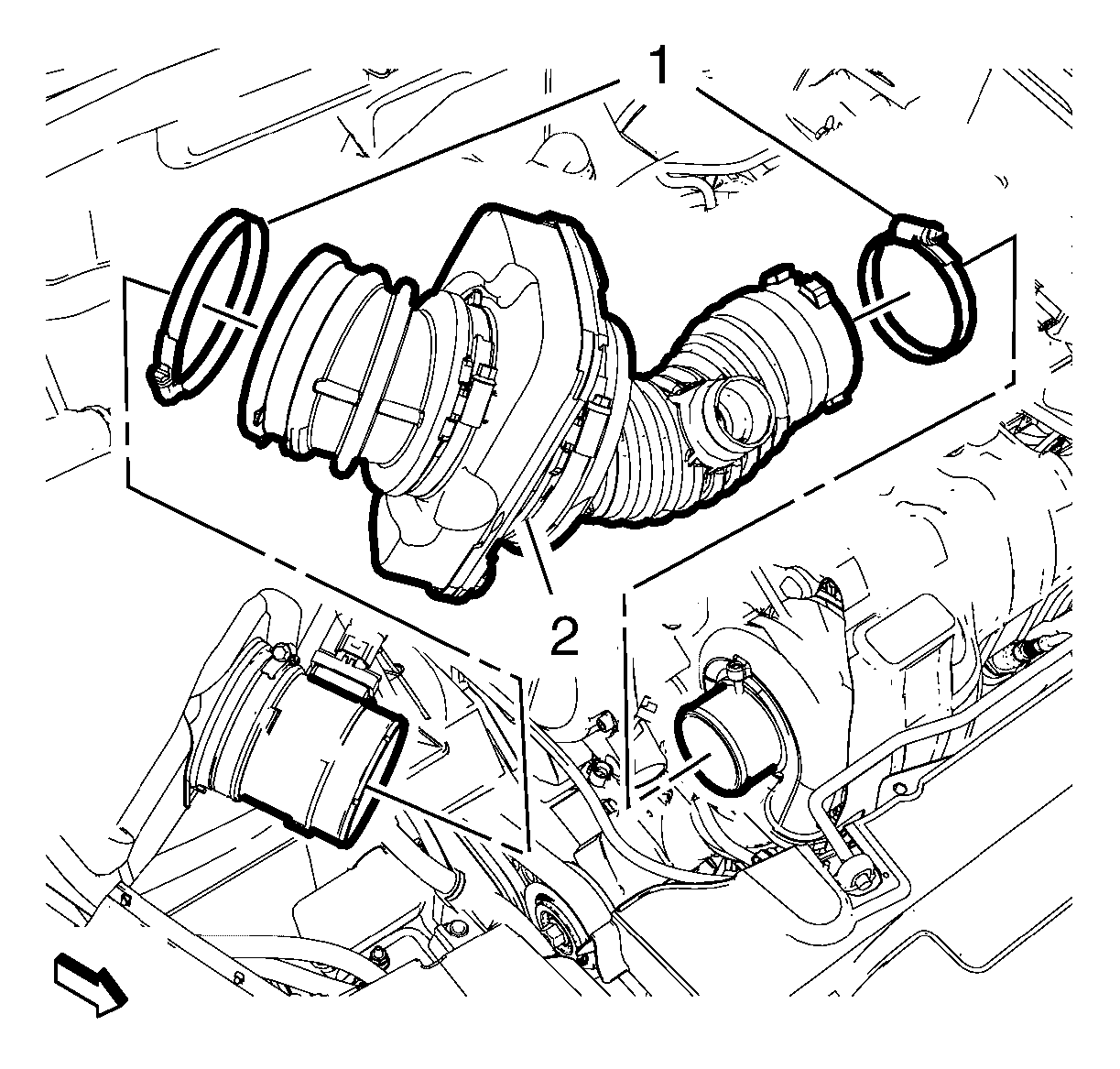

    2. Fig 1: Clamps And Air Cleaner Oulet Duct
    GM3216277Courtesy of GENERAL MOTORS COMPANY
  2. Loosen the 2 clamps (1).
  3. Remove the air cleaner outlet duct (2).
  4. Remove the 2 clamps (1) from the air cleaner outlet duct (2).
