Crankshaft Position Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY Crankshaft Position Sensor Replacement

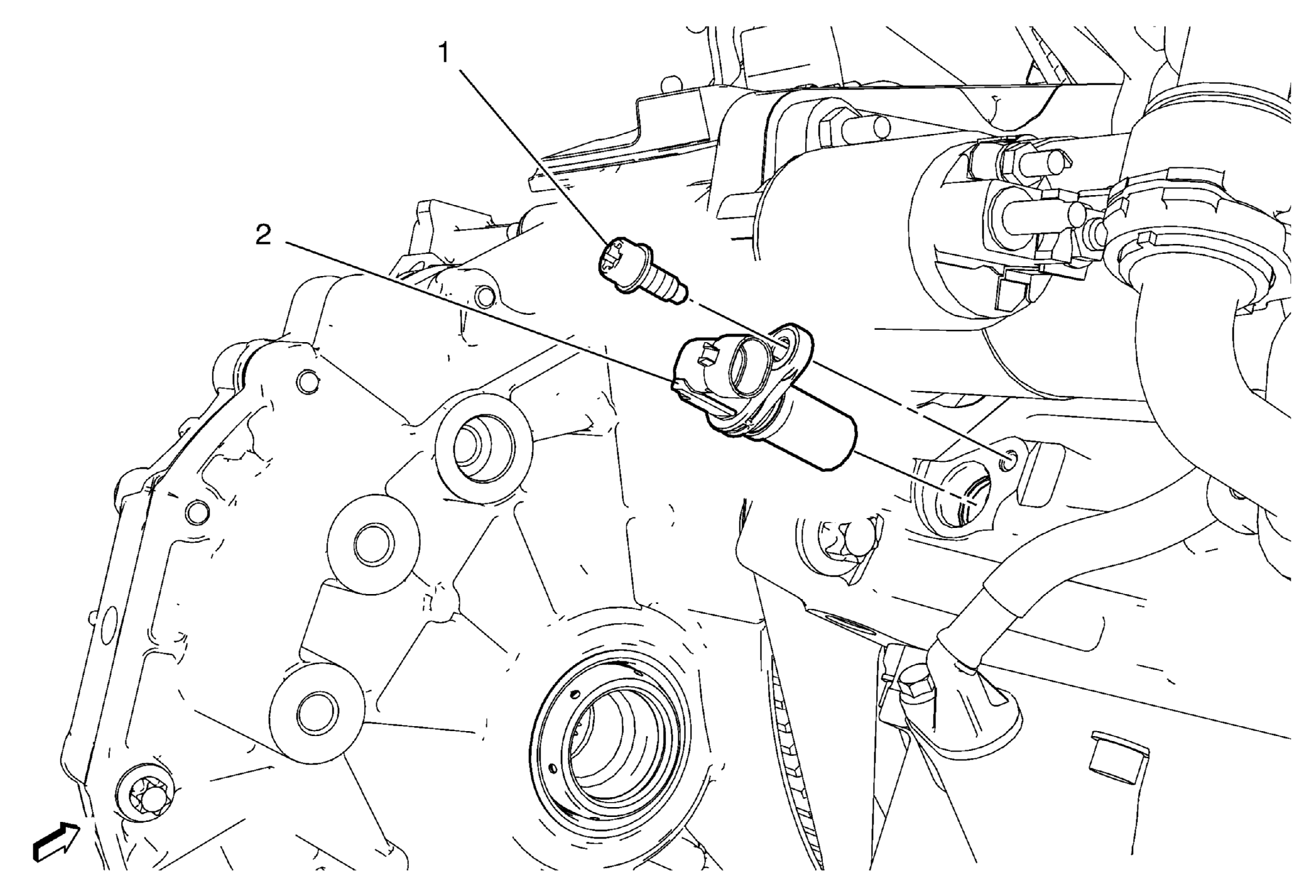

| Callout |
Component Name |
|
Preliminary Procedures
- Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
.
- Open the front compartment insulator service opening.
|
| 1 |
Crankshaft Position Sensor Bolt
Tighten
9 N.m (80 lb in) |
| 2 |
Crankshaft Position Sensor Procedure
- Disconnect the electrical connector.
- After replacement of the crankshaft position sensor, use a scan tool to perform the appropriate reset function. Refer to K20 Engine Control Module: Programming and Setup (LUZ)
|
