2014
›
Cruze Diesel
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Body Control System Wiring Schematics
›
Subsystem References (4 of 4) Wiring Schematics
Subsystem References (4 of 4) Wiring Schematics

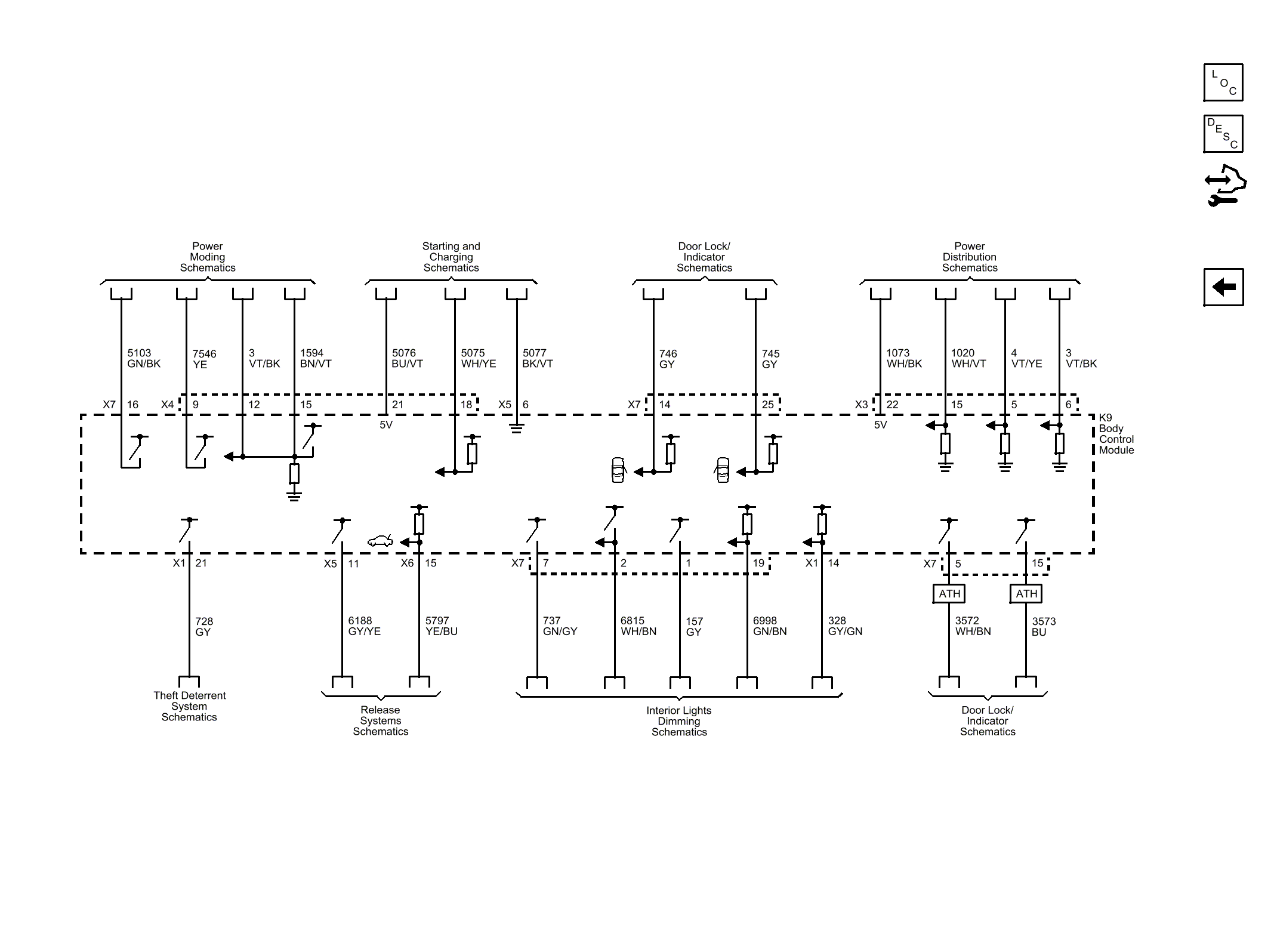

Fig 1: Subsystem References (4 of 4) Wiring Schematic
