Cruze Diesel
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
High Speed GMLAN Wiring Schematics
High Speed GMLAN Wiring Schematics

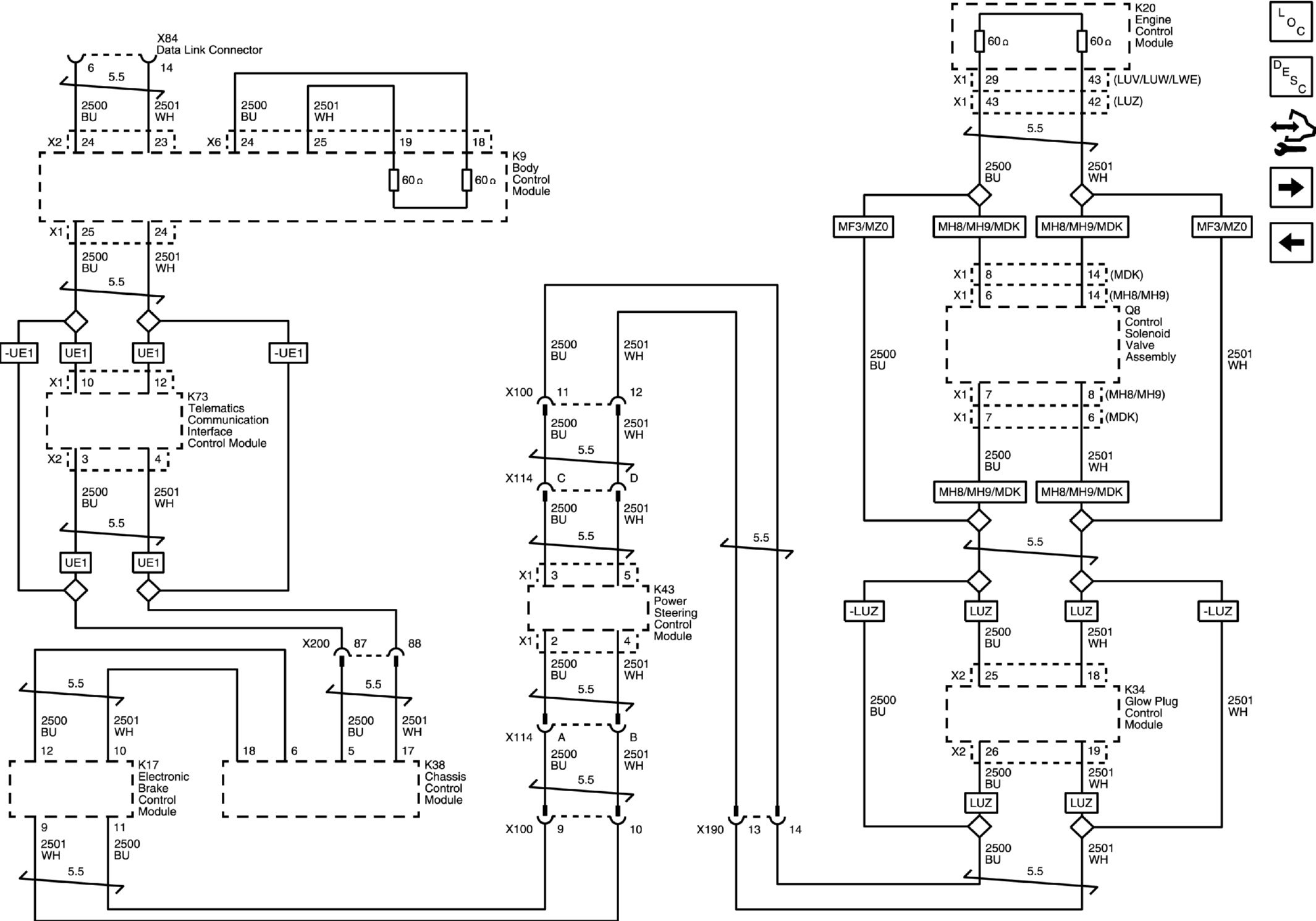

Fig 1: High Speed GMLAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
