Low Speed GMLAN Wiring Schematics

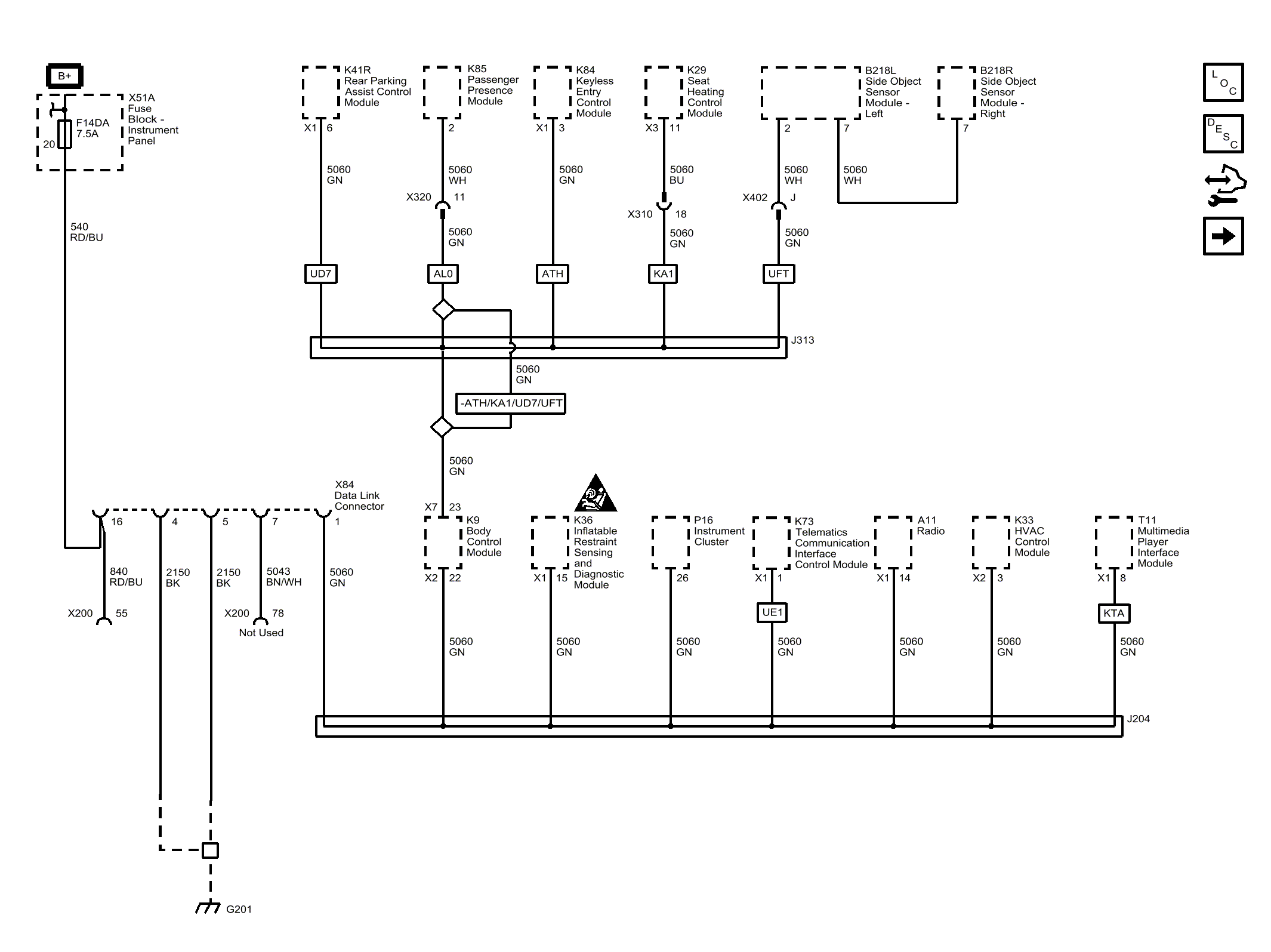

Fig 1: Low Speed GMLAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
