Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
Powertrain Expansion Bus (LUZ) Wiring Schematics
Powertrain Expansion Bus (LUZ) Wiring Schematics

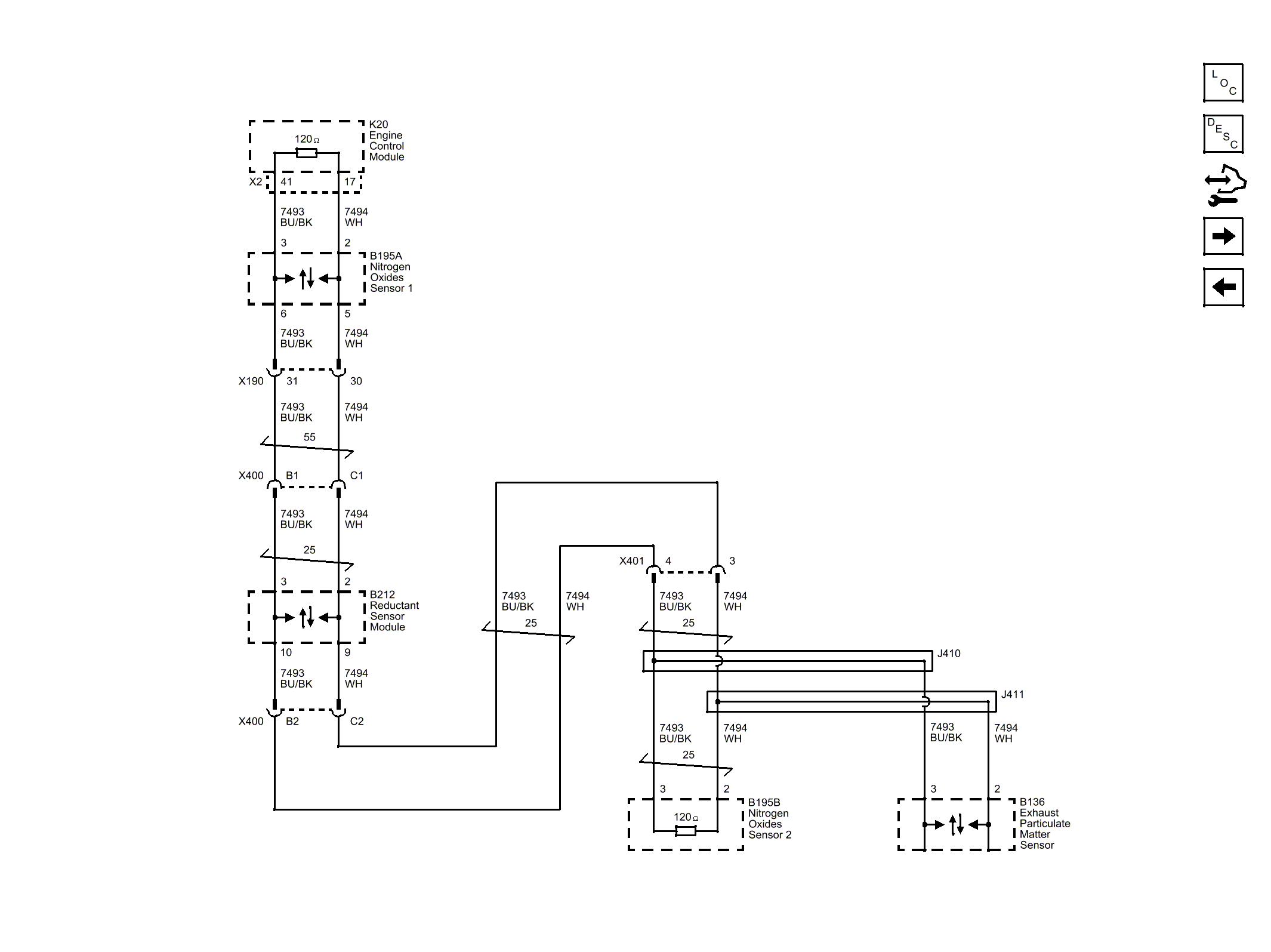

Fig 1: Powertrain Expansion Bus (LUZ) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
