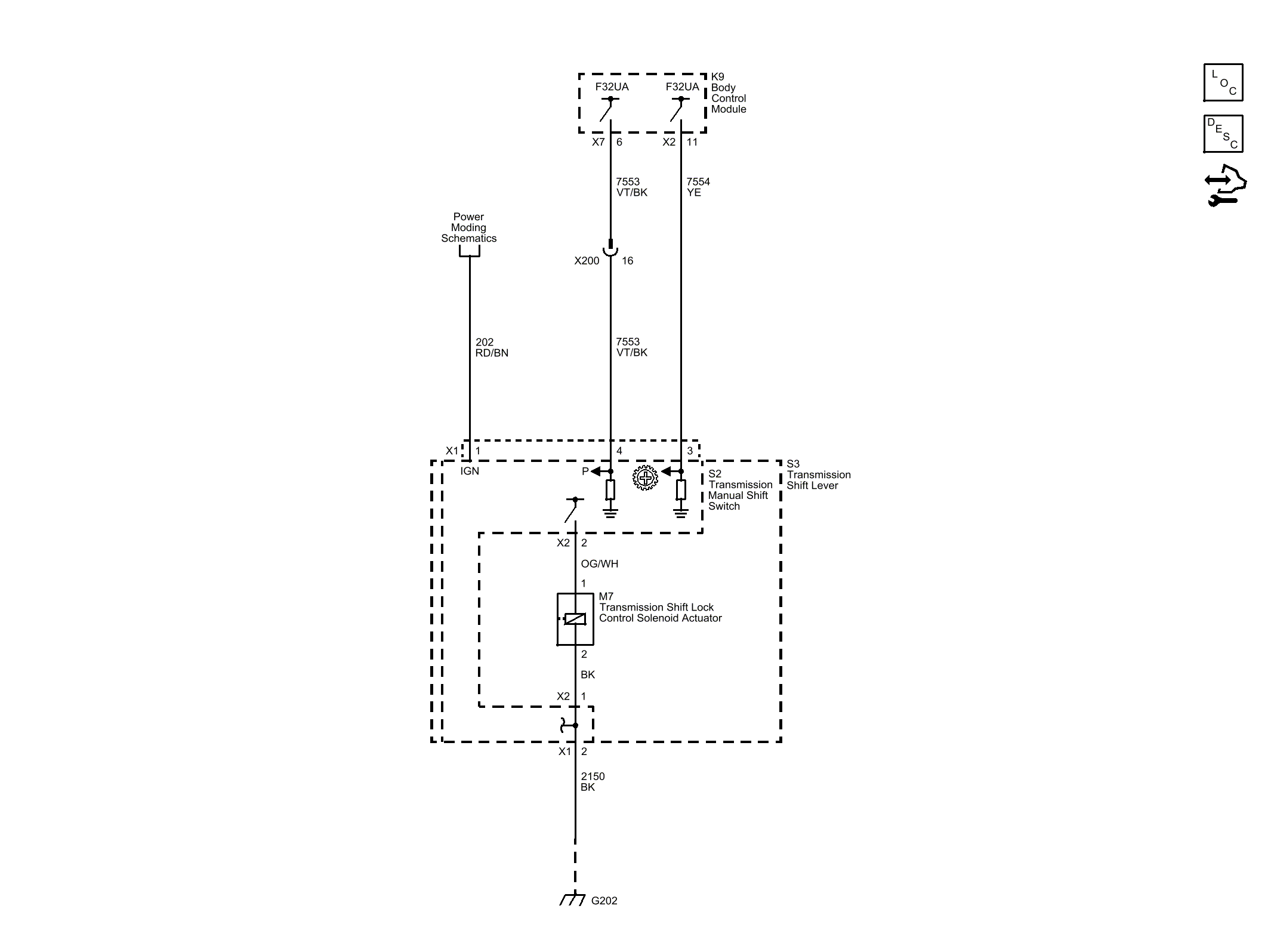

Home › Chevrolet › 2014 › Cruze Diesel › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › MH8 Wiring Schematics
