Keyless Entry (without ATH) Wiring Schematics

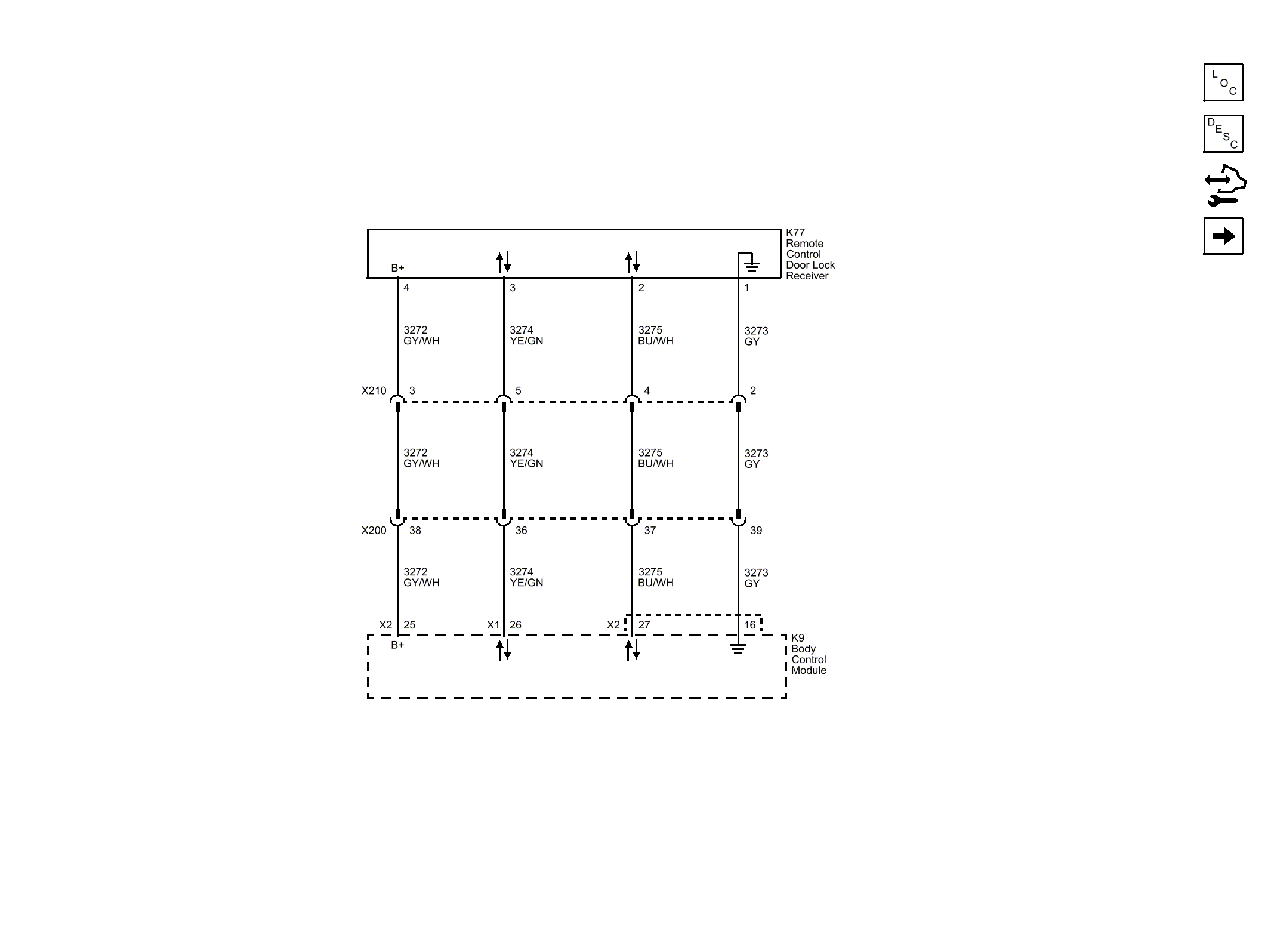

Fig 1: Keyless Entry (without ATH) Wiring Schematic
GM3255793Courtesy of GENERAL MOTORS COMPANY
