Linear Interconnect Network (LIN) Serial Data Wiring Schematics

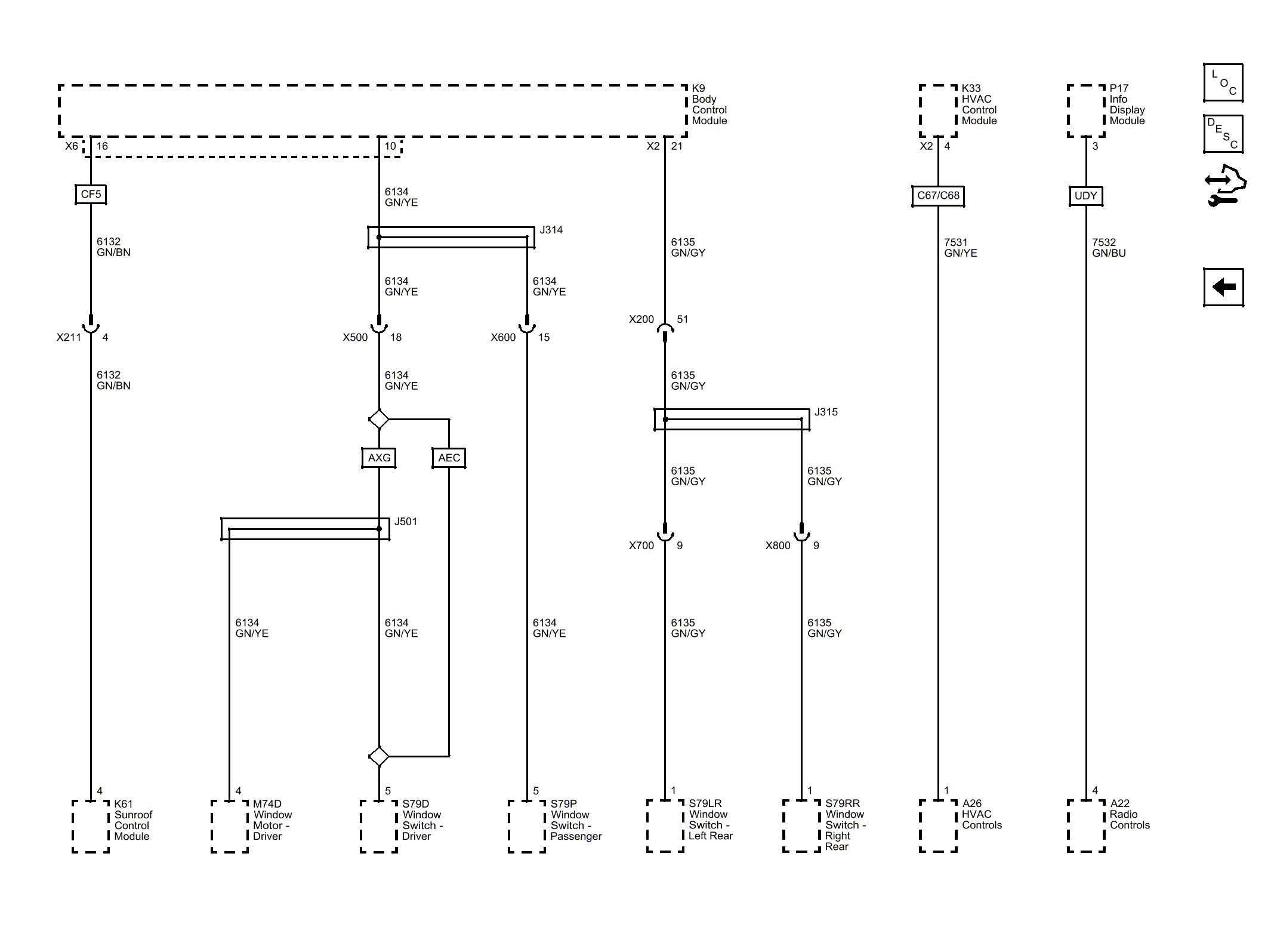

Fig 1: Linear Interconnect Network (LIN) Serial Data Wiring Schematic

GM3250650

Courtesy of GENERAL MOTORS COMPANY
