Driver Information Display Switch Replacement
Driver Information Display Switch Replacement

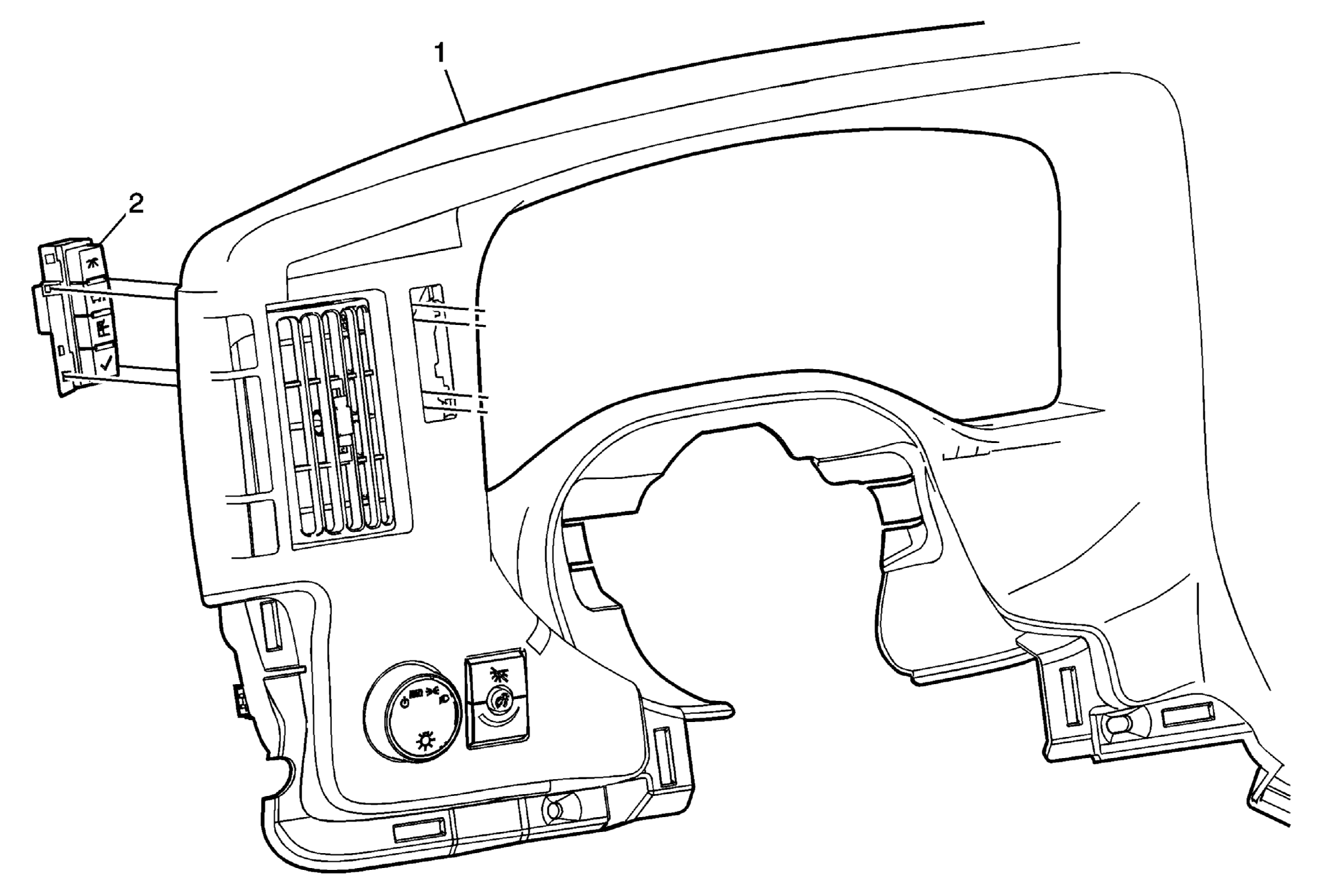

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster Trim Plate Bezel Assembly Refer to Instrument Panel Cluster Trim Plate Bezel Replacement . |
| 2 | Drivers Information Switch Assembly Procedure Release the retaining tabs on the back of the switch and remove the switch from the cluster trim bezel assembly. |
