BCM Inputs and Outputs (1 of 4)

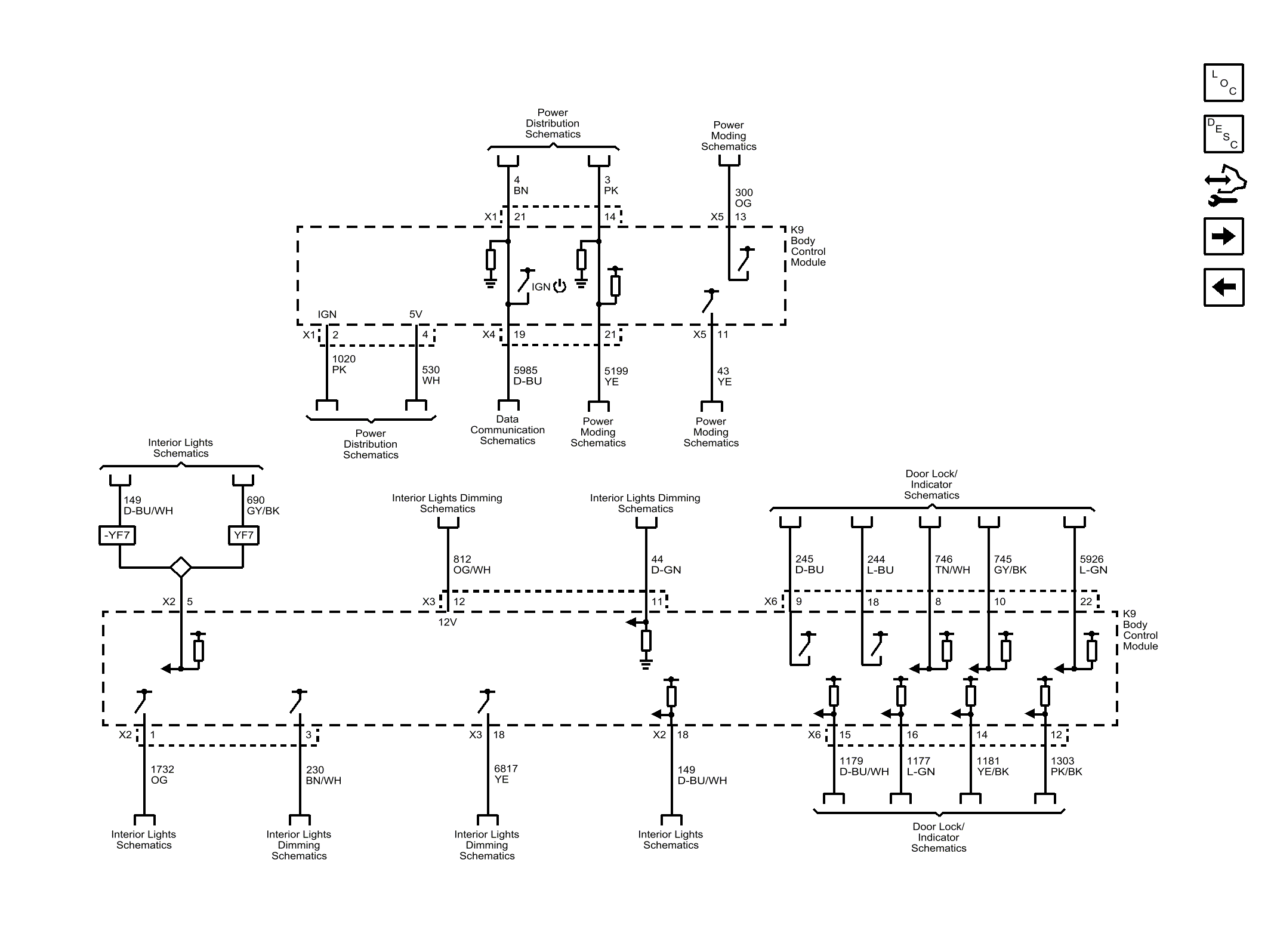

Fig 1: BCM Inputs and Outputs (1 of 4) Wiring Schematics
GM3395564Courtesy of GENERAL MOTORS COMPANY
